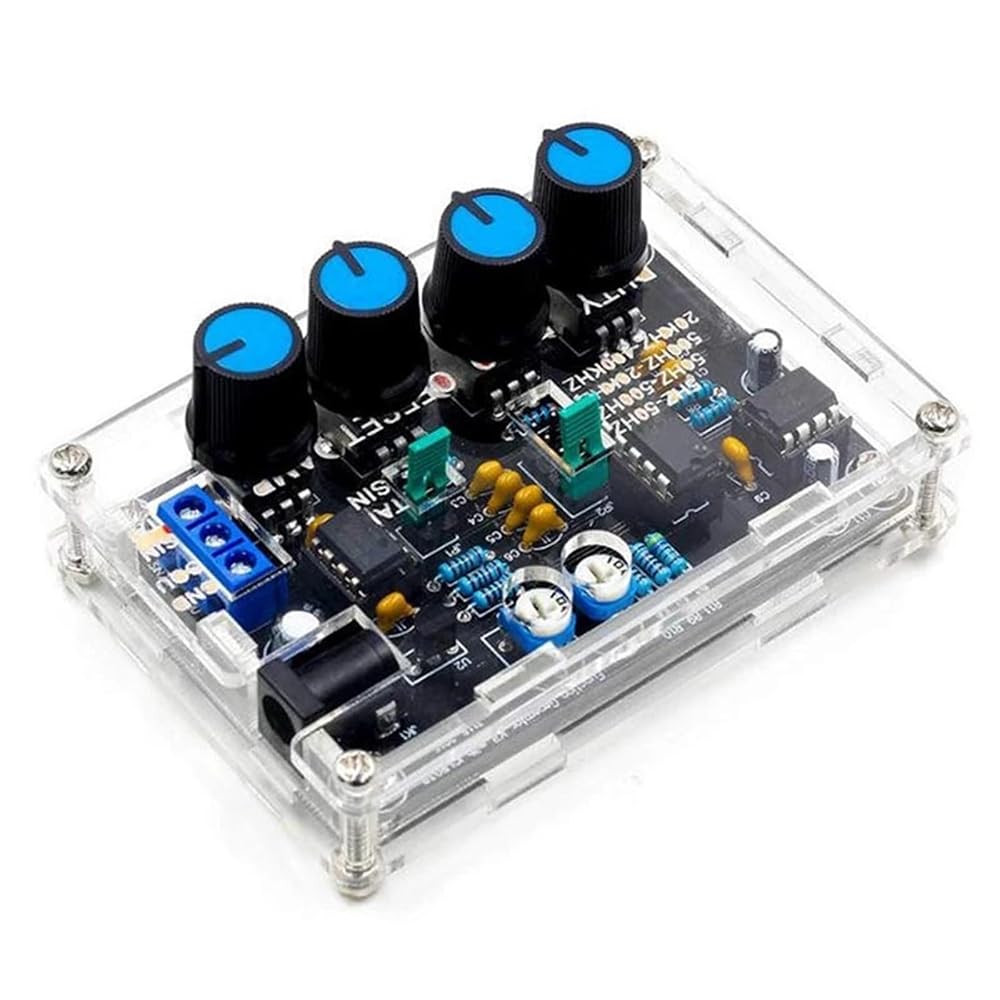

ICL8038 High Precision Adjustable Signal Generator DIY Kit Sinusoidal Triple-Cornered Square Sawtooth Output 5Hz-400Khz

KWD 21
Brand
Generic
Weight
499 g
– 1 +

Special Features

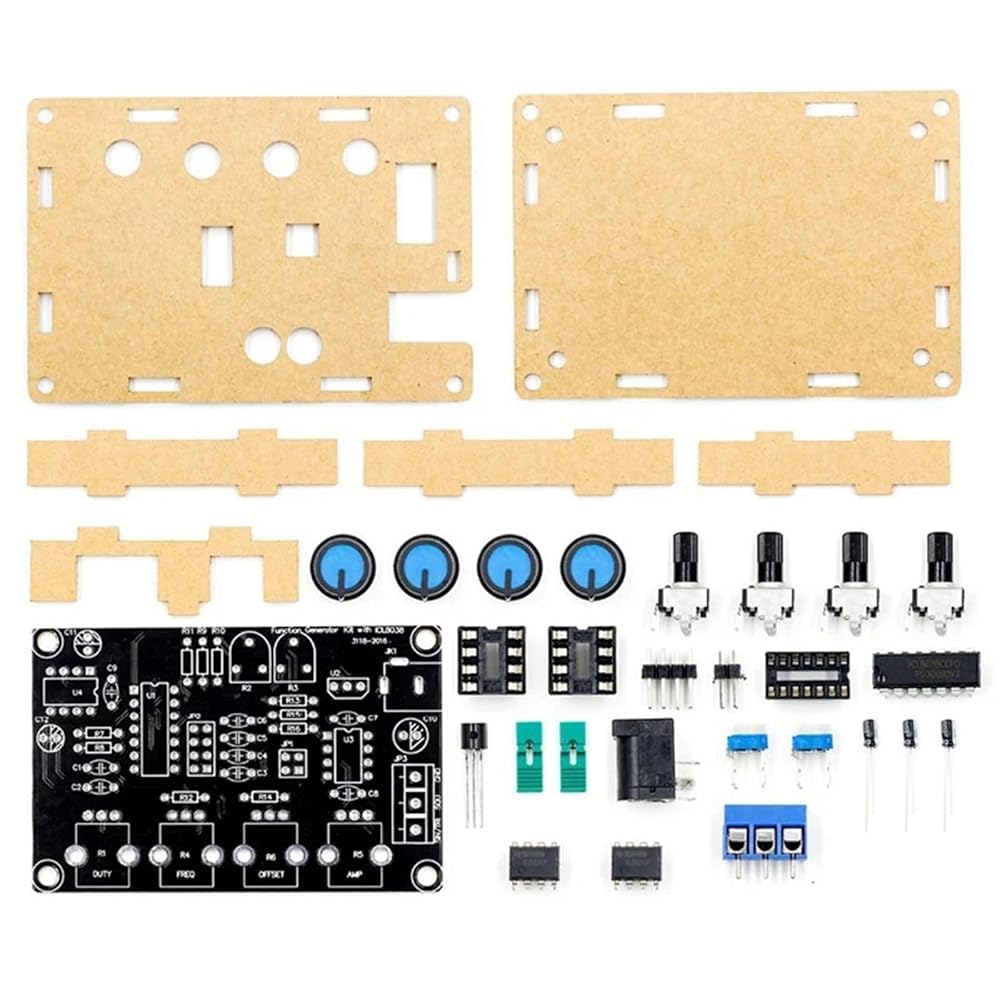

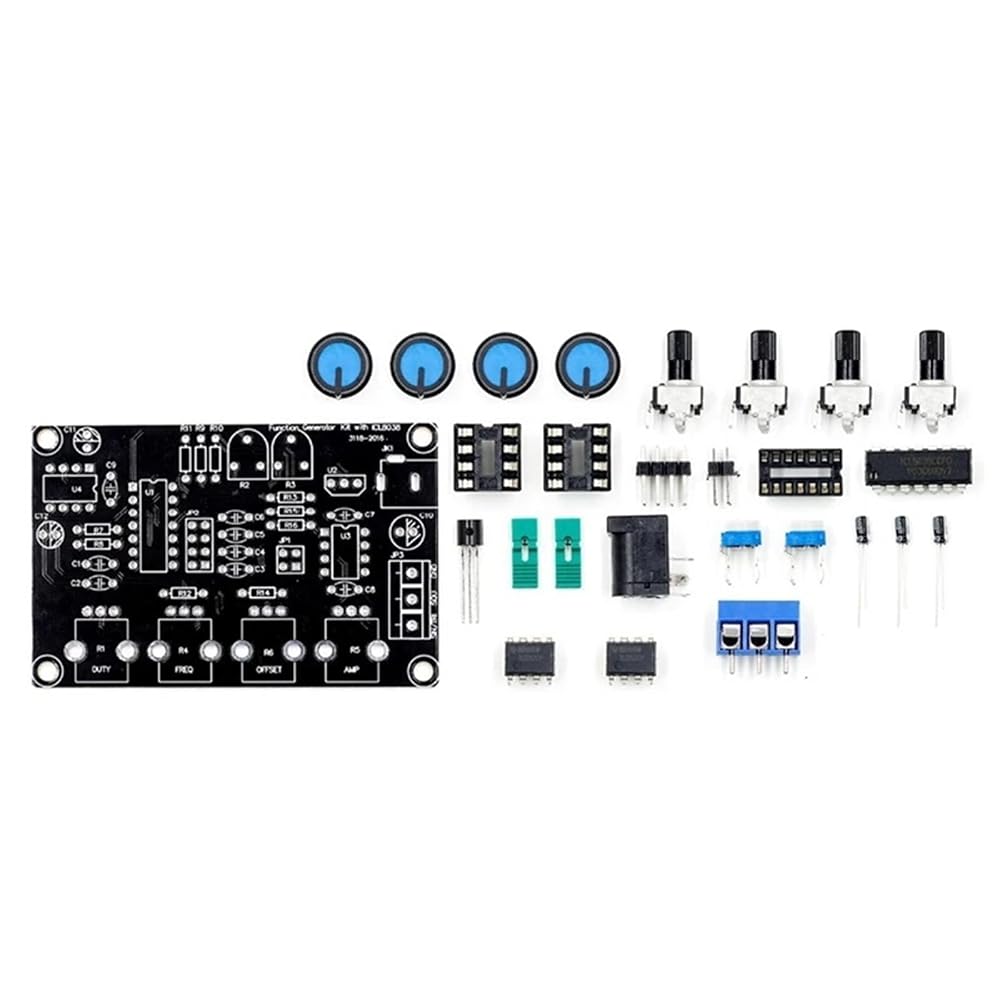

  • The signal generator DIY kit is a professional product that can generate sine wave/Triple-Cornered wave/square wave/positive and negative sawtooth wave. This is a DIY kit for you to solder and install.
  • Using ICL8038 and high-speed operational amplifier, the accuracy is higher. Can output sine/Triple-Cornered/square wave/forward and reverse sawtooth waveforms.
  • Frequency range: 5Hz~400kHz; duty cycle range: 2~95% (adjustable)
  • Supports bi-amping, will not block capacitors, and ensure high and low frequency signal distortion. Adjustable frequency and amplitude.
  • The frequency adjustment has coarse and fine adjustment functions. All are through-hole components, easy to install.

Description

Power supply voltage: 12V~15V

Low distortion true sine wave: 1%

Low temperature drift: 50ppm /°C

Output Triple-Cornered wave linearity: 0.1%

DC bias range: -7.5V~7.5V

Output amplitude range: 0.1V~11VPP (working voltage 12V)

Board size: approx. 7.8 x 5cm / 3.07 x 1.97 inch

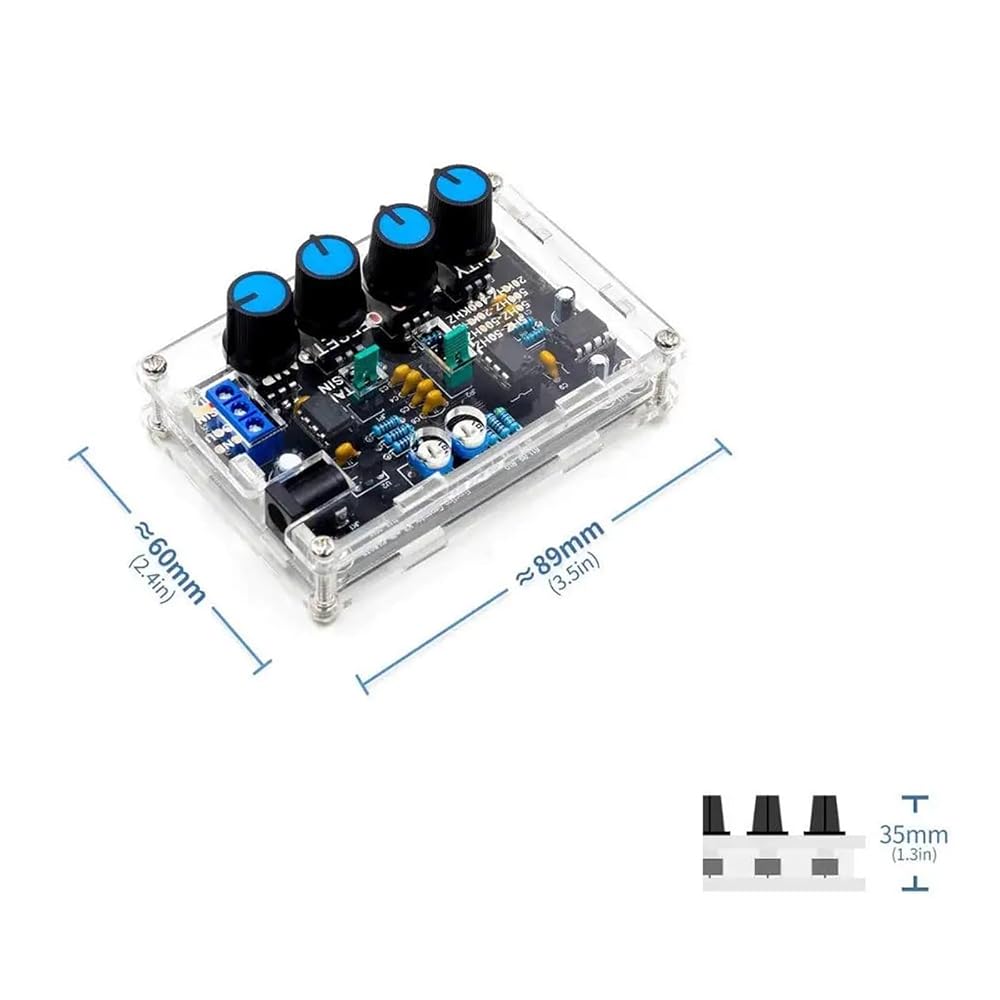

Finished product size: approx. 8.7 x 6 x 1.7cm / 3.43 x 2.36 x 0.67 inch

Material:FR4 + Acrylic
