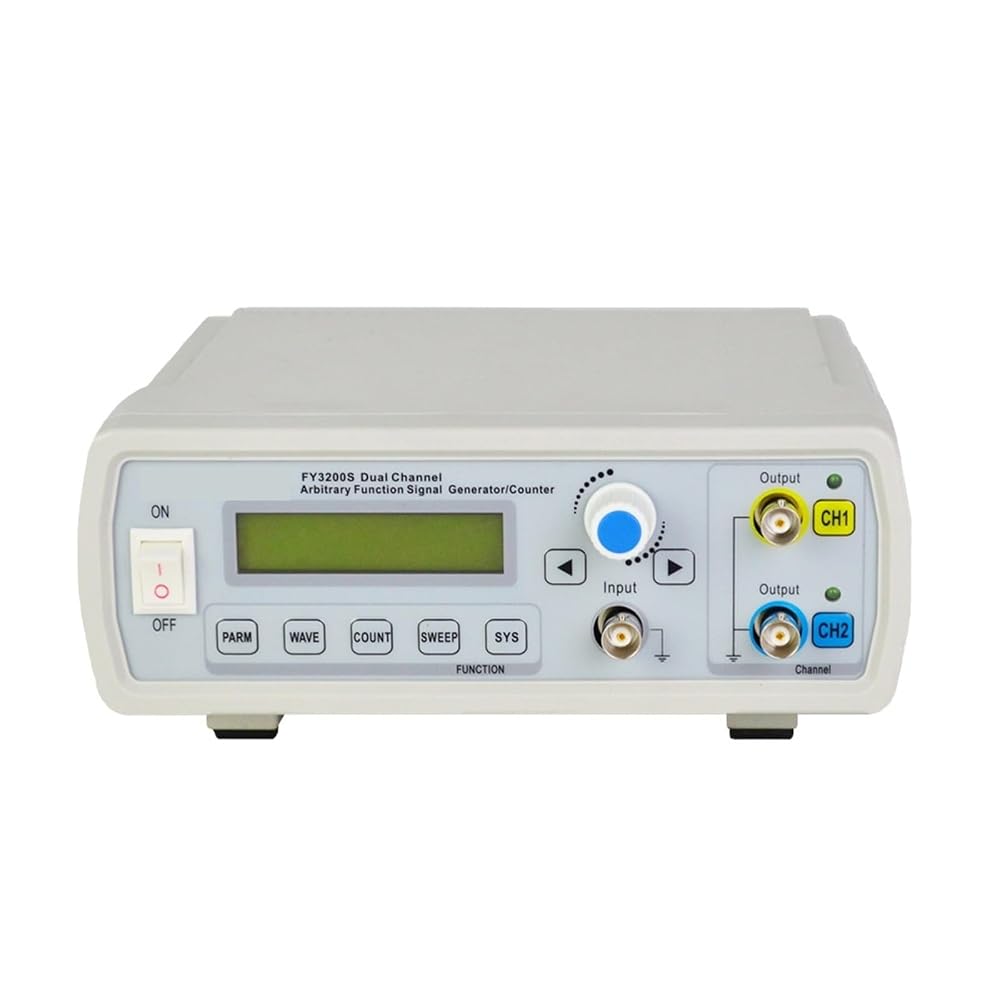

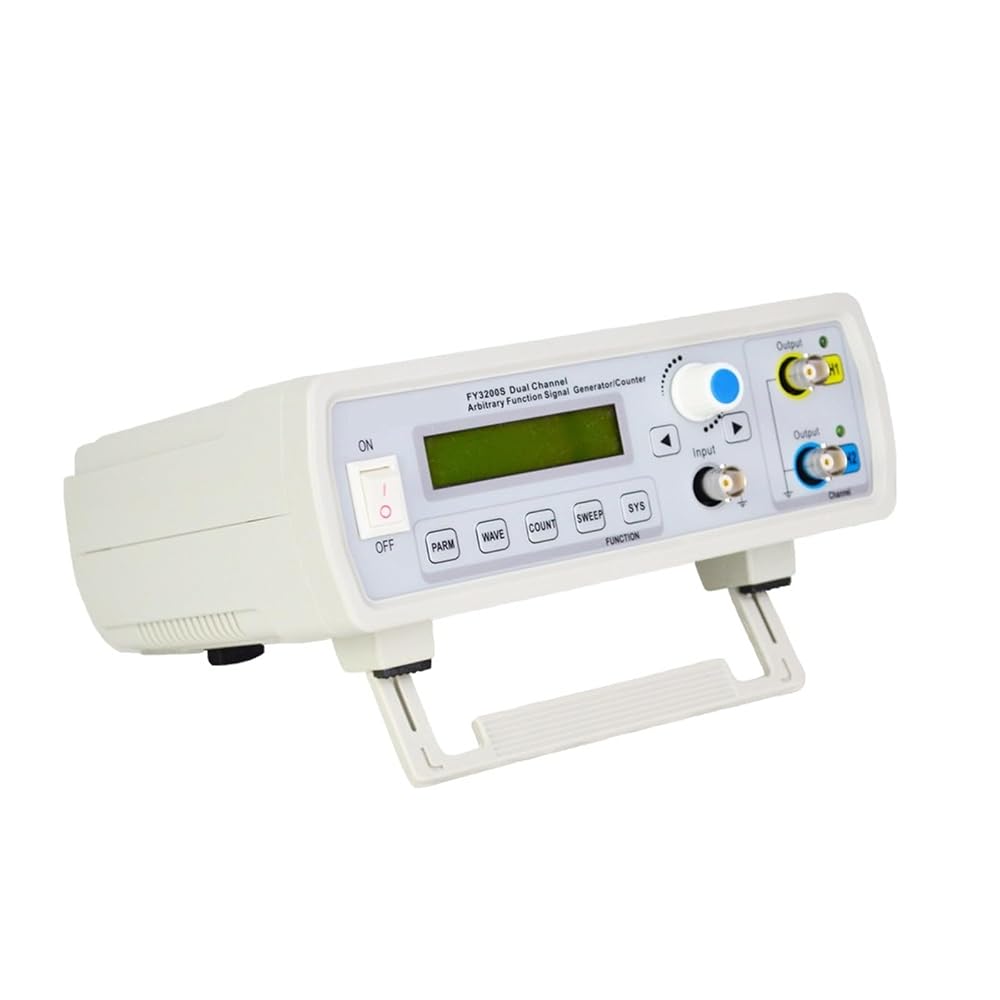

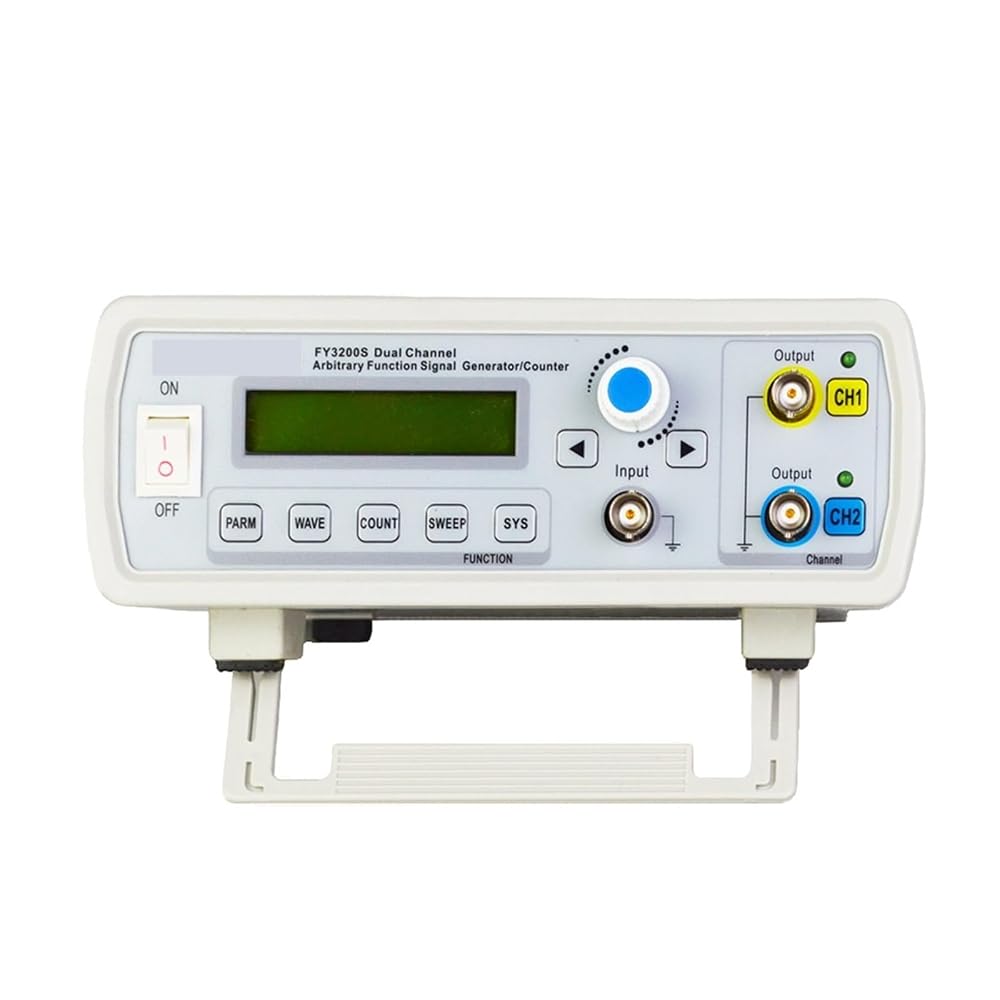

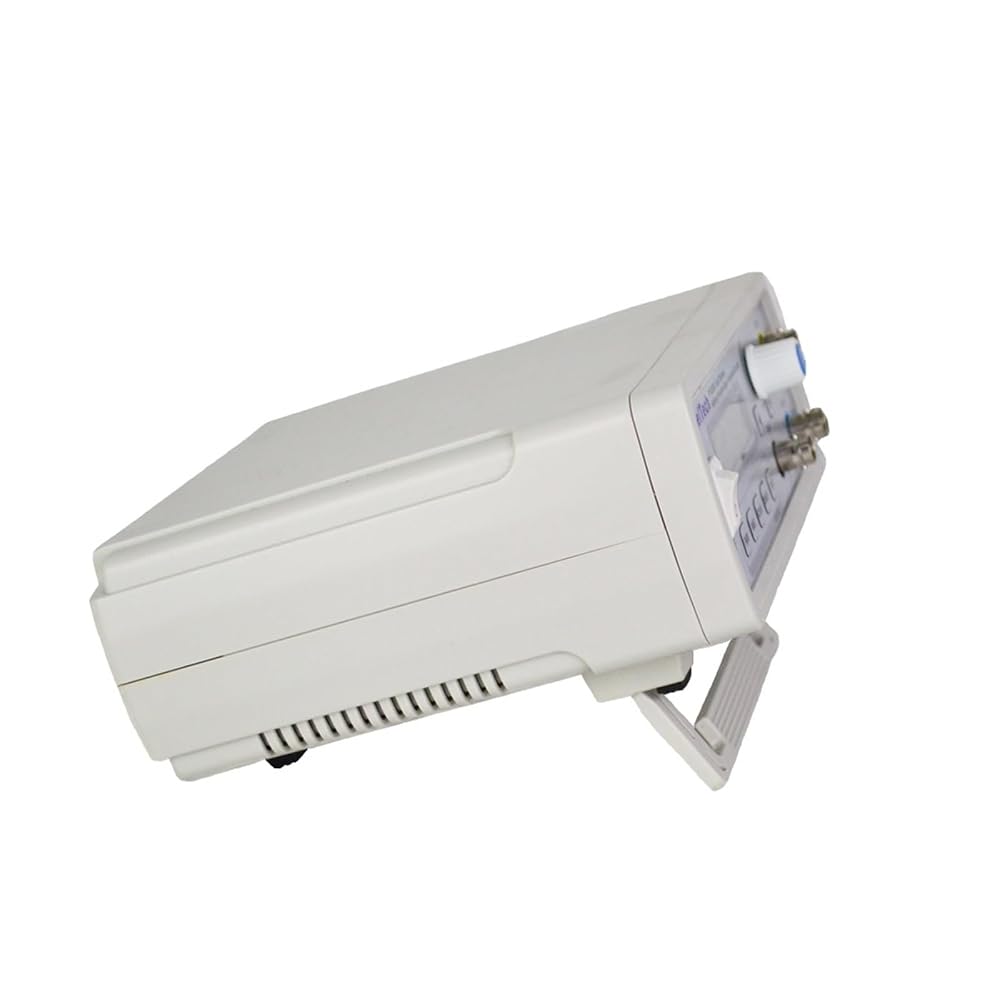

Model：FY3200S-12MHz

Sine：0~12MHz

Square：0~6MHz

Ramp/Triangle：0~6MHz

Pulse：0~6MHz

TTL/CMOS：0~6MHz

Arbitrary wave：0~6MHz

Resolution：0.01Hz(10mHz)

Accuracy：± 5×10-6

Stability：±1×10-6/ 3 Hours

Phase Range：0~359°

Phase Resolution：1°

Waveform Characteristics
Waveforms：Sine, Square, Triangle (Ramp), Arbitrary, Sawtooth, Pulse, Noise, etc.
Waveform Length：2048Points
Sampling Rate：250MSa/s
Vertical Resolution“12 Bits

Sine

Square
Rise/Fall Time：≤20ns
Overshoot：≤7.5%
Duty Cycle：0.1%~99.9%

Sawtooth
Linearity：≥98% (0.01Hz~10kHz)

Output characteristics
Amplitude (50Ω)：10mVpp~20Vpp (No load)
Amplitude Resolution：10mV
Amplitude Stability：±0.5%/ 5 Hours
Amplitude flatness：±5%(10MHz);

Waveform Output
Impedance：50Ω±10%（Typical）
Protection：All channels can work more than 60 seconds when the load is short-circuited.

Dc Offset
Offset Range：±10V
Offset Resolution：0.01V
TTL Output：Dual-channel TTL electric level synchronize with CH1 and CH2. Phase differences are adjustable.
Electrical Level Amplitude：>3Vpp
Fan-out：>20 TTL Load
Rise/Fall Time：≤20ns

CMOS Output
High Electric Level：1V~10V
Rise/Fall Time：≤20ns

Frequency Meter
Range：1Hz~100MHz (Gate Time 1S)

Counter
Range：0-4294967295
Voltage Input Range：2Vpp~20Vpp

Sweep：Only CH1 available
Sweep Type：Linear or Logarithm
Sweep Objects：Frequency
Sweep Time：1S~999S/Step
Sweep Range：Starting position and Finishing position can be set arbitrarily.
