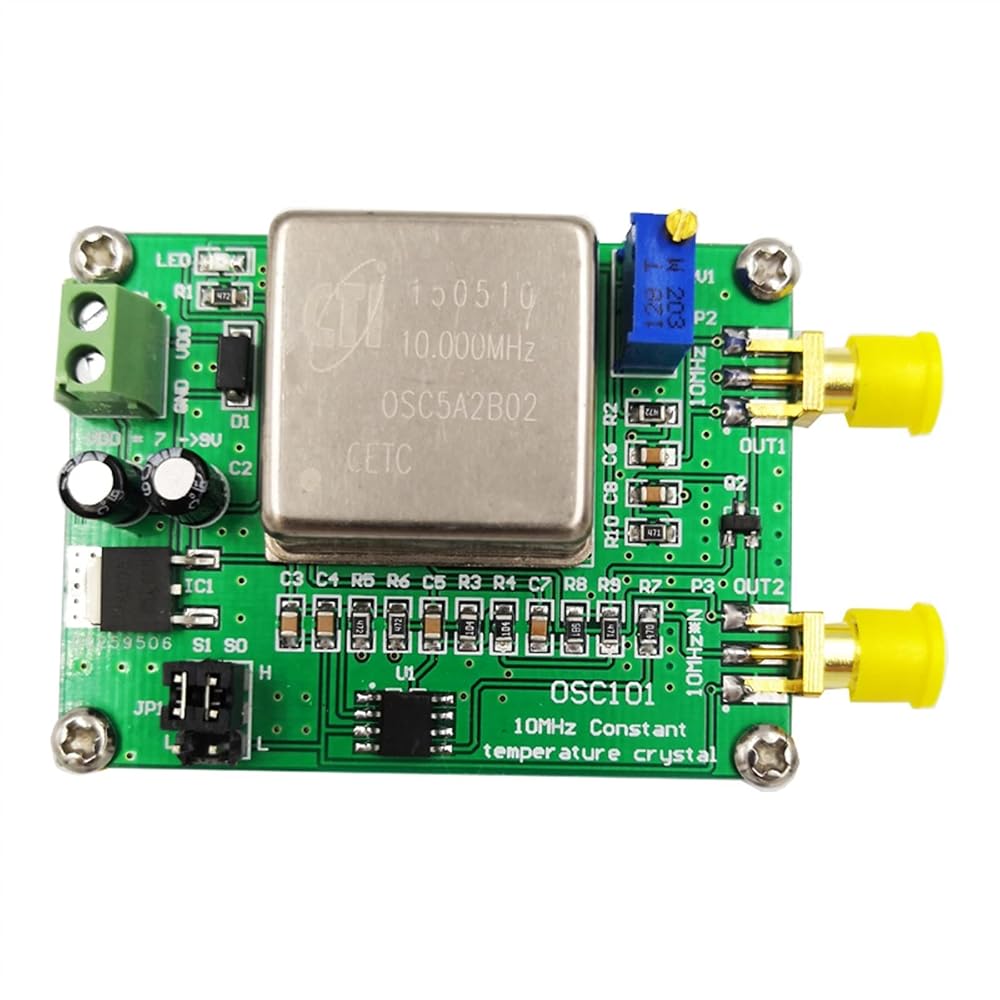

Wiring Terminals

1. P1: Power input interface; (7~9V).

2. P2: 10MHz signal output interface; (10Mhz amplitude: 3Vpp) SMA interface

3. P3: N frequency output interface of 10MHz signal; (N*10Mhz amplitude: 5Vpp) SMA interface

4. RV1: Correct the deviation of the 10Mhz output frequency (+/-2.0ppm)

* Size: 67.5 x 42.5 x 14.0mm (Length x Width x Height); Including connector and OSC module size

Jumper Functions

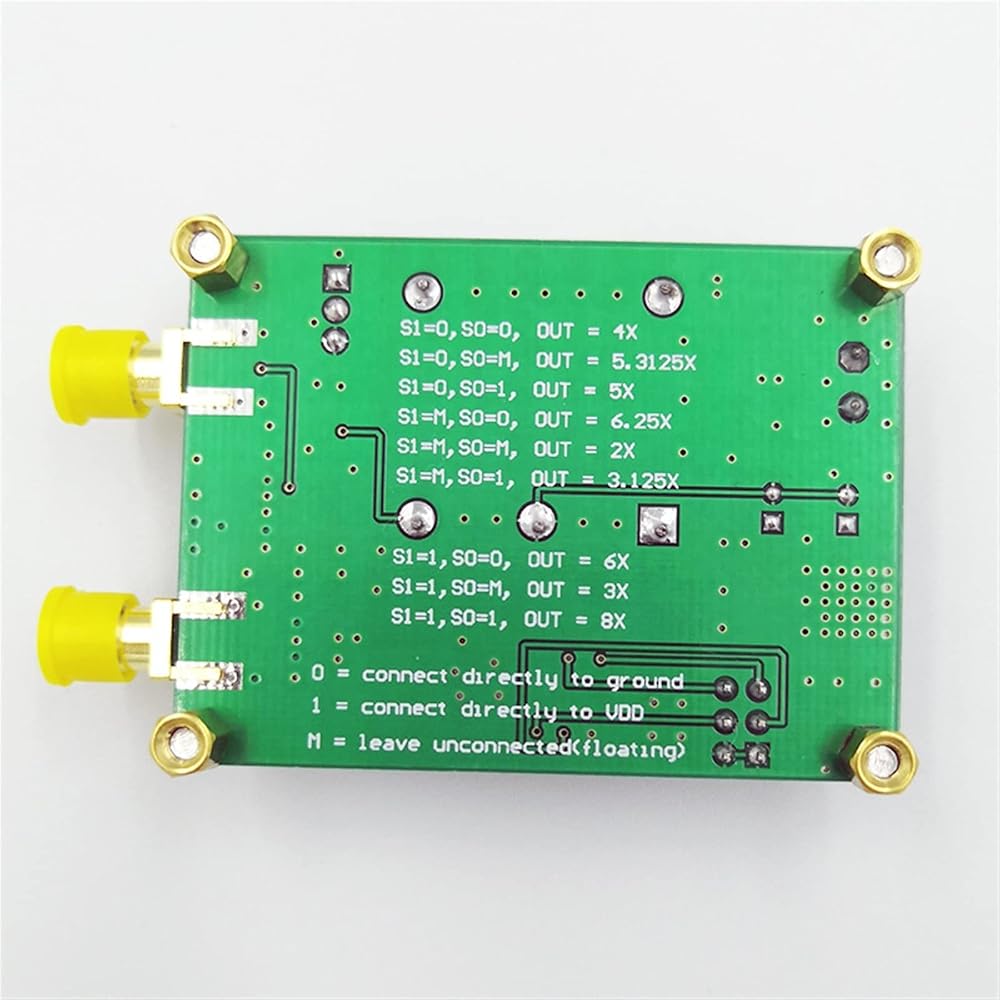

5.JP1 jumper needle selection

S1=0,S0=0, OUT = 4X

S1=0,S0=M, OUT = 5.3125X

S1=0,S0=1, OUT = 5X

S1=M,S0=0, OUT = 6.25X

S1=M,S0=M, OUT = 2X

S1=M,S0=1, OUT = 3.125X

S1=1,S0=0, OUT = 6X

S1=1,S0=M, OUT = 3X

S1=1,S0=1, OUT = 8X

0 = connect directly to ground(L)

1 = connect directly to VDD(H)

M = leave unconnected(floating)
