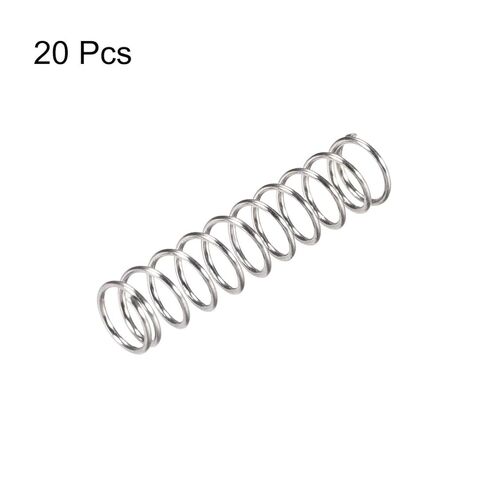

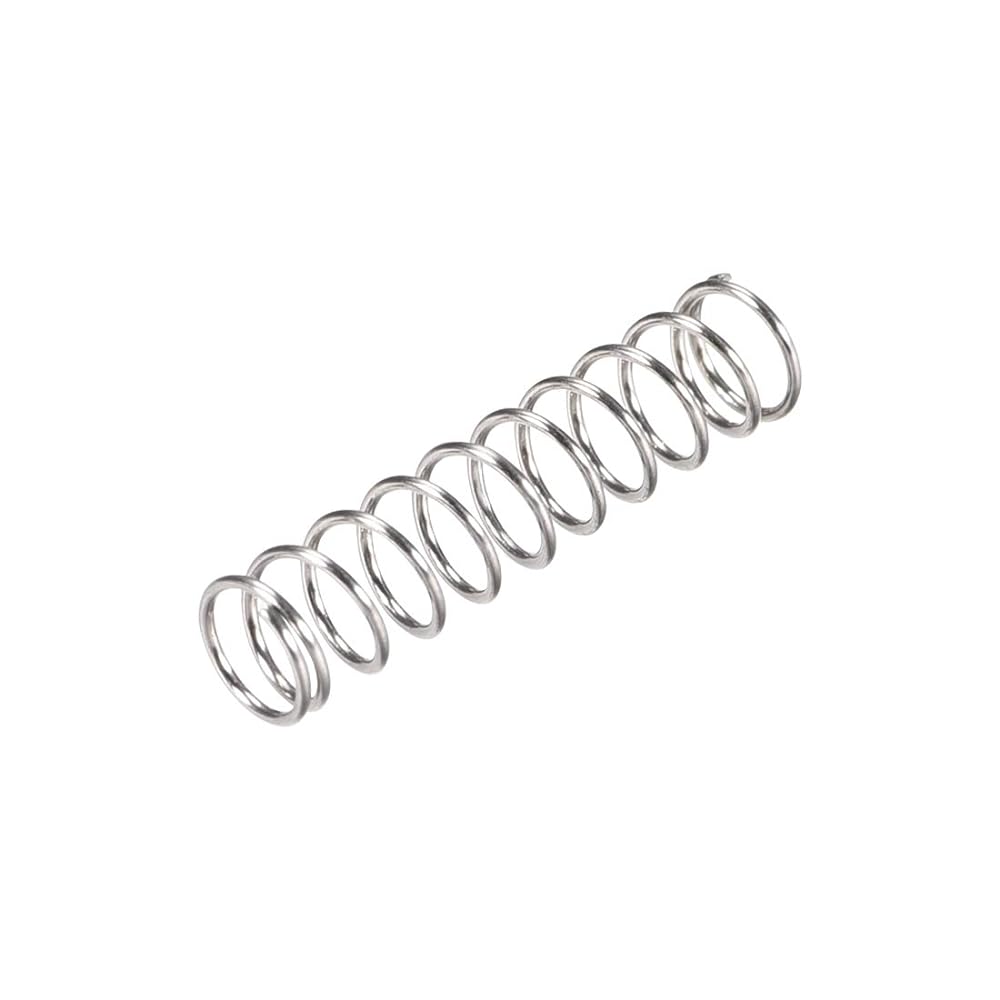

Product: 5mm/0.2inch OD, 0.5mm/0.02inch Wire Diameter,30mm/1.17inch Total Height.
Specifications: 16.5mm/0.64inch Compressed Length,7.8N Load Capacity, 1.73 N/mm Spring Rate.
Material: 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.

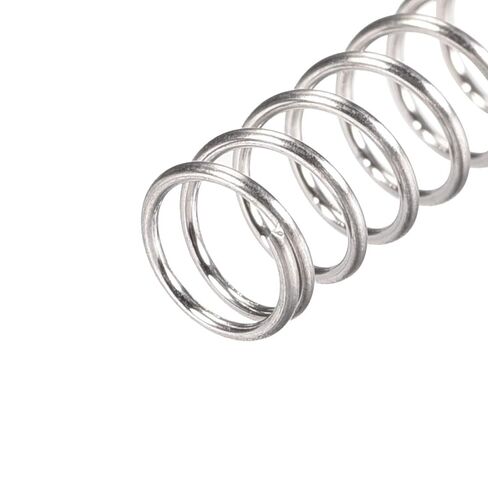

Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.
