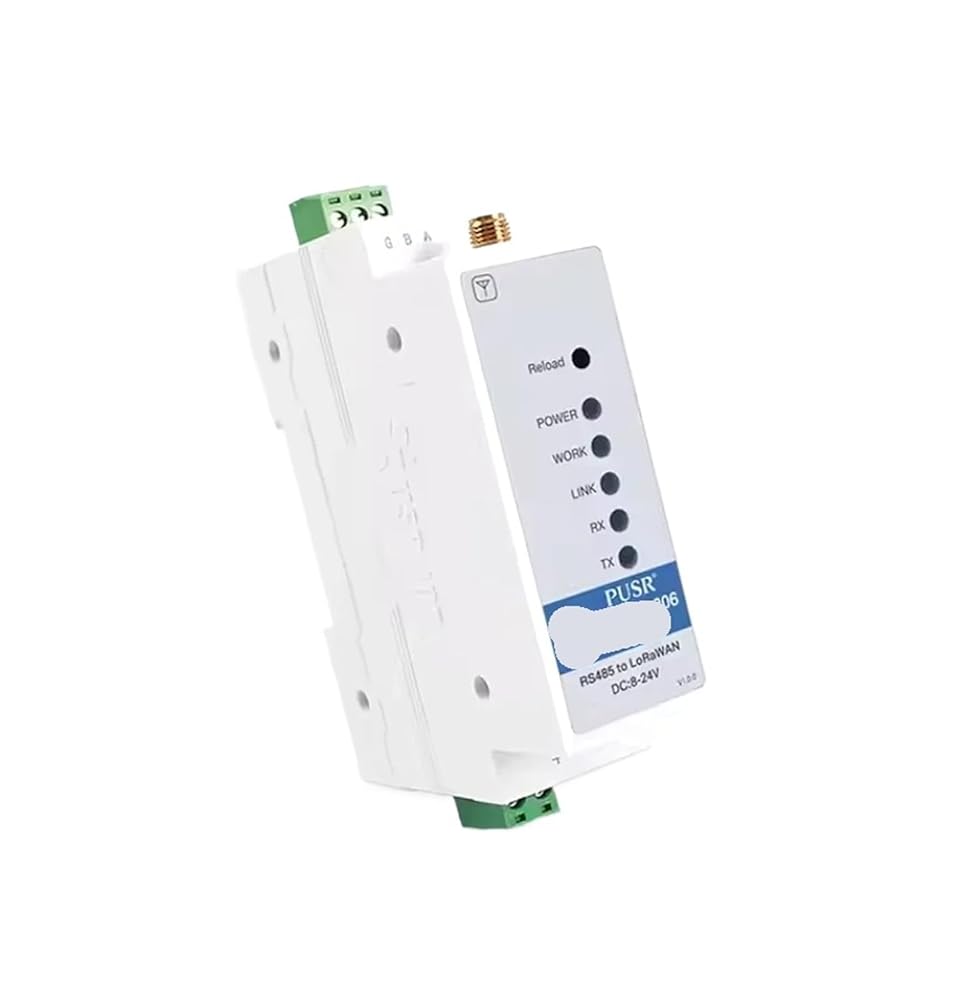

USR-DR206/DR216RS485 to LoRaWAN Converter
USR-DR206/DR216 is a generation of LoRaWAN end node based on the SX126x chip from Semtech. It converts RS485 data to standard LoRaWAN network, simplifying IoT installations and reducing installation/maintenance costs.
USR-DR206/DR216 | RS485 to LoRaWAN Converter
LoRaWAN Protocol, DIN rail mounting, RS485 Interface, Configuration UtilityUSR-DR206/DR216 is the latest RS485 to LoRaWAN converter launched by PUSR. It converts RS485 devices to the LoRaWAN network, simplifying IoT installations and reducing installation/maintenance costs. This device, when used with a LoRaWAN, can achieve long-distance transmission of data from 485 devices. It is designed for professional sensor network applications, such as smart, intelligent metering, smart cities, smart homes, and building automation. USR-DR206 is DC power supply while the USR-DR216 is AC power supply.
Key Features
Standard LoRaWAN Protocol: flexible network accessing, wide connection.
Din rail mounting: Easy to install.
Standard Activation Methods: OTAA, ABP and Hotspot Activation.
Stable and Reliable Data Transmission: LBT, FEC, heartbeat.
Long-range Communication: Ideal for large areas.
Class C Protocol: Efficient data transmission.
Easy Local Configuration: AT commands, config utility.
Basic Function
This device supports the standard LoRaWAN protocol, and with USR-LG280, it can realize the network topology of thousands terminal devices, and realize the data acquisition and control of devices.
DIN Rail Installation
Easy to install, occupy small space, easy to use with other guide rail products.
Standard Activation Methods OTAA and ABP
OTA: Dynamic key access, high security.
ABP: Pre-configured key for fast network access.
Hotspot Activation: Cooperate with OTA access to speed up the access process.
ADR Technology, Dynamic Adjustment to Improve Efficiency
According to the signal quality or network load, dynamically adjust the data communication rate to improve the transmission success rate.
Long-range Communication
Utilizes LoRa technology to achieve long-range communication, making it ideal for applications spread across large areas. The measured distance between LoRaWAN end node and LoRaWAN can reach 5.5KM.
Test conditions: clear weather, open field of view, maximum power 22±0.5dBm, antenna gain 3.5dBi, height greater than 2m.
Stable and Reliable Data Transmission
In order to ensure stable and reliable data transmission, the device integrates FEC(Forward Error Correction), LBT(Listen Before Talk), data retransmission, heartbeat packet.
Easy Local Configuration and Firmware Upgrading
AT command: Suitable for programmable devices, such as PLC, MCU, etc.
Config Utility: Friendly interface, clear parameters, convenient to set.
LoRaWAN Class C Protocol, Efficient Data Transmission
High data throughput, Low latency, high real-time, continuous monitoring of the downlink channel, more effective use of network resources.
Industrial Grade Design, High Reliability
Watchdog: & software dual watchdog Ensuring stable operation without downtime
SurgeEFT Protection: Level 3, protect device against damage caused by instantaneous current interference in circuit, such as stroke, power switch, etc.
ESD Protection: Level 3, prevent electrostatic damage to equipment,such as human electrostatic, dust electrostatic, electric arc, etc.
Wide Operation Temperature: -40 ~ +85.
Wide Power Input: USR-DR206 8-24V DC, USR-DR216 120~240V AC
Dimensions and Details
Dimensions:109.66*64.67*28mm
Serial Port: 1*RS485,3-pin terminal block connector
Antenna Connector: 1*SMA-female
Power Connector: 2-pin terminal block connector
Application
sensors are connected to the USR-DR206 and transmit data to the data control center via a LoRaWAN, enabling rapid long-distance data exchange and control. This setup allows for real-time monitoring and management of and disease, and fertilization, which in turn reduces the need for on-site personnel, enhances the overall management level, increases economic efficiency, and lowers Origin : Mainland China
Certification : CE
