Product introduction

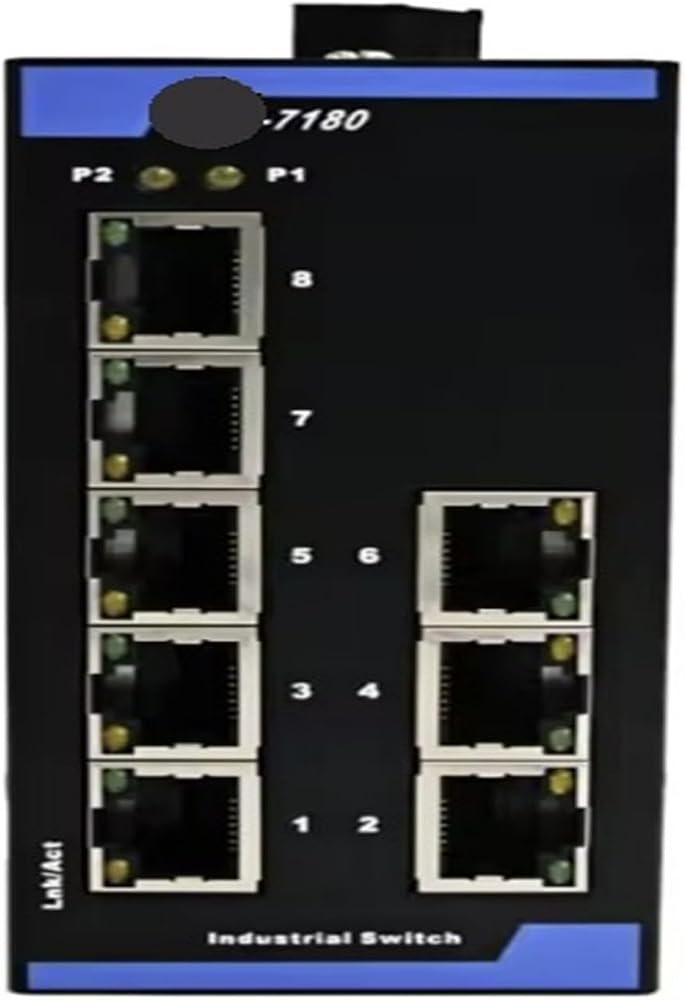

The IDM-7180 industrial Ethernet switch is entry-level industrial 8-port Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The IDM-7180 switch is rated to operate at temperatures ranging from -20 to 70 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, DC24V or AC24V power supply, LED indicators make the and-play IDM-7180 switches easy to use and reliable.
Product features
8-port 10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
10/100Mbps auto negotiation
Supports full-duplex or half-duplex negotiation
AC18~30V or DC9~36V Double redundant input
DIN-rail mounting ability
Industrial Ethernet standard
Product specification
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X)
Ports: 8-ports 10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X
MAC table size: 2 KLED indication: PWR1, PWR2, 1-8 RJ-45 ports link
Voltage input: AC18~30V or DC9~36V, 100mA @ 24V (Max)
Polarity protection: Yes
Installation: 35mm DIN-Rail
Dimension (W x H x D): 115×50×80(mm)
Operating temperature: -20 - 70
Storage temperature: -40 - 85
Relative humidity: 5-95% (non-condensing)
5 port industrial switch
8 port industrial switch
Origin : Mainland China
Certification : CE
