Difference between USR-N540 and USR-N540-H7-4Y
USR-N540: 4-port Serial to IP Converters. USR IOT's serial to IP Converters USR-N540 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network

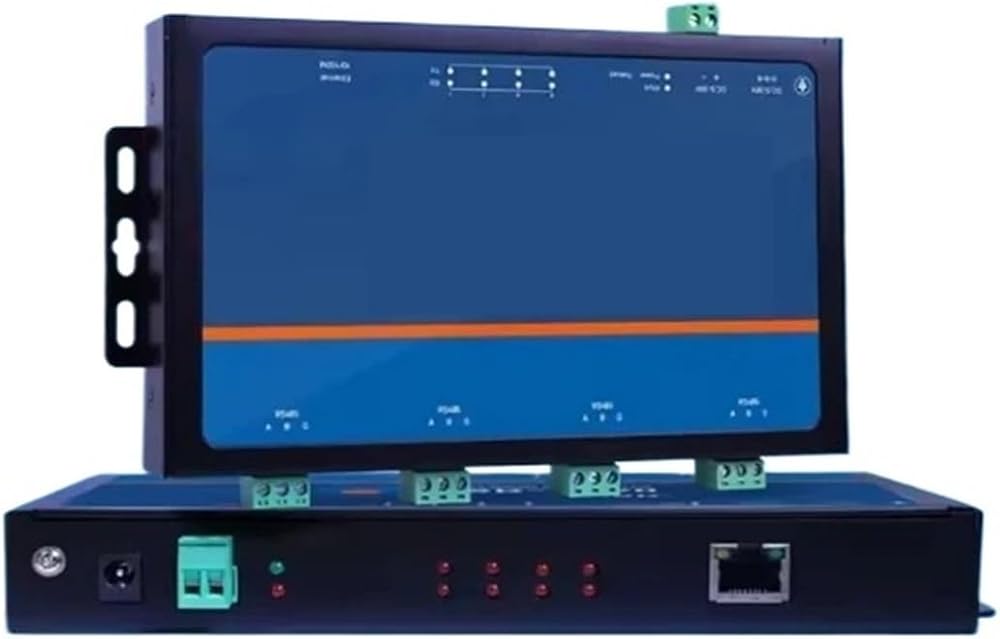

USR-N540-H7-4Y: 4-port RS485 to ethernet Converters. USR IOT's RS485 to ethernet Converters USR-N540 can realize bi-directional transparent transmission between RS485 and network
IntroductionUSR-N540, a Four Serial Device Server, Can Realize Transparent Transmission Between/UDP Data Package And RS232/RS485/RS422 Interface. USR-N540, Based On ARM Processor, Is Of Low Power, Rapid Speed And High Stability. And N540 Is Internally Integrated With /IP Protocol. User Can Easily Realize Embedded Device Networking. FeatureTCP Server,Client,UDP Client,UDP Server And HTTPD Client Work Mode Four Ports Can Work Independently At The Same Time Can Distinguish Which Serial Port Connects To The Device Via Port Number Support Virtual Serial Port And Provide Corresponding Software USR-VCOM Serial Baud Rate From 600bps To 230.4K Bps DNS And DHCP Supported Provide PC /IP Socket Programming Example Such As VB,C++,Delphi,Android And Built-In Webpage;Also Can Customize Webpage For Users The Global MAC Address Bought From IEEE (Begin With D8-B0-4C);User Can Define MAC Address Support Modbus RTU To Modbus Support UDP Broadcast Function Four Serial Ports;Each Serial Can Work As Rs232,Rs485 Or Rs422;DB9 Female;Provide Rs485/Rs422 Converter Four Channel Serial Communication Indicator: TX/RX Support DC Adapter And 5.08-2 Terminal Power Supply Reload Button,One Key To Restore Default RJ45 With Link/Data Indicator Light,Built-In Isolation Transformer And 2 KV Electromagnetic Isolation Application FieldIndustrial Data Transmission, Industrial Automation Security And Protection Monitoring, Public Security Smart Home, Power Control, Environmental Monitoring, Intelligent Door Check On Work Attendance System,POS System, Rice System Building Automation System, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring
Serial Port of Serial Ethernet Converter (Default Port: RS232 DB9 male port)
Data information for USR-N540-H7-4Y as following:
Comparison of and old schemes
Basic Function-transmission
Scheme upgrade to provide better experience
Master chip adopts crotex-M7 core, the main frequenc is up to 400Mhz,
fast processing speed, high stable and reliable performance
Multiple protection
Redundant Power Supply
Wide input voltage DC 5-36V,with reverse polarity protection
Block Diagram
Work mode
Server
The server listens to the specified port and waits for the client to connect,
The data sent by the serial device will be transparently transmitted to all
successfully connected clients through the serial device server.
Client
The serial device server initiates a connection to the specified IP address.
If the connection fails, the serial server will continue to try to reconnect until it succeeds.
If the connection is successful, the server can transparently transmit data with
the serial device in two-way.
UDP mode
The serial device server sends the data of
the serial device to the designated IP network device.
The serial device server monitors the port meanwhile and
forwards all received data to the serial device.
HTTPD Client
Serial port data can be submitted to a specified server by GET or POST method
More features
Modbus
Support modbus RTU and modbus protocol conversion
Support modbus multi-host polling
Virtual Com Software
Product Details
Dimensions :222*122*29 mm
(L*W*H , Including terminals and mounting ears)
Application case
Charging pile application case
N540 can connect the charging pile to the charging intelligent service platform to
realize two-way data transmission between the charging device and the platform.
The billing information and power usage can be viewed remotely through the
platform to facilitate operation and maintenance.
Industrial automation application case
The application of N540 in traditional industrial scenarios can
effectively solve the problem that workers need to monitor equipment on-site,
save labor costs, and increase production efficiency and safety factors.
Data management makes the production process control more refined.
Origin : Mainland China
Certification : CE
