Bearings
Accommodate Combined Loads Solid Structure Wide Application

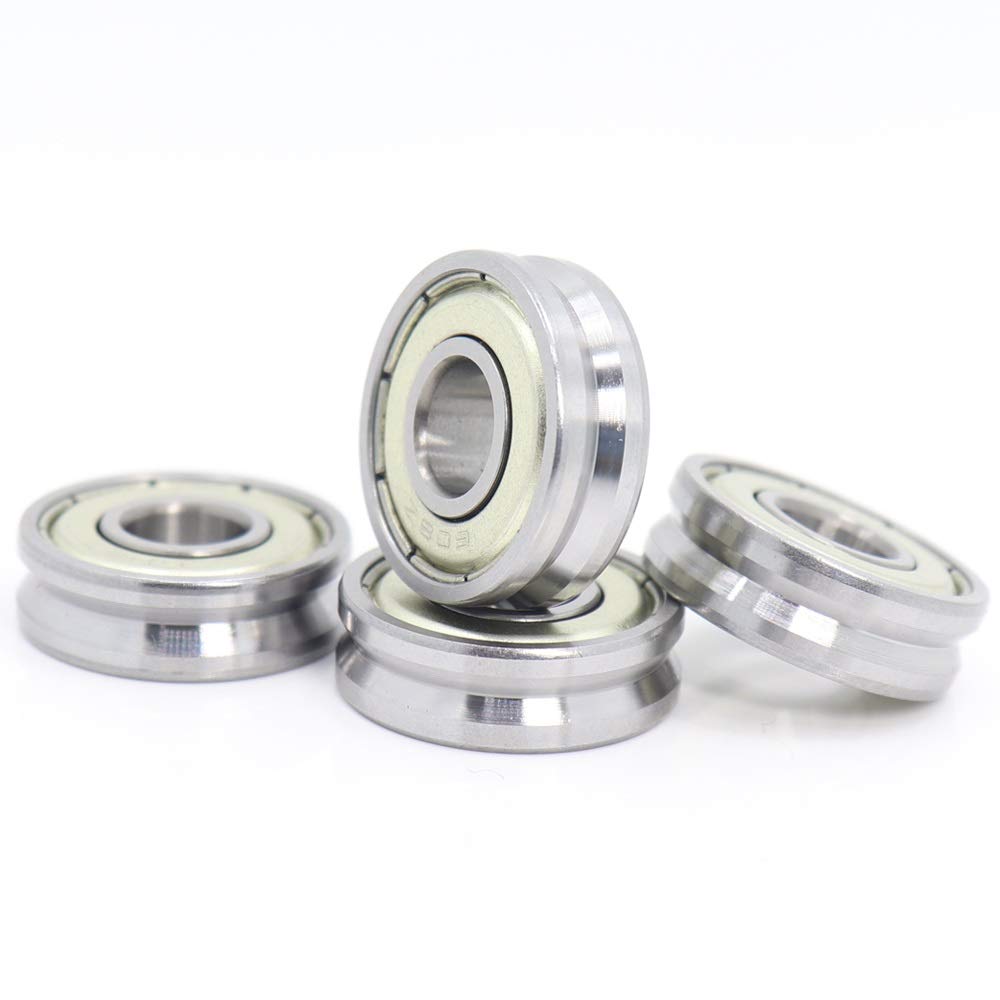

Bearing Type: V Groove Bearing
Model: 082207V3-1
Inner Diameter: 8mm
Outer Diameter: 22mm
Height: 7mm
V Groove Width: 3mm
V Groove Depth: 1mm
Quantity: 4PCS
Bearing Type: V Groove Bearing
Model: 082207V3-1.5
Inner Diameter: 8mm
Outer Diameter: 22mm
Height: 7mm
V Groove Width: 3mm
V Groove Depth: 1.5mm
Quantity: 4PCS
What is V-Groove wheel?
V-Groove wheels are for track or floor operation on inverted angle iron track in production lines.
They are also used with hand or conveyor trucks. V-Groove surface and face are machine finished.
More information
1. Heat treatment:
The surface of the V-guided rail is hardened and the surface hardness is up to HRC60.
The hardness of the V-slot surface of the V-wheel bearings is also hardened on the surface reaching HRC60 and by ensuring the wear resistance of the components this ensures a long service life of the entire V-guided roller linear rail system.
2: Precision processing:
V-bearing V-shaped grooves precision-processed can be precisely combined with V-guided rails to ensure high speed and smoothness of straight-line motion.
3. Assembly process:
V-type roller bearings the use of processing technology is directly processed on the outer ring V-type groove the entire V-type bearing has a good rigidity. At present some factories use another assembly process: procurement of general-purpose bearings the use of over-the-top fit sleeve this design after the assembly of the bearing slot is not easy to control because the collar is added to the back in the case of high-speed and heavy-duty easy to loose situation the use of compartments to prevent the bearing outer ring and the collar between the axial movement.So you can't afford a large axial load.
4. Sealing and lubrication:
With a precise seal design
