مميزات خاصة

Exceptional Accuracy: Enjoy precise measurements with an accuracy of ±(0.03 + 0.01 * L) mm, ensuring you get reliable results every time
Unmatched Repeatability: Count on maximum repeatability of ±0.01 mm for consistent, trustworthy outcomes, making every measurement count
Broad Measurement Range: Easily measure from -1,999,999 to 9,999,999, giving you the flexibility to tackle a wide variety of tasks
Convenient Power Supply: Powered by two AA batteries with a low current consumption of just 500 μA (backlight off), ensuring long-lasting use without frequent replacements
Long life and Weather-Resistant: With an IP40 rating for the display and IP60 for the read head, this device is built to withstand the elements. Plus, it operates efficiently within a working temperature range of 0°C to 60°C

وصف

Parameter
System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)
Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees ℃ -60 degrees ℃
Storage temperature: -10 degrees ℃ -70 degrees ℃

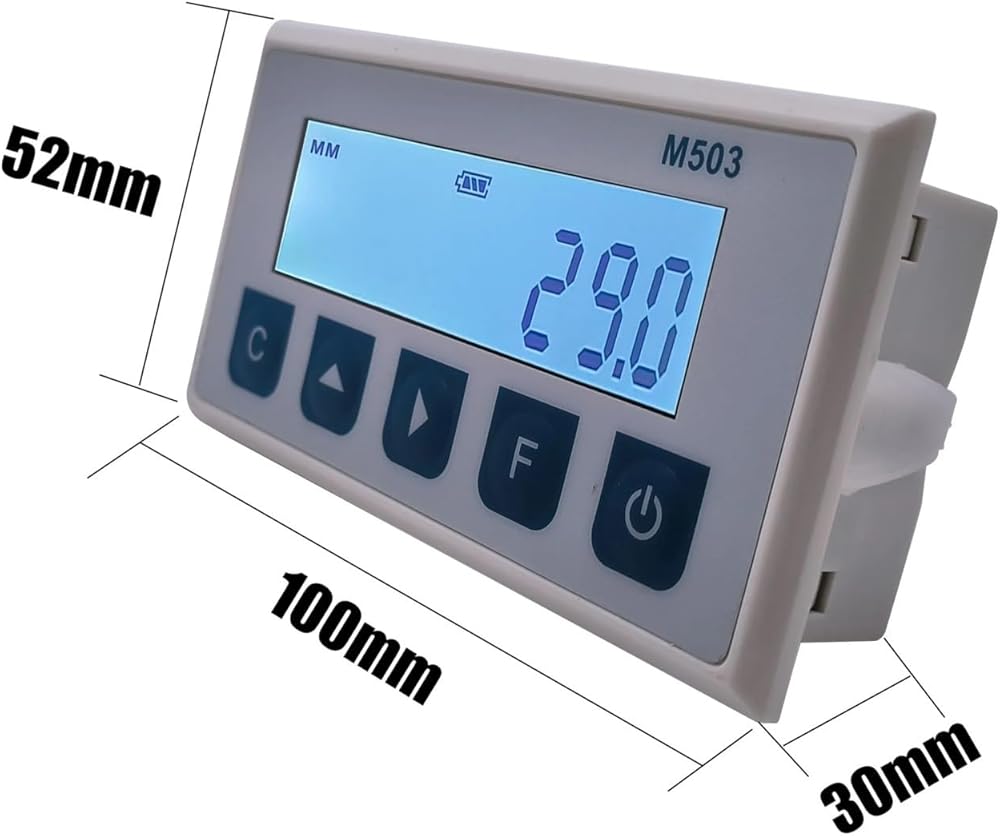

Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1m customizable (2M 3 5M 6M).
e speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: FT50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.150g

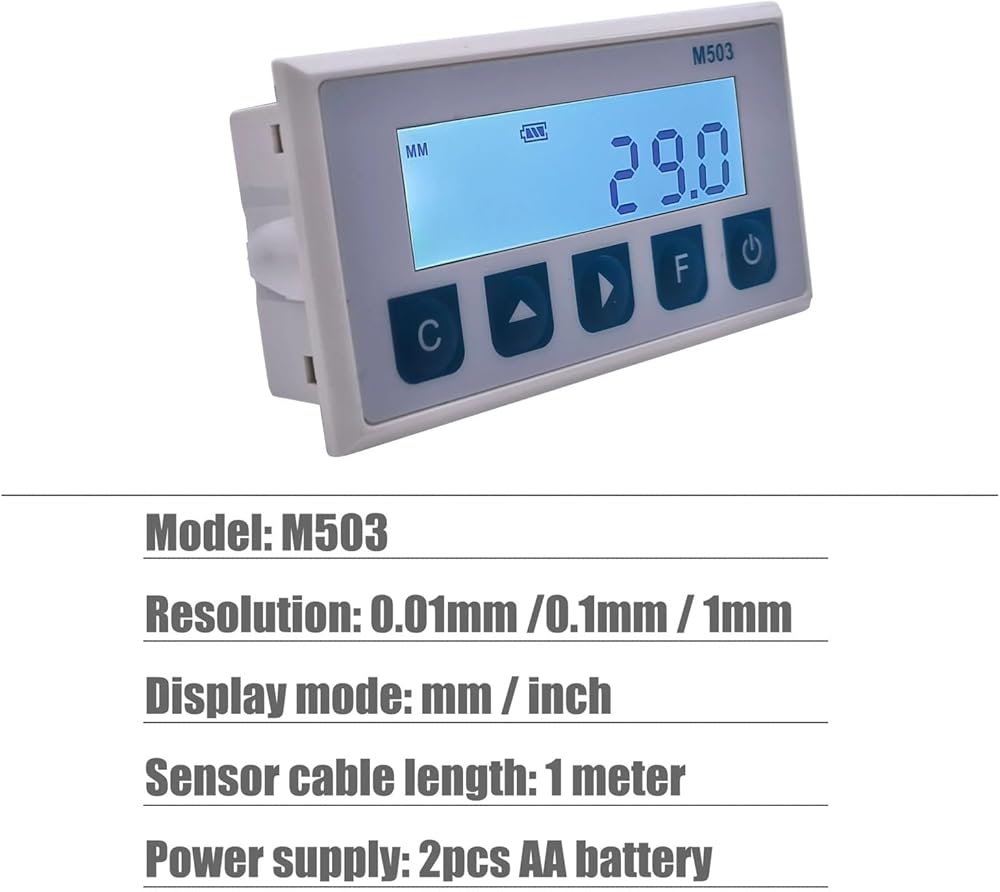

Basic datasheet
Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle

مرحبًا،

بحث

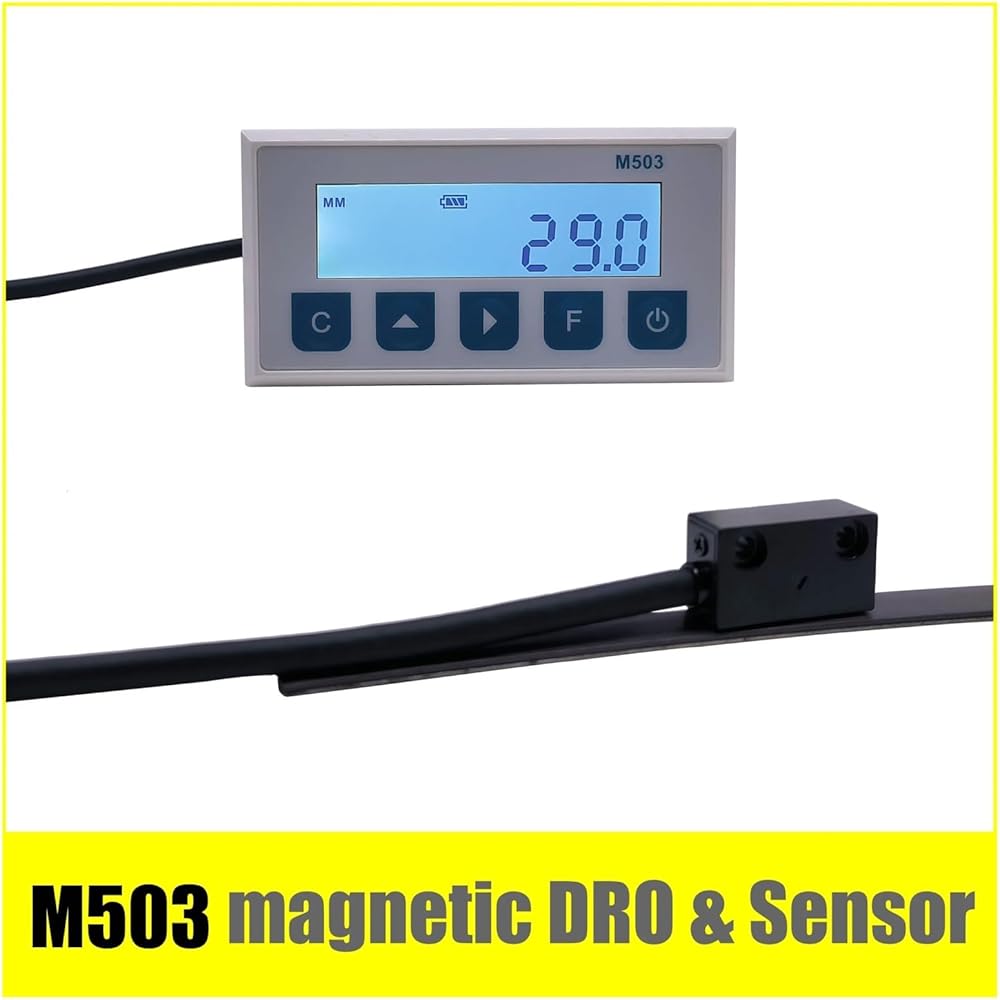

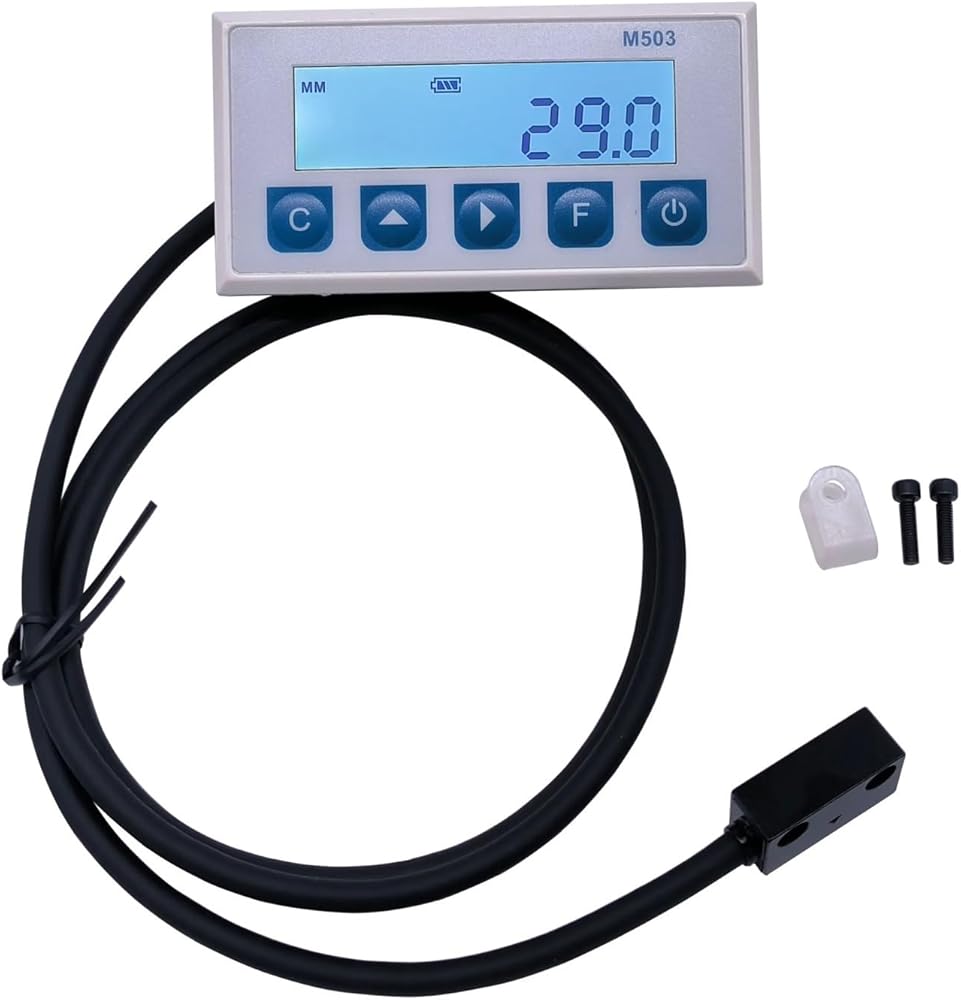

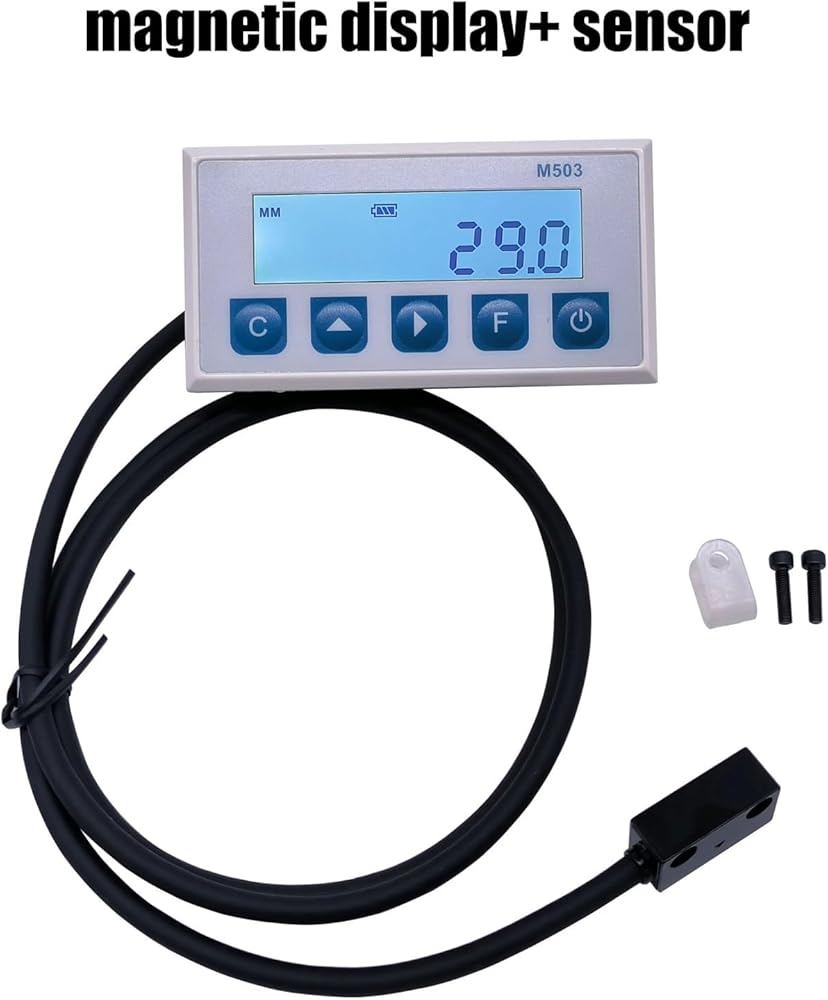

مقياس خطي، مقياس مغناطيسي، شاشة DRO، نظام قياس مغناطيسي مدمج، شريط مغناطيسي مع ملف تعريف حزام البقع، مستشعر عرض M503
