Compact Design: The slim profile (18mm x 20mm) of the KA-300 linear scale makes it for small machine tools, saving space without compromising performance
Precision Measurement: With a resolution of 0.005mm, this linear scale sensor ensures highly accurate readings for precision machining tasks
Versatile Travel Length: Suitable for a range of applications with a travel/working length of 470mm to 1020mm, accommodating various machine requirements
Reliable Output: The TTL output signal guarantees stable performance and easy integration with digital readouts and controllers
User-Friendly Setup: Comes with essential accessories including a scale cover, mounting bracket, and screw bag, along with a generous 3-meter cable for flexible installation
وصف
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um(0.001mm)
Output signal: TTL
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Package Content

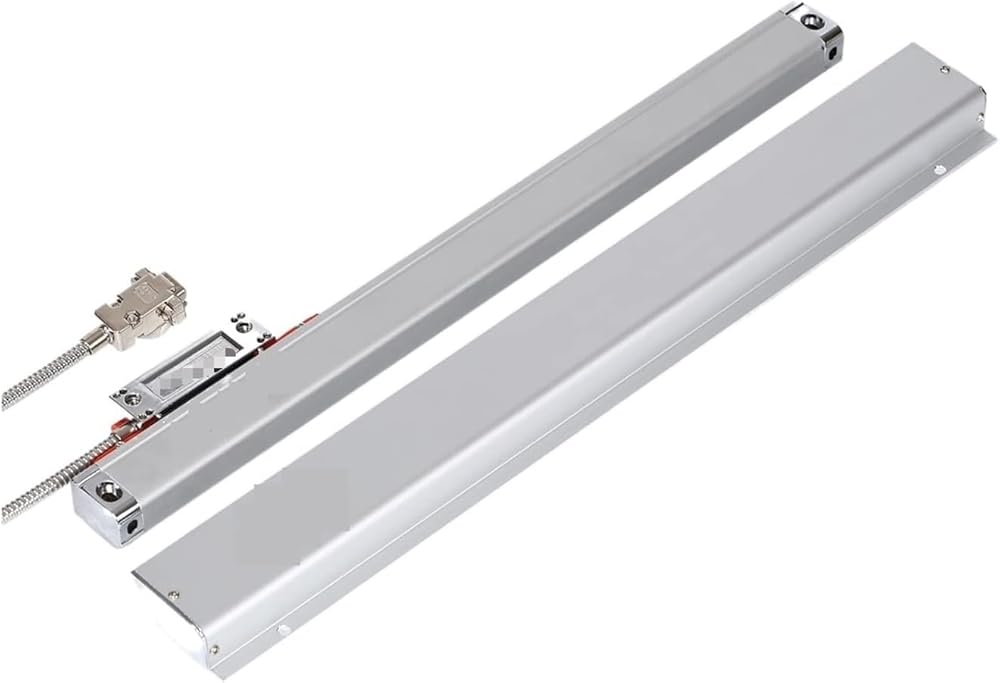

-1pcs KA-300 scale
-1pcs scale cover
-1pcs mounting bracket
-1pcs screw bag
