مميزات خاصة

Compact and Versatile : Features a single row digital tube with multi-parameter capabilities, for space-constrained applications
Data Integrity and Ease of Use: Retains current data after power-off and includes an initial value reset function ("reset") for easy calibration and use
Flexible Measurement Options: Offers options for millimeters/inches and straight line/angle measurements, along with multi-segment linear compensation for different measurement needs
Customizable Communication: Supports customized 485 communication with RS485 ModBus RTU protocol, ensuring robust data transmission and seamless integration into existing systems
and Reliable: With a resolution range from 0.001 to 0.1mm, IP40 waterproof grade, and max consumption current of 65mA, this sensor is built for high performance and reliability in various industrial environments

وصف

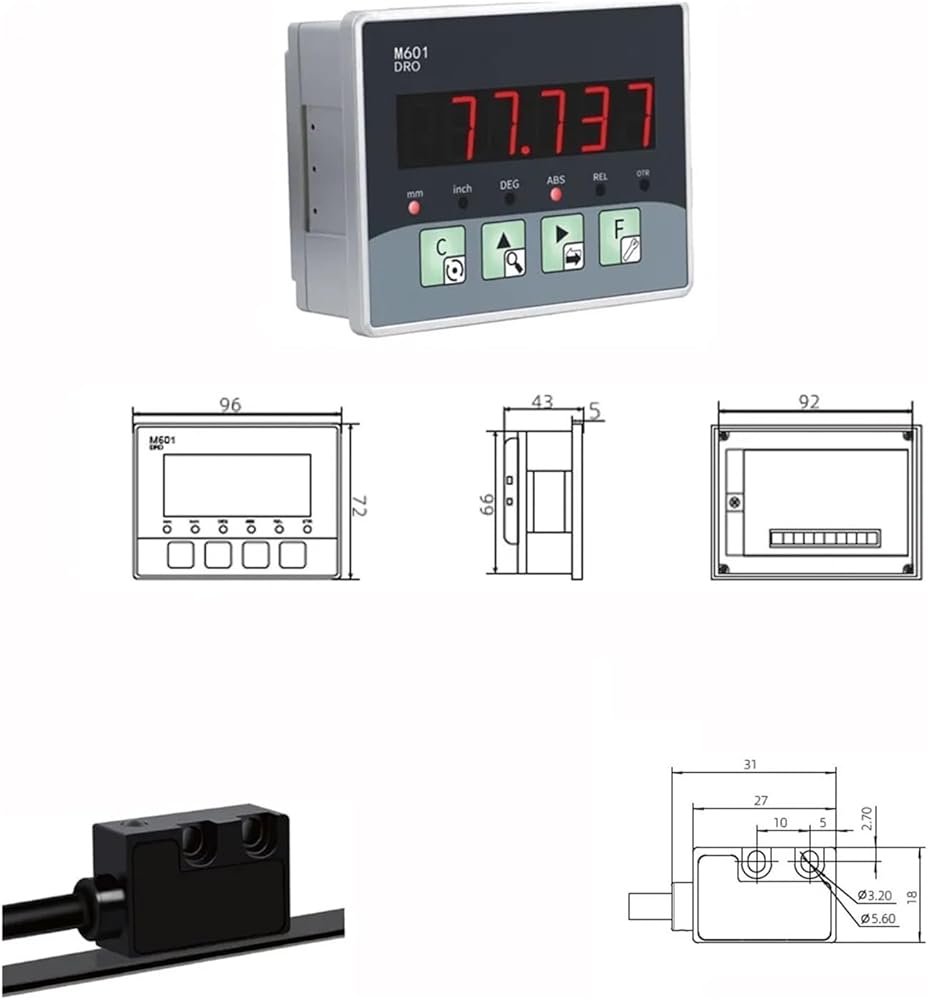

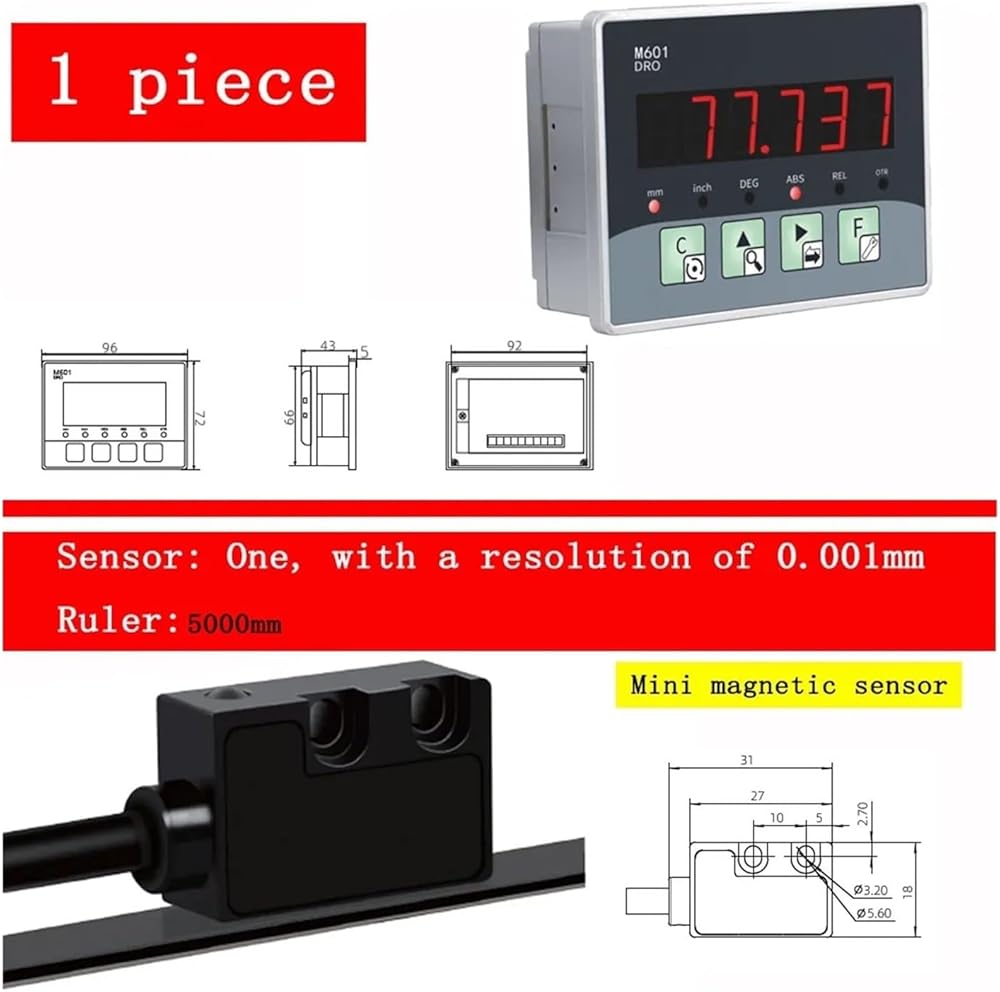

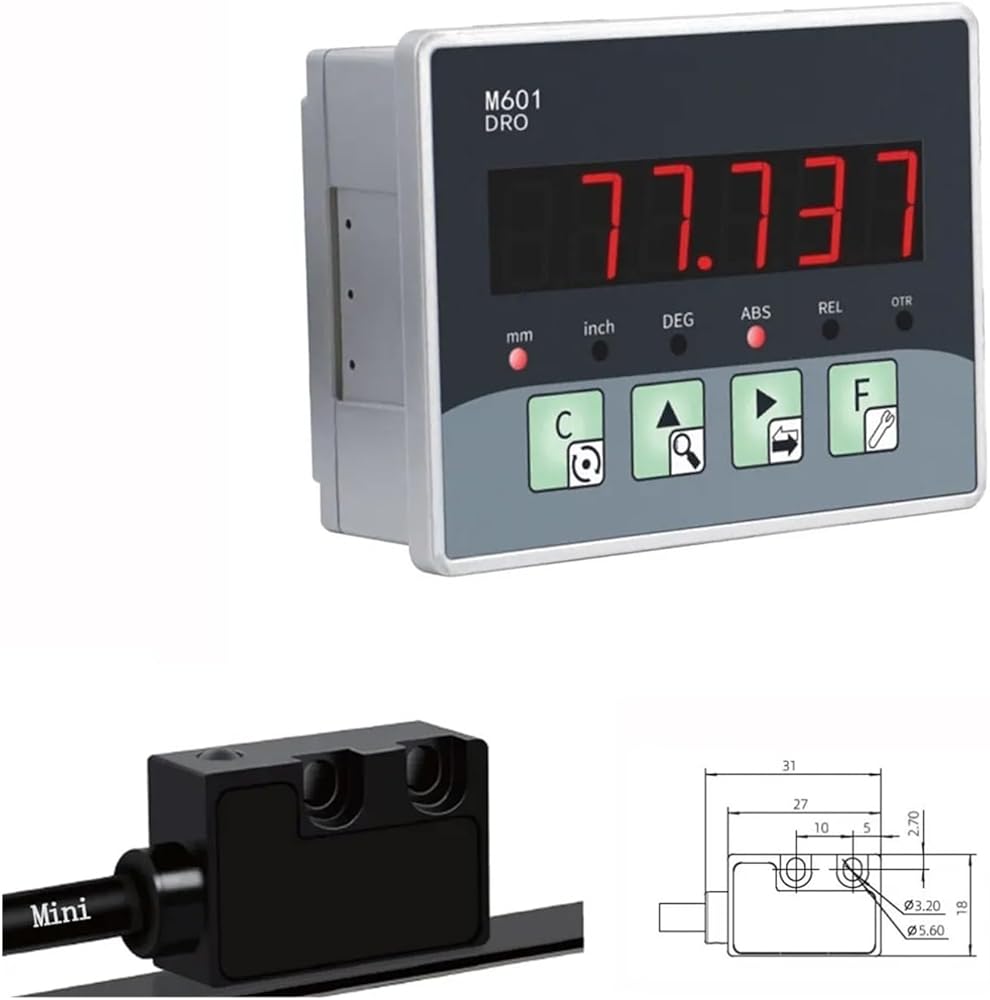

Note: This sensor is in micro mini size

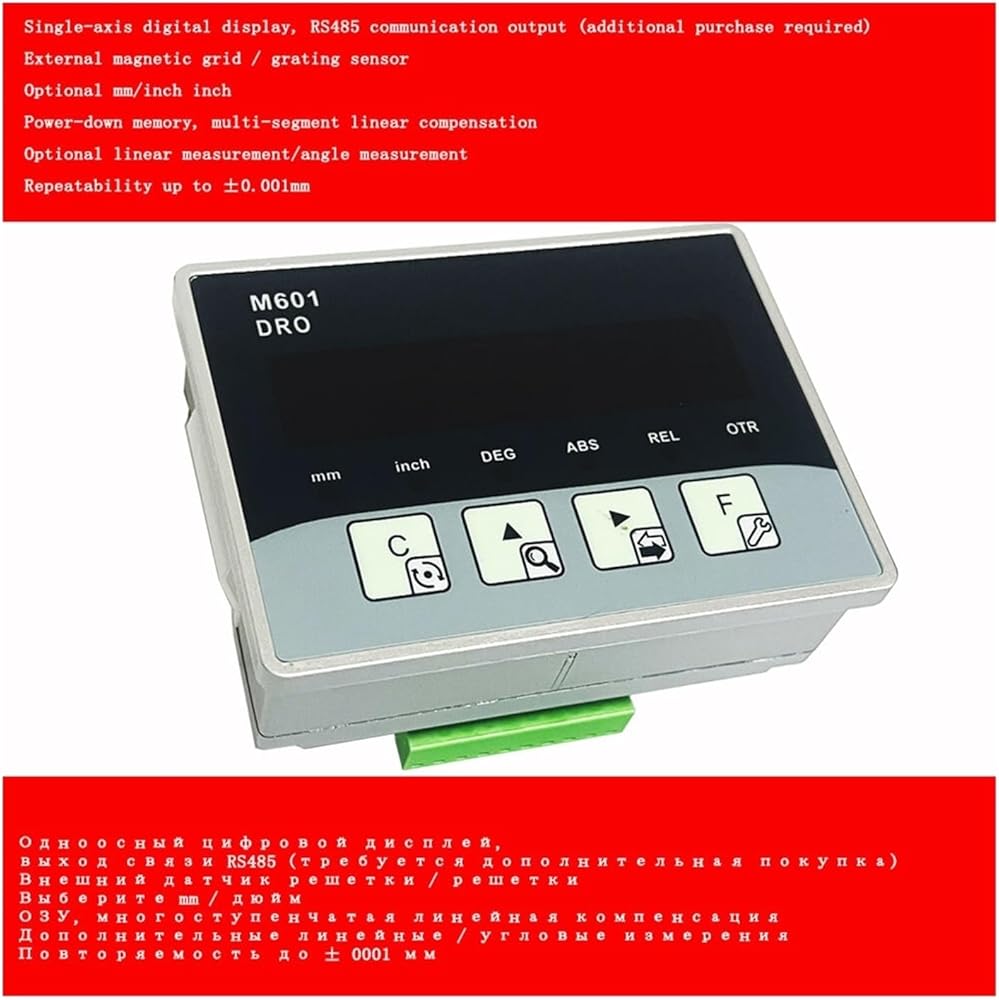

Single row digital tube
Multi parameter
Power off to save current data
Initial value reset function ("reset")
Optional millimeters/inches
Optional straight line measurement/angle measurement
Multi segment linear compensation
Customized 485 communication(Configuring non-standard 485 communication products requires contacting the seller to increase the price)

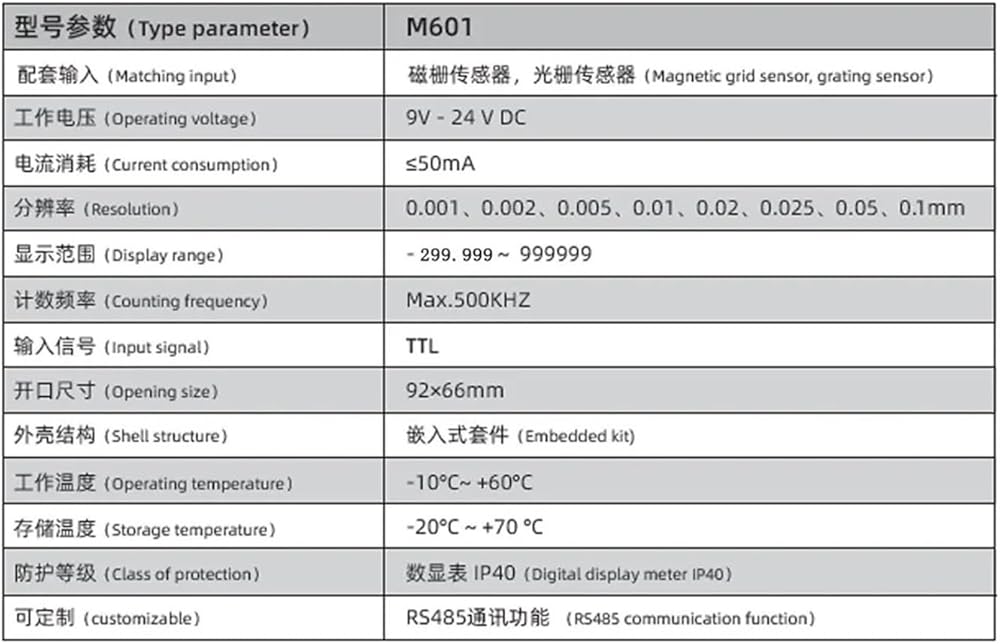

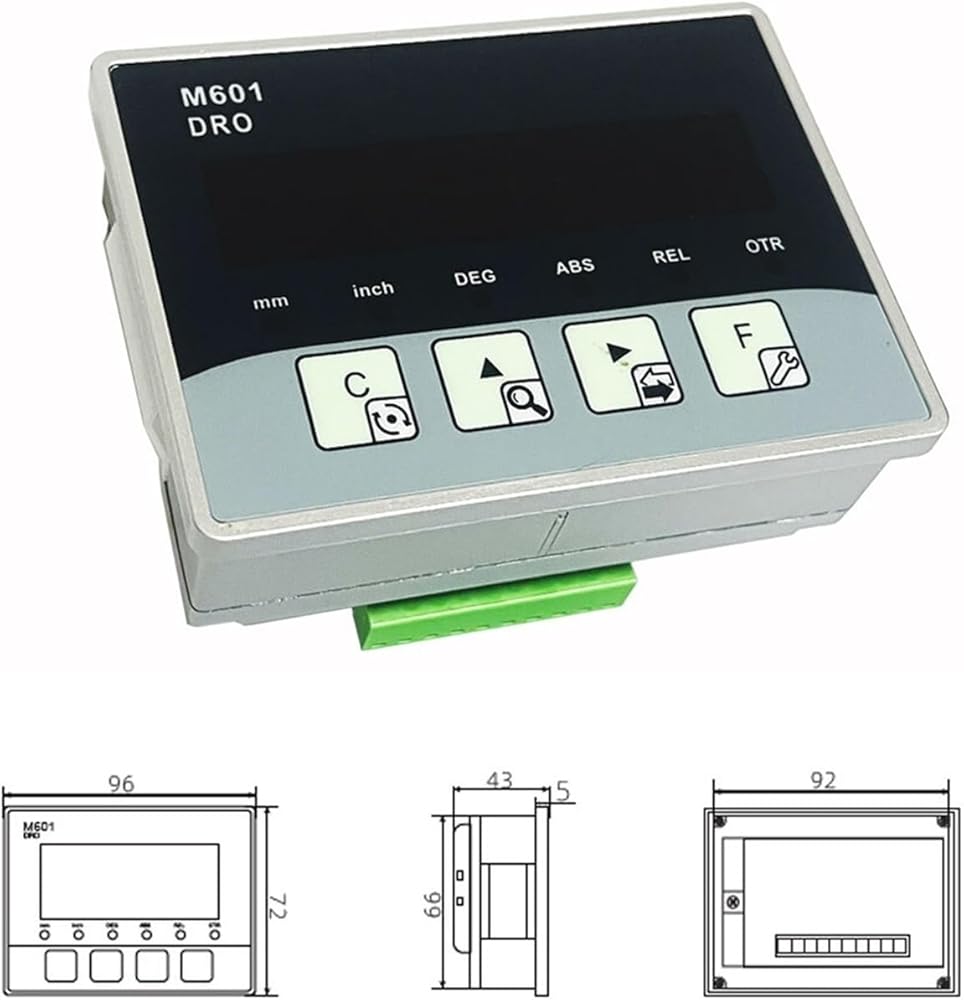

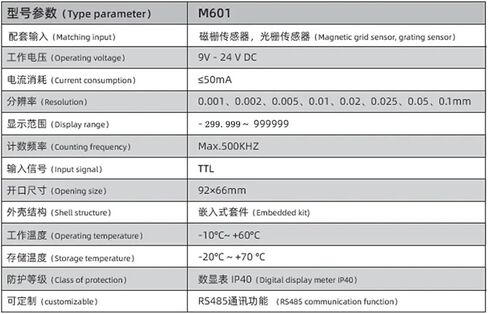

Resolution (mm) 0.001, 0.002, 0.005, 0.01, 0.02, 0.025, 0.05, 0.1 Dimensions 96 * 72 * 65mm
range -299.999~1999999
Opening size 91.6 * 66mm
External power supply: 9~24V
Waterproof grade IP40
Consumption current Max.65mA
Weight Max.300g
Input interface TTL
Operating temperature 0 ~+60
1. Communication method:
RS485 two wire communication, ModBus RTU protocol;
8-bit data;
1 stop bit;
No verification;

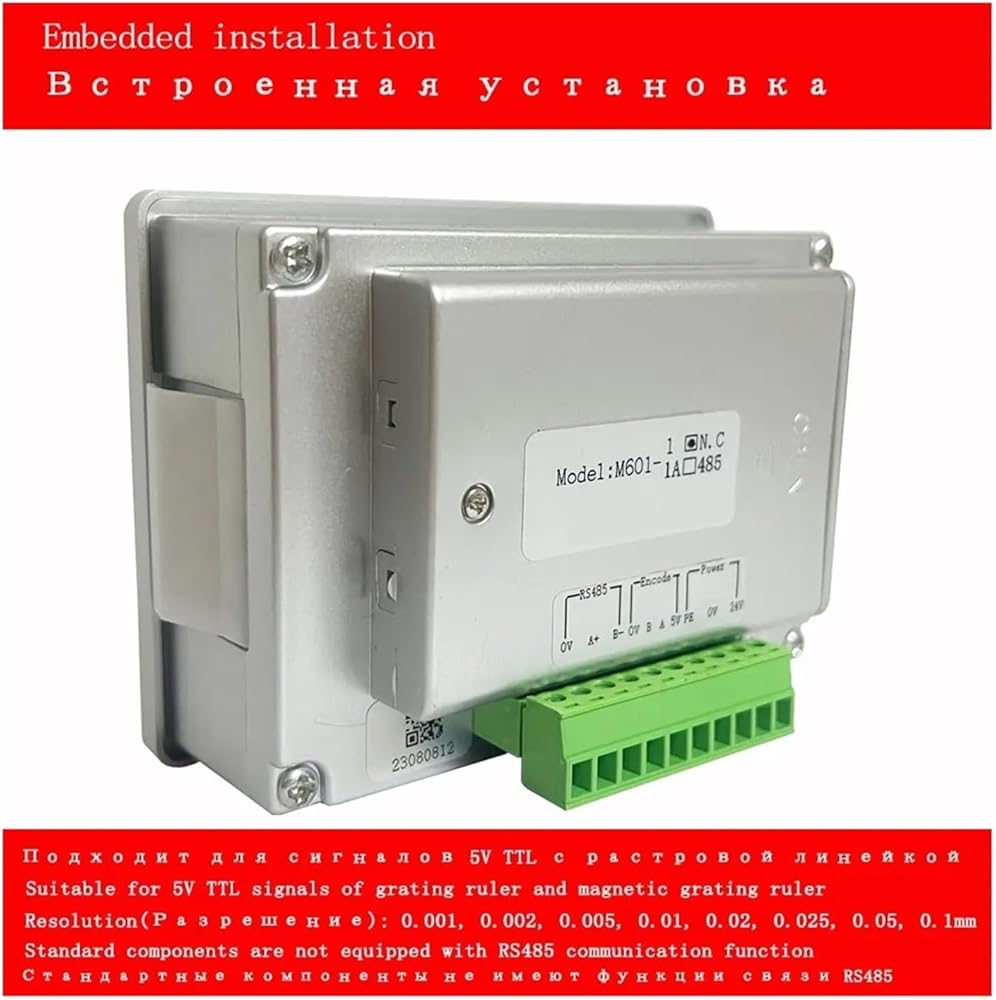

2. Wiring instructions:
A+connected to RS485A; B+to RS485B; 0V within the RS485 range is not connected by default. If there is communication interference, it needs to be grounded (shared with the instrument)
