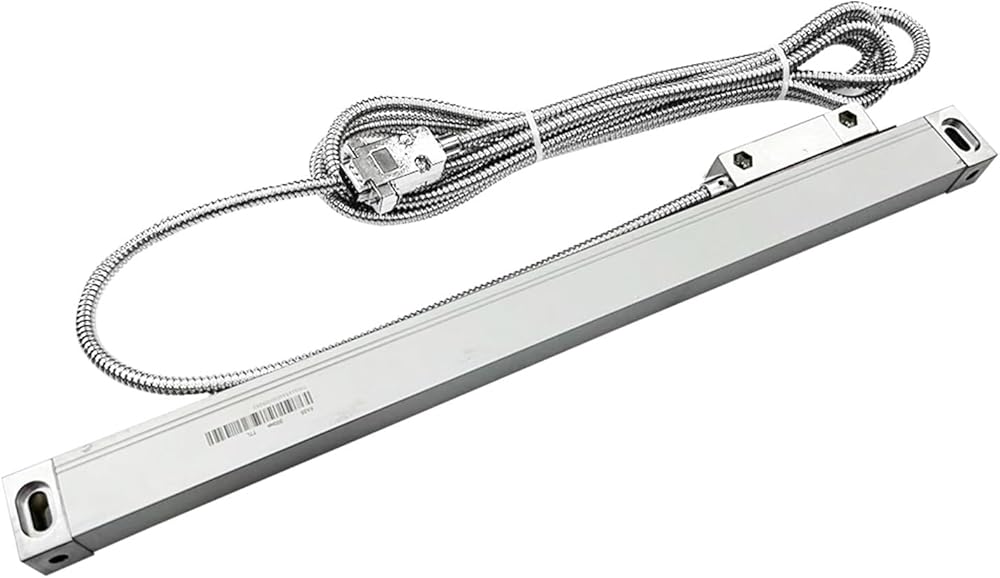

5um صريف الزجاج حاكم الاستشعار التشفير الموازين الخطية TTL 450 مم - 700 مم لأدوات آلة طحن المخرطة 0.005 مم تحديد المواقع بدقة، 650 مم السفر-1 in Kuwait

5um صريف زجاج حاكم الاستشعار التشفير الموازين الخطية TTL 450 مم - 700 مم لأدوات آلة طحن المخرطة 0.005 مم تحديد المواقع بدقة، 450 مم السفر-1

KWD 65
اللون450mm السفر
مقاس1
– 1 +

مميزات خاصة

  • High-precision measurement: The resolution reaches 5μm (0.005mm), ensuring accuracy in applications such as milling machines, lathes, grinders and CNC
  • Wide application: Suitable for a variety of mechanical equipment, including milling machines, lathes, grinders and CNC machine tools, to meet different industrial needs
  • Reliable operating environment: The operating temperature range is 0-50°C, and the protection level reaches IP54, ensuring stable operation in a variety of industrial environments
  • Convenient interface design: The DB9 interface is adopted to simplify installation and connection, with strong compatibility and improved convenience of use
  • Efficient measurement speed: The maximum measurement speed can reach 60m/min, which improves work efficiency and adapts to fast production requirements

وصف

Model Number : KA35-450 500 550 600 650 700400
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
Procut name : DRO linear scale
