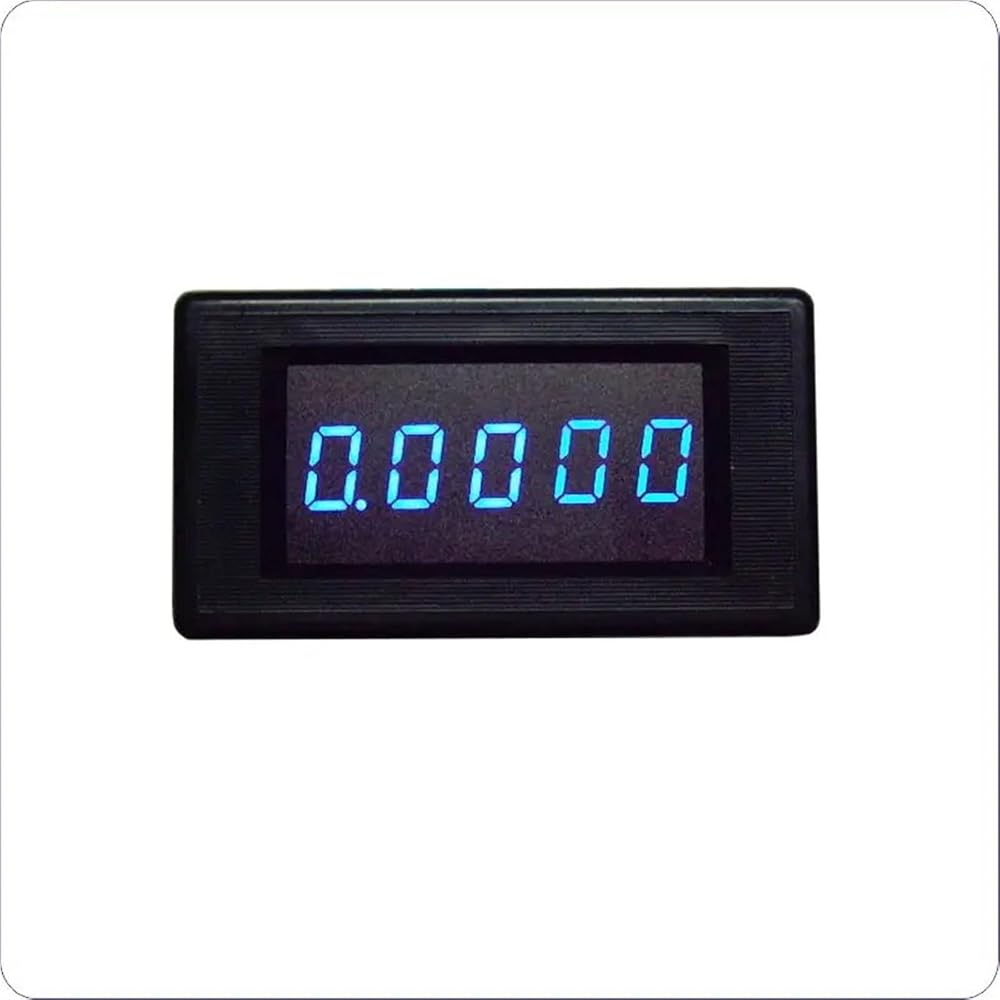

YB5145Ai Isolated Voltmeter 4.5 Digital Voltage Meter 200mV/200V/500V/600V 24V Voltage Monitor LED Digital Panel Meter 4 1/2
Attention:
1.The meter power supply terminal and test terminalcompletely isolated, completely insulated.
2.Two or moremeters canshare a power supply, don't need to worry about the power supply and wiring problems.
Technical Parameters:
Power supply:DC8-18V(DC9V is the best)/ 24V selectable
Test voltage:DC200mV/2V/20V/200V/600V
Dimension:79*43*25mm
Mounting hole:76*39.5mm
Display mode: 0.4 "LED with red/blue digits
Measurement accuracy: 0.1% (± 2 digits)
Measurement rate: 2 times/S
Specification:
Features:
Thismetercan test positive and negativevalue.
More than one meter can share one power supply.
Power supply reverse protection.
SMT technology, consistency is very good.
The crystal of the meter is quartz crystal with high precision and high stability.
The LED digital tube display part, with all the limited current resistance, will be not appeared "the bright and dark inconsistency".
Package Include:
1 piece* LED Digital Isolation Voltage Meter
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5145Ai
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.1%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : 0.4''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : DC8-18V/DC24V
Test voltage : DC200mV/2V/20V/200V/600V
