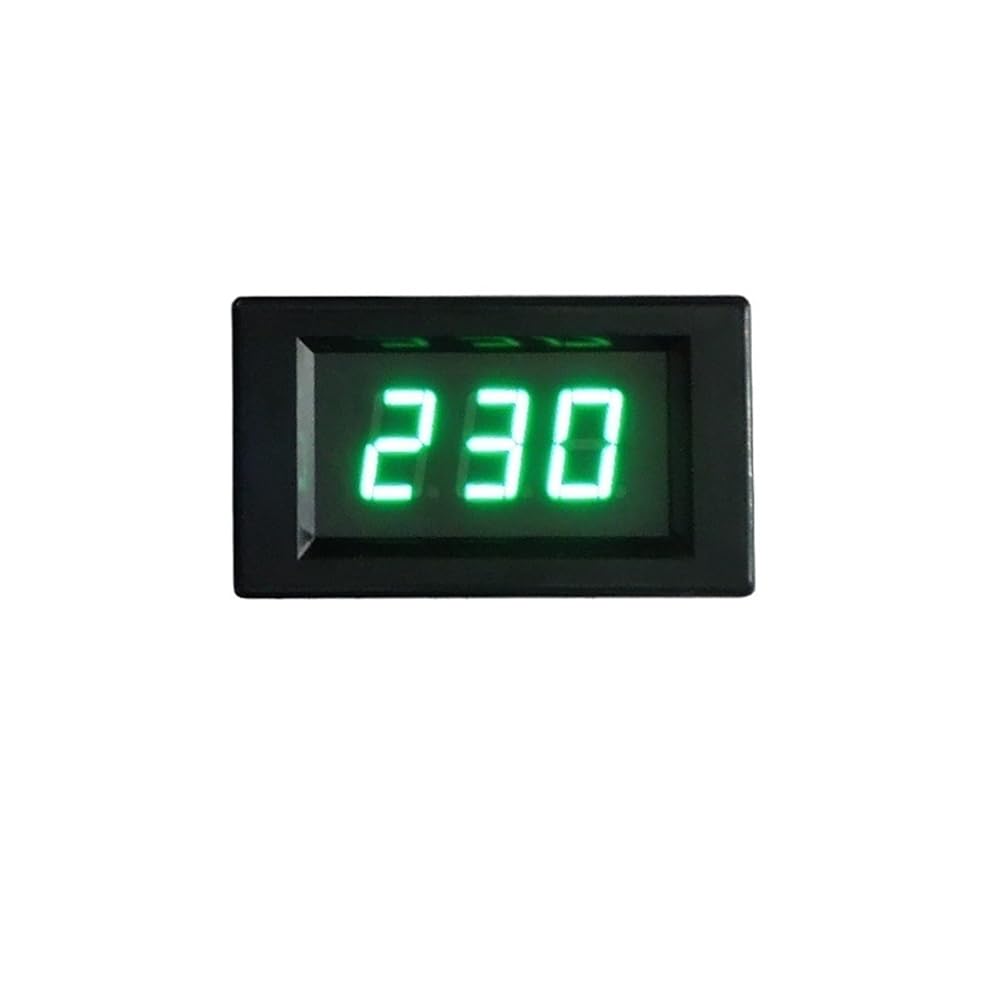

YB4835 LED AC Voltmeter Voltage Meter AC30-500V Digital Voltage Monitor AC120V 240V 380V Voltage Detector D85 Volt Panel Meter
Attention:
1.The meter can only be used to measure 50/60Hz sine wave circuit,it will be damage when power supply is by square wave, output of inverter and correction sine wave.
2.This meter shows the Average Value.
Technical parameters:
Voltage range: AC30V ~ 500V
Measurement accuracy: 1% ± 2 digits
Display: 0.56 inch LED digital (red,blue,green)
Measuring speed: about 2 times per second
Dimensions: 70 × 40 × 30 mm
Installation size: 68 × 38mm
Resolution: 1V
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB4835
DIY Supplies : ELECTRICAL
Dimensions : 70*40*30mm
Operating Temperature : -10 to +50 degree
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting dimension : 68*38mm
Display type : 0.56'' LED (red,blue,green)
Measuring speed : about 2 times /S
Voltage Range : AC30-500V
Resolution : 1V
