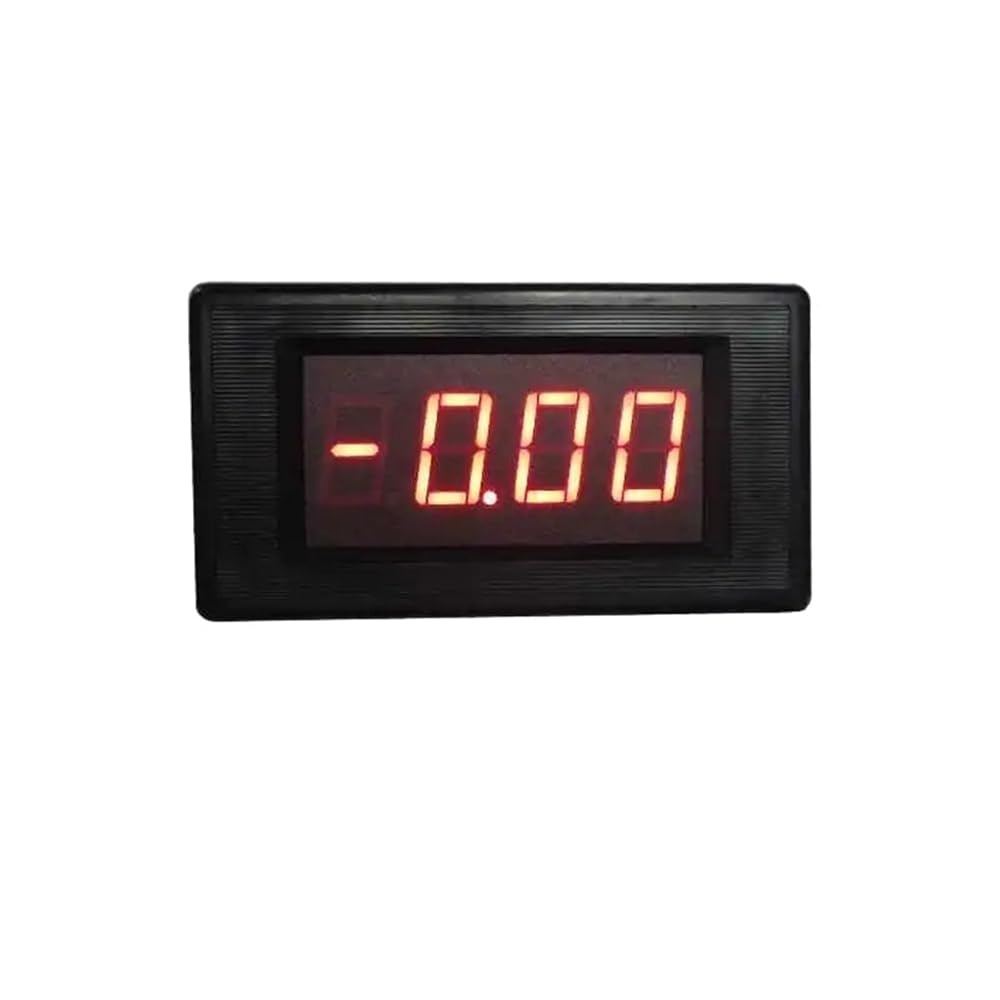

YB5135A 3 and 1/2 LED Digital Voltmeter 200mV/2V/20V/200V/500V Monitor Voltage Meter Tester Volt Panel Meter Voltmetre 3.5
Attention:
The negative of power supply and the testing side areconnected, so it is recommended to use a separate power supply(ie: independent power supply).
Technical Parameters:
Power supply: DC5V/12V/24V selectable
Test voltage:DC20mV/200mV/2V/20V/200V/500V
Dimension:79*43*15mm
Mounting hole:76*39.5mm
Display mode: 0.56 "LED with red/blue digits
Measurement accuracy: 0.5% (± 2 digits)
Measurement rate: 2 times/S
Specification:
Package Include:
1 piece* LED Digital Voltage Meter
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135A
DIY Supplies : ELECTRICAL
Dimensions : 79*43*15mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.5%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : 0.56''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : DC5V/12V/24V
Test voltage : DC20mV/200mV/2V/20V/200V/500V
Feature : Measure positive and negative voltage
