Product details:

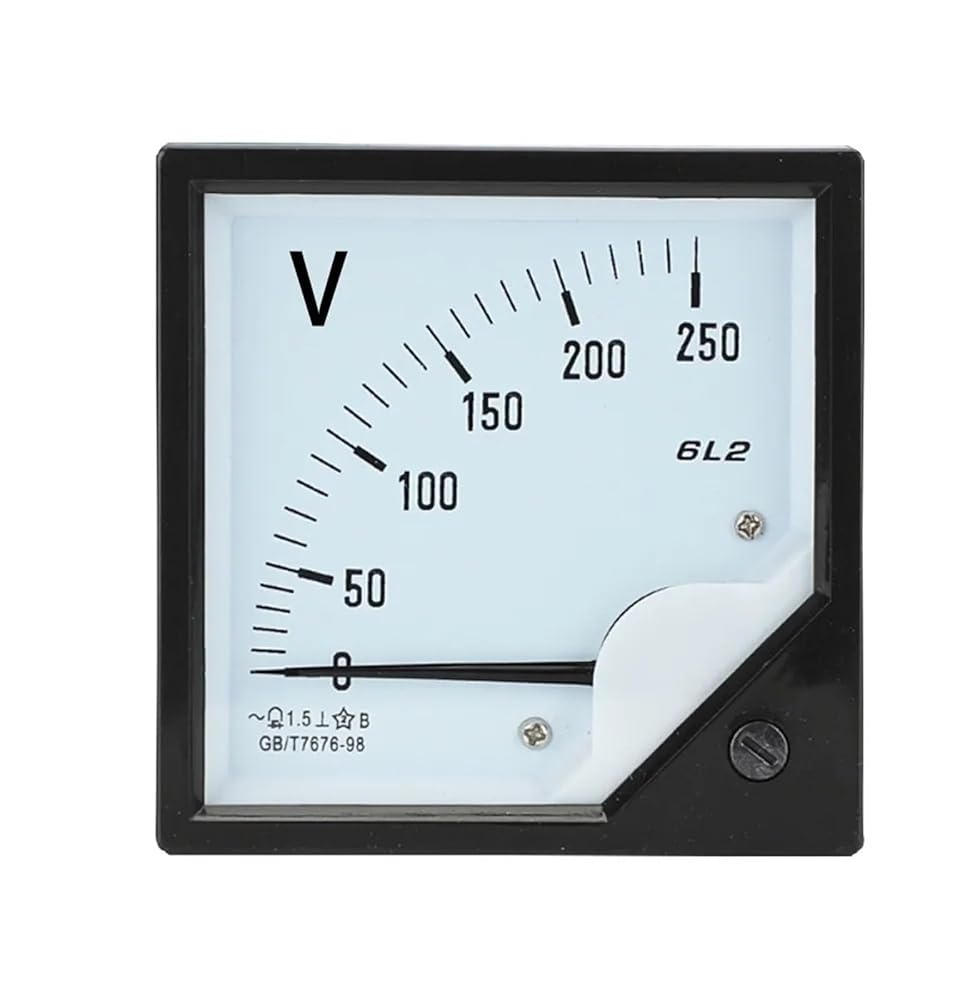

1. Model: 6L2-V
2. Color: Black
3. Accuracy: 1.5
4. Size: 80 mm x 80 mm x 58 mm(L*H*W)
5. Package:1*Analog Current Panel Meter.(with the mounting nut)
6. Measuring Range: According to your choice.
First. Use
This instrument is a switched magnetoelectric instrument, which is used for measurement of AC / current or voltage. The ambient temperature is -20 - +55°, and the relative humidity is not more than 96% (25).
Two. Specifications
AC ammeter 50~500V (direct access)
Three. The main technical characteristics
1. the damping time is less than 4S.
2. Insulation strength: AC2000V (50HZ), 1 minutes.
Four. Use of rules
1. Work position: vertical.
2. Instrument installation should be fastened, not loose or inclined.
3. The current ratio of the external current must be in line with the calibration ratio of the instrument, and the accuracy grade is matched.
Notes:
1. Please allowed 1-3mm differences due to manual measurement. :)
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Make sure that the correct parameters are selected and leave a message: the size, voltage, model and so on.
==========
Hign-concerned Chemical : None
Dimensions : 80mmX80mm
Operating Temperature : -20-50
Accuracy Class : 1.5
Model Number : 6L2-V
Display Type : Analog Only
DIY Supplies : ELECTRICAL
