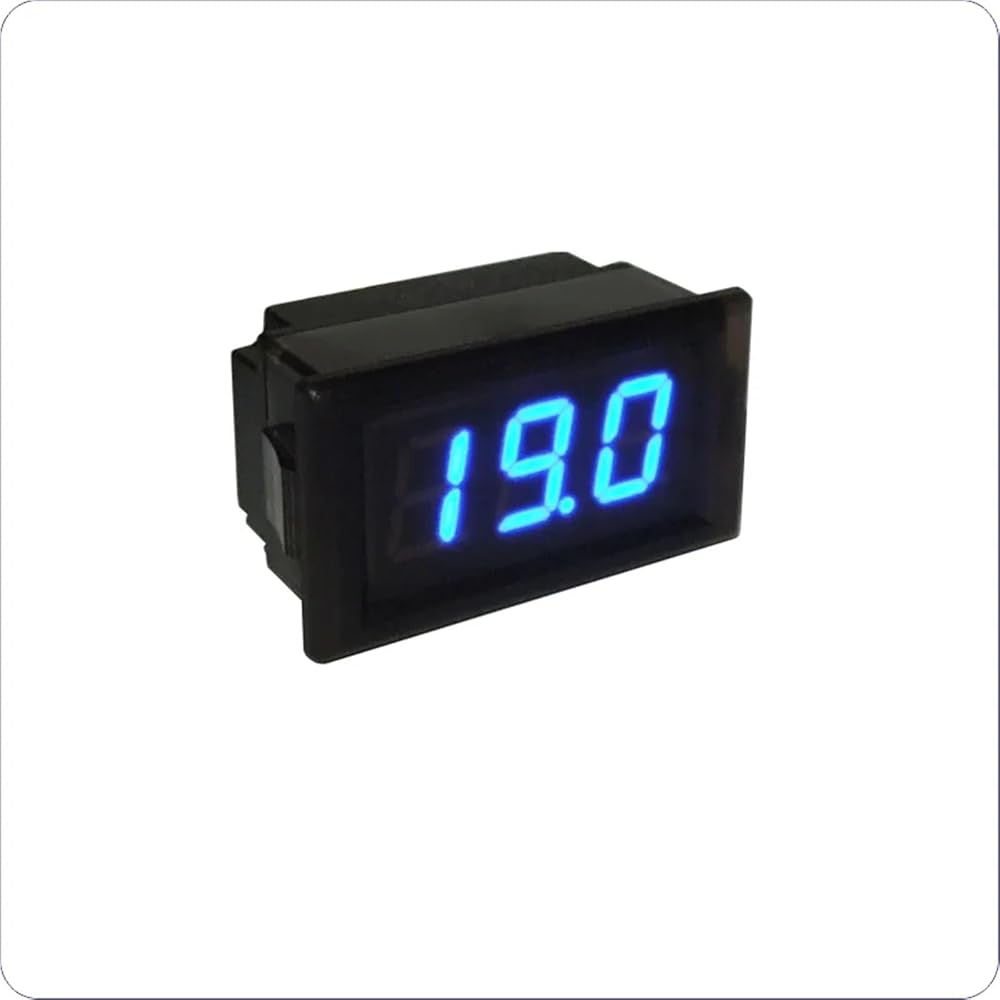

YB28-W 0.52 Inch Red Blue Digital LED Module 0-30V 100V 300V 600V Voltmeter Voltage Tester Panel Meter Gauge Motorcycle Car
Attention:
1. The power supply voltage of the meter should not exceed 30V, and enough safety voltage space should be reserved;
2. Due to the limited space of the stickers, some infrequently used ranges will be manually rewritten on the stickers, please don't order if you mind it.
Specification:
Installation: Embedded installation
Accuracy:1% ± 2 digit
Power Supply:DC3.3-30V
Test Voltage:DC0-30V/100V/300V/600V
Measurement speed:500mS/time
Lead length:about 100mm
Outline size(approx):54*30*27mm
Mounting dimensions(approx):47.2*27.3mm
Display type:0.52'' LED(Red, Blue, Green digits selectable)
Features:
With three wires,wiring is simple and convenient.
With a back cover,safe to use.
Waterproof.
With reverse polarity protection function.
The decimal point is automatically shifted.
With three wires, can be connected to cars,e-bikes or motorcycles.
Connection Diagram:
Red wire: Power supply Positive terminal
Black wire: Public Negative terminal(Power supply and test negative terminal)
Yellow wire: Testing terminal
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB28-W
DIY Supplies : ELECTRICAL
Dimensions : 54*30*27mm
Operating Temperature : -10 to 50 degree
Accuracy Class : 1%+/- 2 digits
Power Supply :
Display Type : Digital Only
Mounting hole : 47.2*27.3mm
Test voltage : DC0-30V/100V/300V/600V
Display color : 0.52'' LED(Red/Blue/Green)
Cover color : Black
