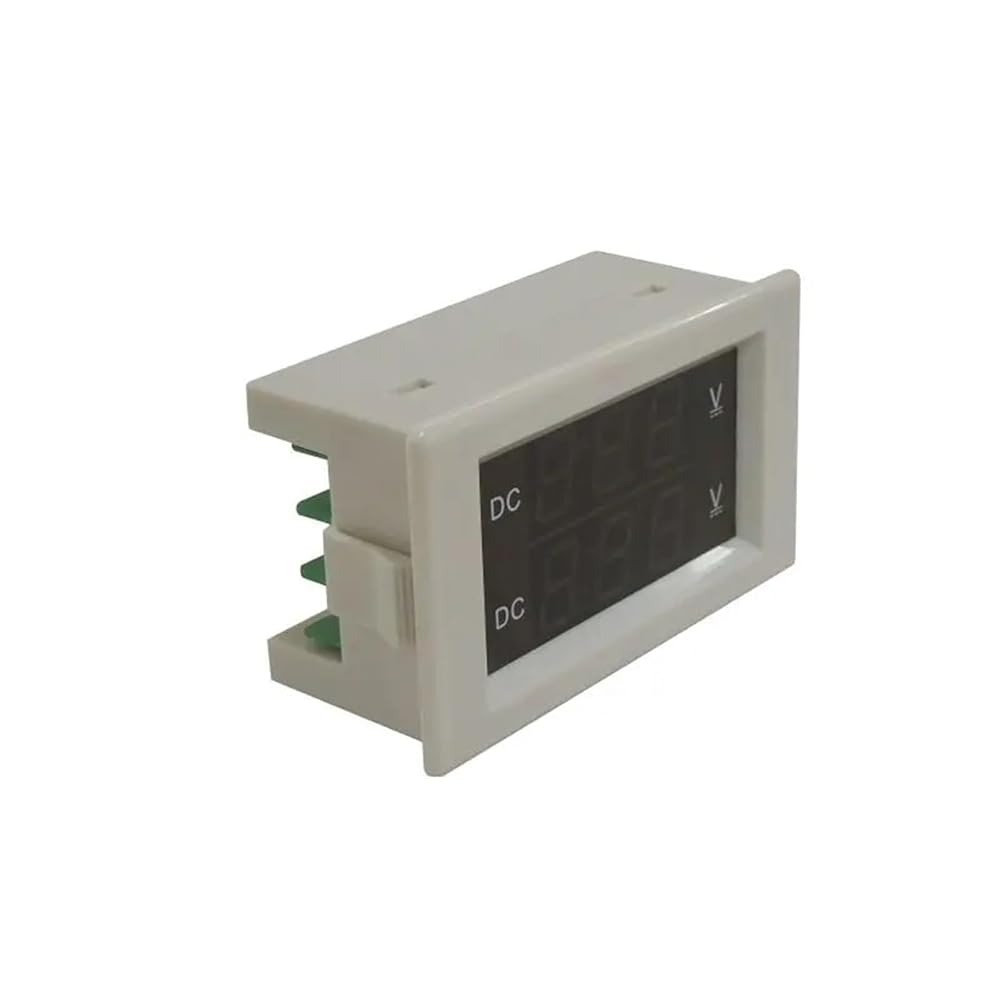

YB4835VV Dual Voltage Meter Double Voltmeter dc0-30V 100V 300V 600V Volt Panel Meter 0.39'' LED Digital 2-Way Dual Voltmeter
Attention:
The maximum power supply voltage can not exceed 30V,it it recommended to leave a little margin to prevent the power supply fluctuation cause permanent damage to the instrument.
Technical Parameters:
Supply voltage: DC3.5-30V
Test voltage: DC0-30V/100V/300V/600V
Display mode: 0.39 "LED with red and green digits
Dimensions: 70 × 40 × 30 mm
Installation opening: 68 × 38 mm
Measurement rate: 500mS / time
Measurement accuracy: 1% (± 1 digits)
Features:
The wide power supply range:DC3.5-30Vwith reverse polarity protection.
Display dual voltageon onescreen at the same time.
Use the SMT technology,so consistency is very good.
With a back cover,safe ,reliable and dustproof.
The decimal point automatically shifted.
With a voltage calibration potentiometer, you can calibrate by yourself.The tolarance is absolutely exist.
Good anti-interference ability, showing the refresh speed.
Common ground: The two ground wiresof the testing side and the power supply are connected.
Connection Method:
The meter should be connected four wires:
Two positive poles of voltage
One positive pole of power supply
One common negative pole (power supply negative and two test voltage negative
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB4835VV
DIY Supplies : ELECTRICAL
Dimensions : 70*40*30mm
Operating Temperature : -10~50 degrees
Accuracy Class : 1% +/- 1 digit
Power Supply :
Display Type : Digital Only
Test voltage : DC0-30V/100V/300V/600V
Power supply : DC3.5-30V
Display mode : 0.39'' LED digital with red and green fonts
Cover color : Black/White
Mounting hole : 68*38mm
