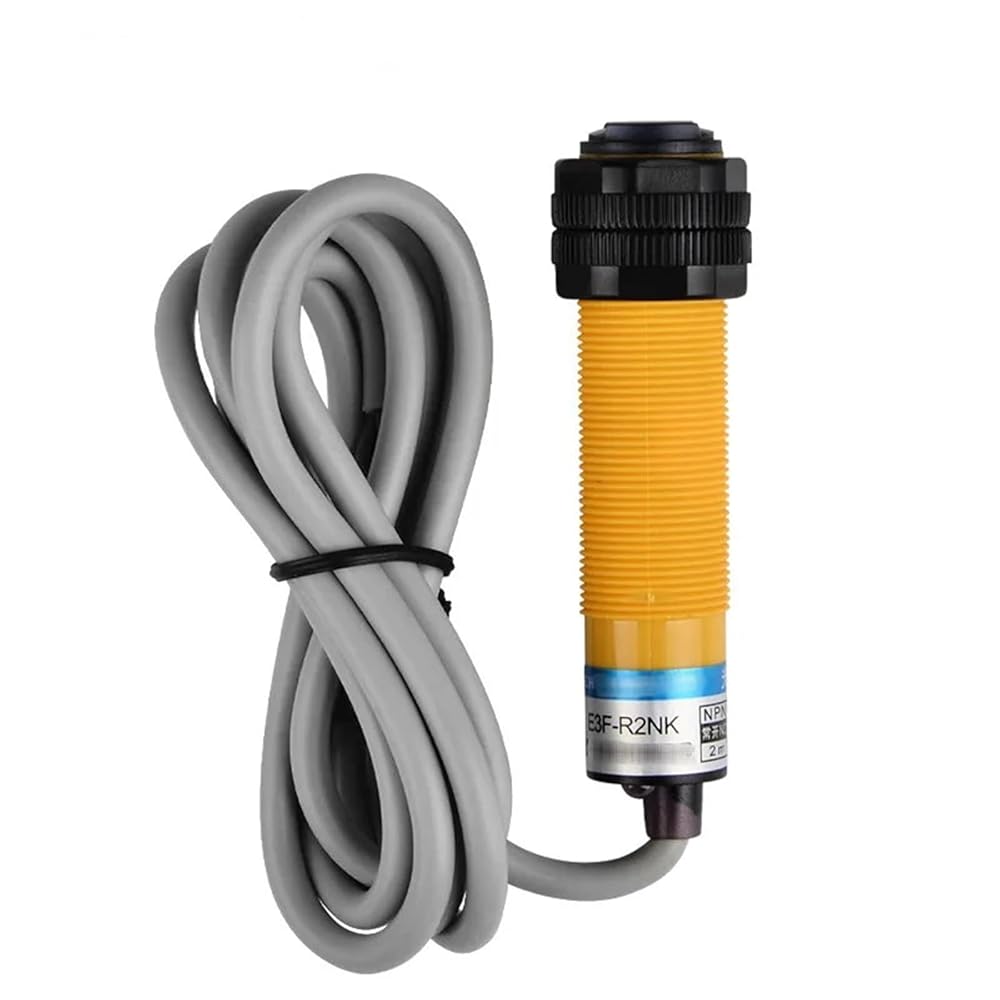

E3F-DS30C4 Proximity Switch Photoelectric Sensor, NPN PNP DC5-36V 30cm 10cm Detection Range Adjustable, 1pc
NO: When an item is near, the light turns on
NC: When an item is near, the light turns off
Specification:
Coneection delay:
1.5ms
Light source:
Infrared light 660nm
Supply voltage:
DC type : DC12-24V(6-36V) Impulse(p-p)10% below
AC type : AC110-220V(90-250V) 50/60Hz
Consumption current:
N.P type: 20mA below, A type:1.7mA below
Control output:
N.P type: 300mA below,A type:400mA below, J type:2A below
(contact service lift:0.1 million times)
Loop protection:
N.P.D type: reversal connection protection, surge absorption,
load short-circuit protection, A type surge, absorption
Ambient temperature&humidity
During operation storageindividually3065no freeze no drew),
During operation, storage:individually 35~95%RH
Insulation impedance:
50Mabove(DC500 megameter)between chargine part and housing.
Withstand voltage:
AC1000V 50/60Hz 1min between charging part and housing
Temperature influence:
Temperature range -30~+65, at +23%, ±15% detection distance;
temperature range -25~+60%, at +23, ±10% detection distance.
Voltage influence:
Inside ±15% rated supply votage range, at rated supply voltage value,
inside ±10% detection distance.
Protection structure:
IP67(IEC specification)
Material:
House: Nickel plated brass(ABS)
Detection surface(Lens): PMMA
Detection mode: Diffuse Reflection,Feedback Reflection,Through-Beam
Detection Distance: 10cm-30cm±10%
Set distance: 0~3.6mm
Male Thread Size: M8/M12/M18/M30
Mounting Type: Screen Shielded
Non-Screen Shielded
Supply Voltage: DC Type: 6~36VDC
AC Type: 90~250VAC, 50/60Hz
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Response frequency: DC:0.5kHz
Supply voltage: DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Detection Object: Magnetic Metals
(if it is not magnetic metals, the detection distance will decrease)
Response Frequency: DC Type: 500Hz
AC Type: 25Hz
Output Indication: Red LED
IP Rating:IP67
Operating Temp: -25 to 70 °C
Total Length (Included Wire): About 1.2m
Materiala: Case: Brass-Nickel Plated
Sensing Surface: ABS
Protection influence: IP67(IEC specification)This product can be applied to control relays, counters,PLC, etc.!
Considerations & Choose
Diffuse reflection type photoelectric switch is made up of light projector and light receptor which is one of standard configurations When the light beam comes from the projuctor the target creates diffuse reflection; when there is enough combination light back to the light receptor, the switch state will change; Effective operating distance depends on the reflectibe capacity of the target, as well as the surface property and color. Teh change capacity with sensitivity adjuster can assume compensation action; The equipment has lower consumption. When the optical sensor is made up of a single element, rough location can usually be achieved; Adopts the function of background rejection to regulate the measuring distance; sensitive to the dust on the target and sensitive to the changed reflective performance of the target.
Current : 300 mA
Material : Copper
Switch Type : Proximity Switch
Model Number : E3F-DS30C4, E3F-DS10C4
Features : strong and sturdy
Item Type : SWITCHES
Product Name : Inductive Proximity Sensor Switch
Output Type : DC/AC
Output Type2 : NPN/PNP/2-Wire
Output Type3 : NO/NC/NO+NC
Detection Distance : 10cm /30cm ±10%
Detection Object : Magnetic Metal
Male Thread Size : M18
Output Control : 2-Wire,3-Wire,NPN,PNP,NO,NC
Supply Voltage : 6~36VDC/90~250VAC, 50/60Hz
Response Frequency : DC:500Hz, AC:25Hz
IP Rating : IP67
Operating Temp : -25 to 70 °C
