Inductive Proximity Sensor TL-N20ME2, NPN 3WIRE NC DC6-36V Detection Distance 20MM Proximity Switch Sensor Switch, 1pc
Iron 50*50*1mm
Response frequency
DC:0.5kHz AC:25Hz
Voltage
DC type: DC12-24V (6-36V) pulsation (P-P) below 10%,
AC type: AC110-220V (36-250V) 50/60Hz
Withstand voltage
AC1000V 50/60Hz 1min between charging part and case
Influence of voltage
Within ±15% of the rated power supply voltage range, within ±10% of the detection distance at the rated power supply voltage value
Current consumption
N.P type: 13mA or less, D type: 0.8mA or less, A type: 1.7mA or less
Control output
N.P type: 300mA or less, D type: 200mA or less, A type: 400mA or less
Circuit protection
N.P.D type: reverse connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Environmental temperature and humidity
During operation and storage: -30-+65 each
(No icing, no frost), during operation and storage: 35-95%RH each
The influence of temperature
Temperature range -30-+65, at +23, within ±15% of detection distance
Temperature range -25-+60, at +23, within ±10% of detection distance
Insulation resistance
Above 50M (DC500 megohmmeter) between the charging part and the shell
Material
Shell: ABS surface: ABS
Protection structure
IP67 (IEC standard)
High-concerned chemical : None
Material : PVC
Model Number : TL-N20ME1 TL-N20ME2 TL-N20ME12 TL-N20MF1 TL-N20MF2 TL-N20MF12
Work Voltage : DC6-36V
dimension : 40X40X52MM
Detection distance : 20MM
Output current : 300mA

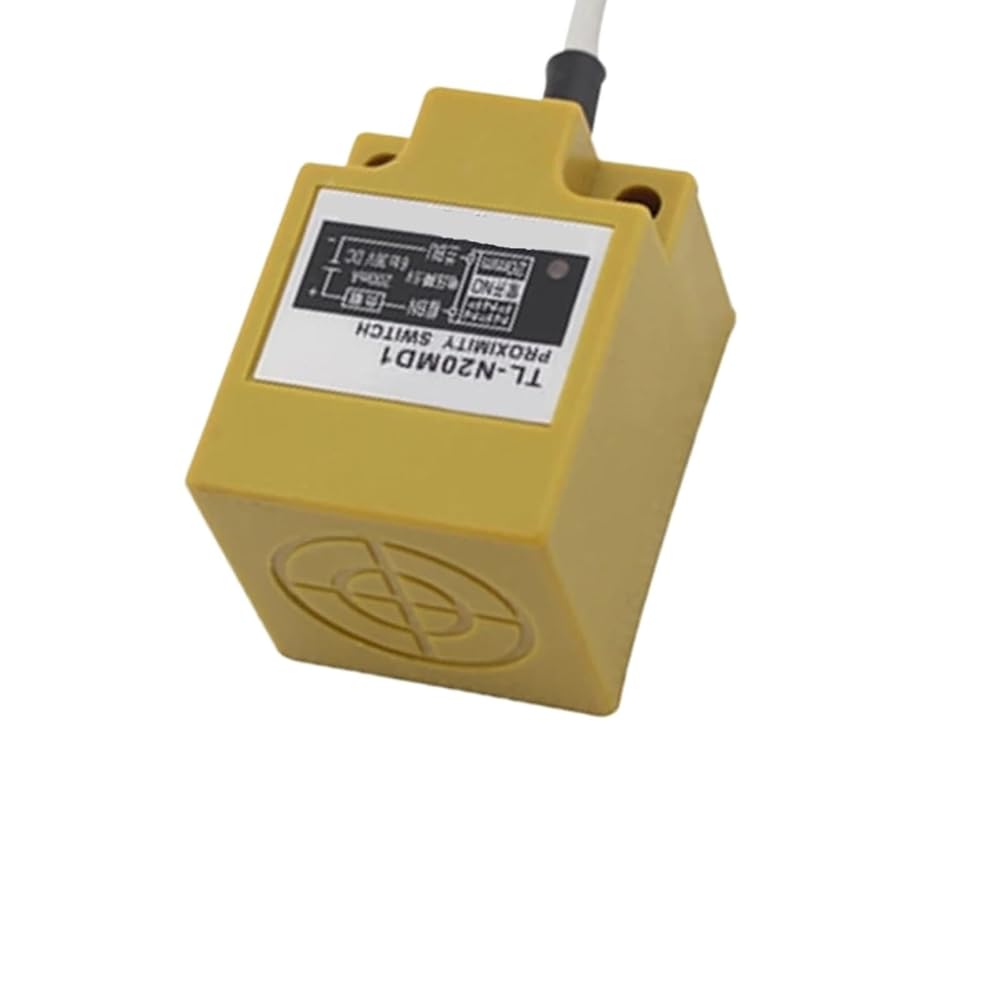

model : TL-N20MD1 TL-N20MD2
