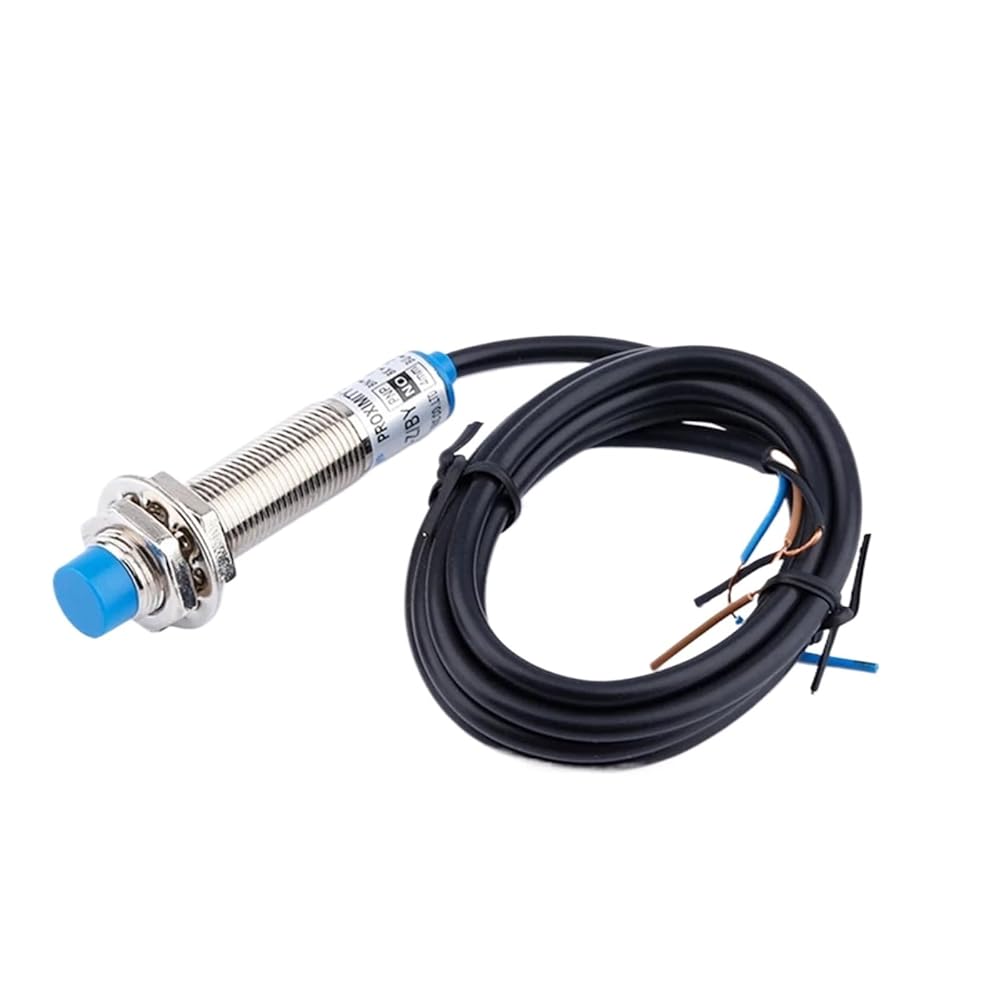

LJ12A3-4-Z/BX LJ12A3-4-Z/BY Inductive Proximity Sensor, Detection Switch NPN/PNP DC 6-36V Approach Sensor 12mm, 1pc
External Dimensions: M12 x 60mm (L)
Detection Distance: 4mm ±10%
Set distance: 0~3.6mm
Male Thread Size: M12
Mounting Type: Screen Shielded
Non-Screen Shielded
Supply Voltage: DC Type: 6~36VDC
AC Type: 90~250VAC, 50/60Hz
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Response frequency: DC:0.5kHz
Supply voltage: DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Detection Object: Magnetic Metals
(if it is not magnetic metals, the detection distance will decrease)
Response Frequency: DC Type: 500Hz
AC Type: 25Hz
Output Indication: Red LED
IP Rating:IP67
Operating Temp: -25 to 70 °C
Total Length (Included Wire): About 1.2m
Materiala: Case: Brass-Nickel Plated
Sensing Surface: ABS
Protection influence: IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
Package Included: 1/5/10PC Proximity Switch
Considerations & Choose
In the general industrial place of production they are usually selected eddyinductive proximity switch and
capacitive proximity switch Because these two proximity switches have low requirements for the environment
A measured object is a conducting object or an object that can be fixed to a piece of metal Because of high
response frequency, good anti-interference performance, wide application range and low price, they are usually
choose eddyinductive proximity switch.
If the object is nonmetal (or metal), liquid level, powder height, plastic, tobacco. Select and use capacitive
proximity switch . This switch has a low response frequency but a good stability. The effect of environmental
factors should be taken into account when installing.
If the measured material is a magnetic material, differentiating the magnetic materials from two objects, the Holzer
proximity switch can be selected.
In the environment with better environmental conditions and no dust pollution, photoelectric proximityswitch
can be used. The optoelectronic proximity switch has little effect on the object being measured. For example, high
demand for facsimile machines and tobacco machines.
In the anti-theft system, the automatic door usually uses the pyroelectric proximity switch, the ultrasonic proximity
switch, and the microwave close to the switch. In order to improve the reliability of recognition, several proximity
switches are used together.
High-concerned chemical : None
Current : 300 mA
Material : Copper
Switch Type : Proximity Switch
Model Number : LJ14A3,LJ16A3,LJ20A3
Features : strong and sturdy
Item Type : SWITCHES
Product Name : Inductive Proximity Sensor Switch
Output Type : DC/AC
Output Type2 : NPN/PNP/2-Wire
Output Type3 : NO/NC/NO+NC
Detection Distance : 4mm ±10%
Detection Object : Magnetic Metal
Male Thread Size : M12
Output Control : 2-Wire,3-Wire,NPN,PNP,NO,NC
Supply Voltage : 6~36VDC/90~250VAC, 50/60Hz
Response Frequency : DC:500Hz, AC:25Hz
IP Rating : IP67
Operating Temp : -25 to 70 °C
