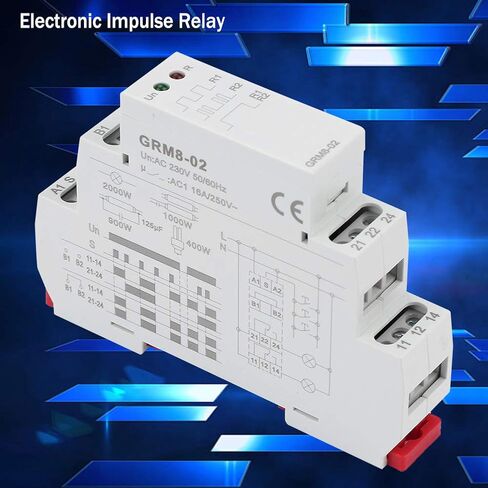

[ACHIEVE MULTIPOINT CONTROL] This boost relay is designed to allow easy multi-point control using pulse commands.
[LED INDICATORS] The relay operating status is conveniently indicated by LED indicators, ensuring easy monitoring and.

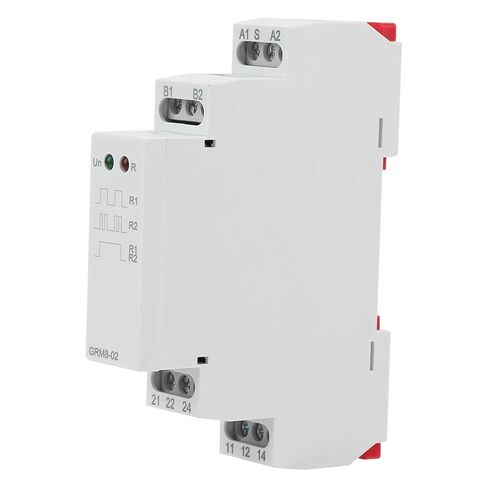

[COMPACT DESIGN] With a sleek 18mm width and 35mm DIN rail mount, this relay offers a compact and space-saving solution.
[EASY INSTALLATION] The simple structure allows for effortless wiring and assembly, making installation a breeze.
[PERFORMANCE] Enjoy stable performance and long service life, ensuring durability and efficiency for your applications.

Specification:
Features:
1. This boost relay can achieve multi-point control by impulse commands.

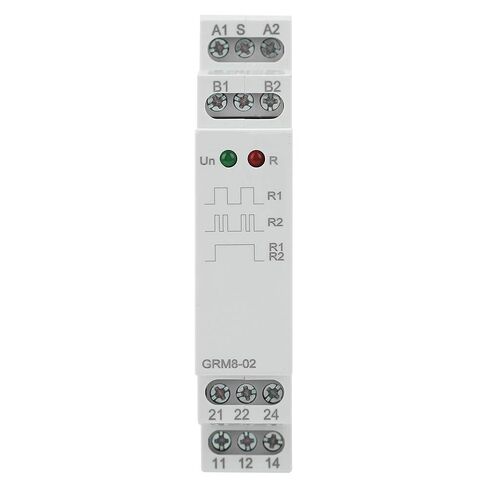

2. The operating status of the relay is indicated by LED indicators.
3. With small volume, only 18 mm wide, mounting on 35 mm DIN rail.
4. Simple structure, easy to wire and assemble.
5. Stable performance, long service life.

Specification:

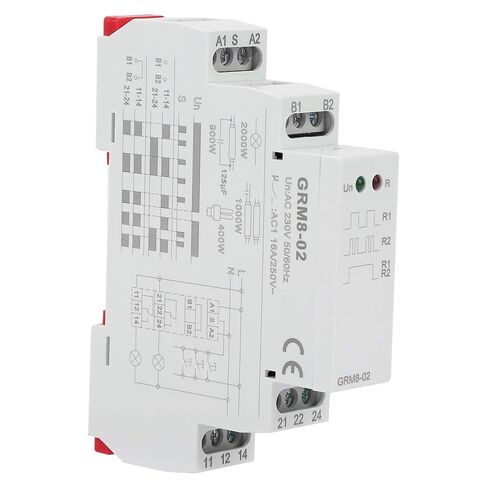

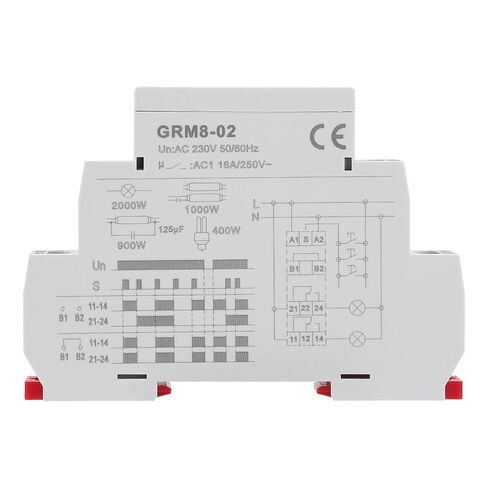

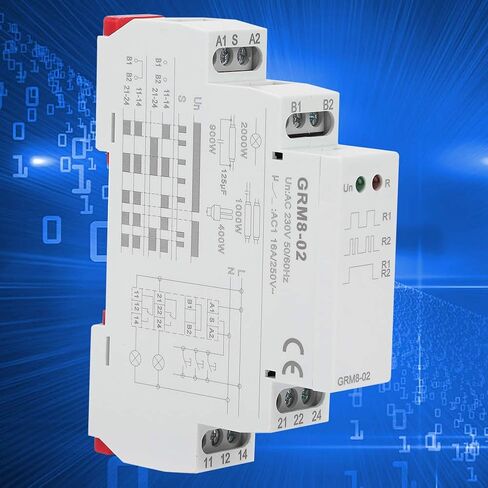

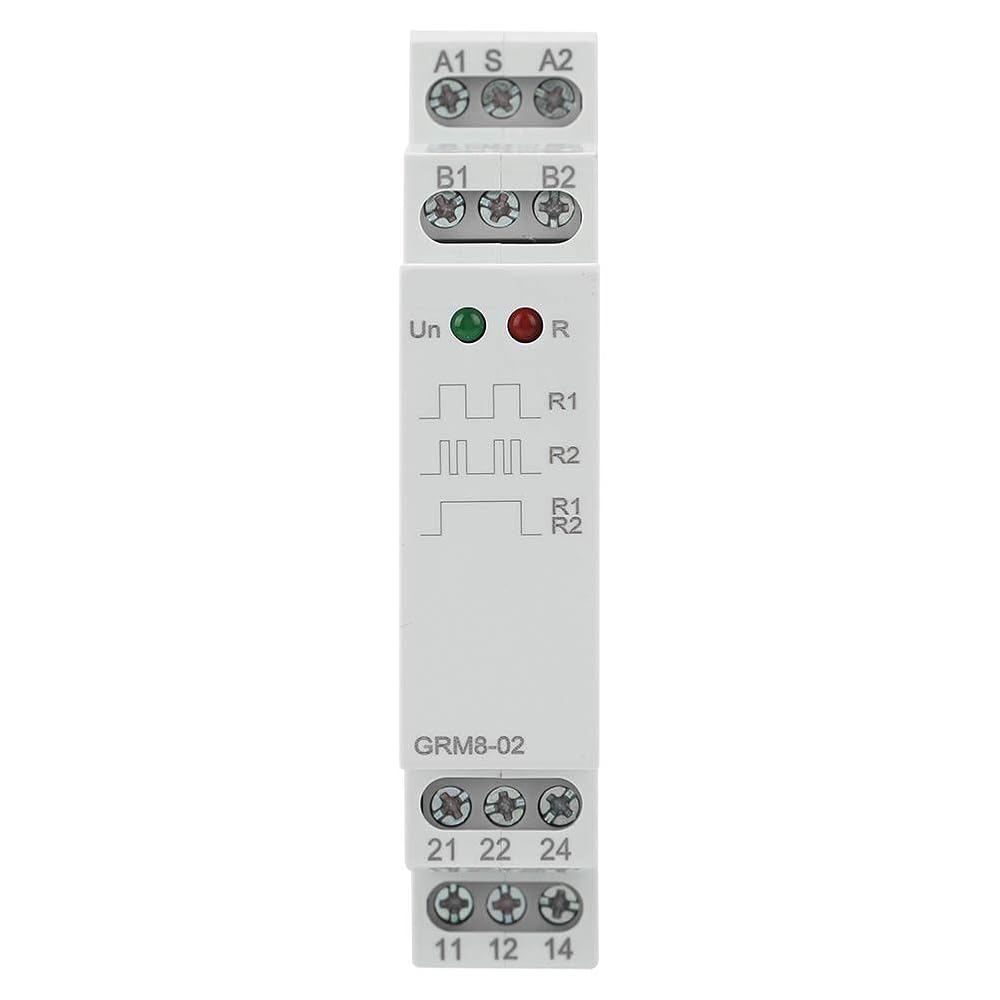

Model No.: GRM8-02

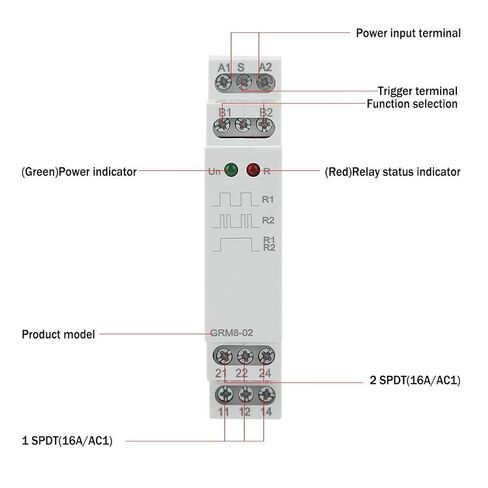

Power terminal: A1-
Rated supply voltage: AC 230V (50-60Hz).
Power consumption: AC max. 12va/1.9w
Supply voltage tolerance: -15%; +10%
Power indicator: Green LED
Control terminal: A1-S
Max. Connection number of neon lamp: 75pcs (0.68mA/230VAC)
Control signal width: min. 0.98 inches (25mm)
Output: 2 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output indication: Red LED
Mechanical life: 1x107
Electrical life (resistive load): 1x106
Reset Time: Max 200ms
Working temperature: -20℃~55℃

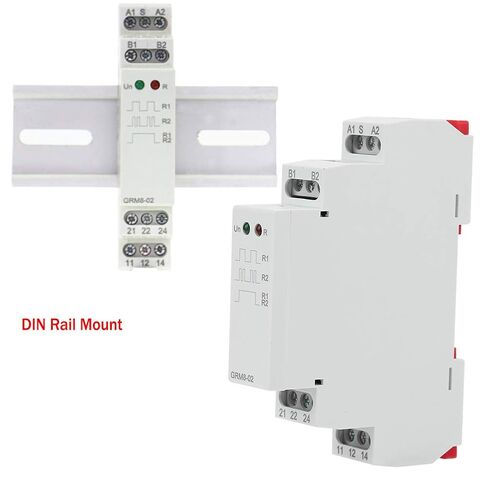

Mounting method: 35mm DIN rail
Mounting altitude: 2000 m
Cabling capacity: 1x2.5mm2 or 2x1.5mm2
Dimensions: 90*18*64mm
