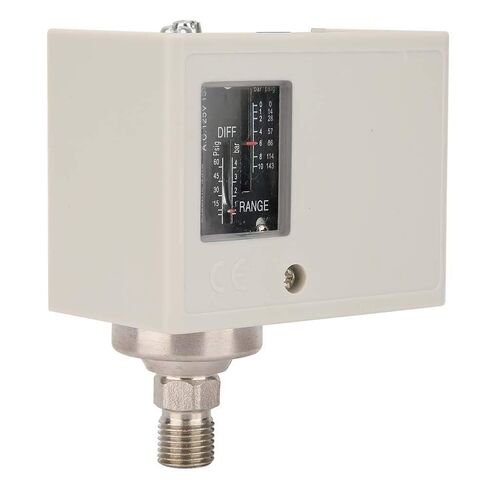

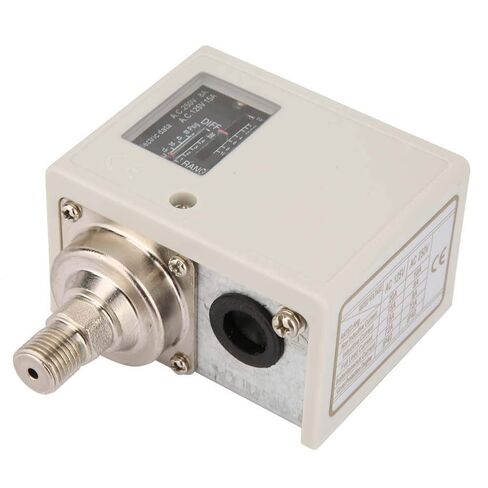

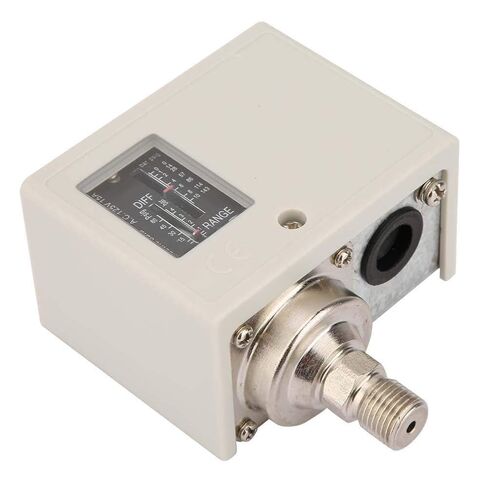

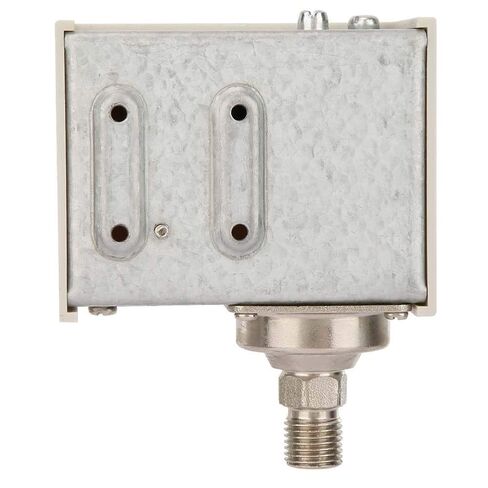

24V~380V Pressure Switch，Electronic G1/4" Pressure Control Switch Air Compressor Pressure Controller for Air Water Compressor Pressure Switch

KWD 8.500
KWD 9
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Applicable Medium]The pneumatic switch is suitable for non-corrosive media such as freon, air and liquid. Make sure the switch is accurate: Single-pole double-throw switch ensures switch
  • [Easy to install]This electronic pressure controller is equipped with mounting bracket and screw, easy to install, please make sure that the model matches the parts you replace
  • [High Quality]The pressure controller is made of high quality materials, the standard type of pressure bellows are made of -copper bellows, and the pressure joints are made of brass. refrigerant type bellows and pressure joints are made of stainless steel
  • [Stability]The product is debugged after 2000 actions, which makes the parts of the whole machine run in and ensures the performance of the product is more stable

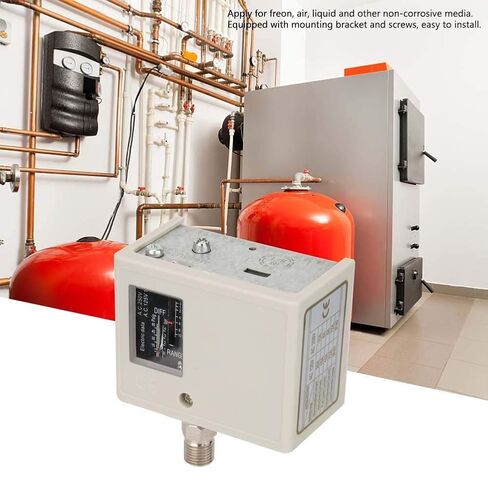

  • [Application]Suitable for boilers, ships, refrigeration equipment, medical equipment, high-frequency welding machine with any other pressure control system, the pressure of gas, steam, or liquid for two-way control

Description

24V~380V Pressure Switch，Electronic G1/4” Pressure Control Switch Air Compressor Pressure Controller for Air Water Compressor Pressure Switch

Specification:
Material: Stainless steel, iron plated , plastic
Weight: 408g/14.4oz
Thread: G thread
Pressure regulating range (bar): 1 (Min) ~ 10 ()
Differential pressure adjustment range (bar): 1(Min) ~ 3 ()
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times

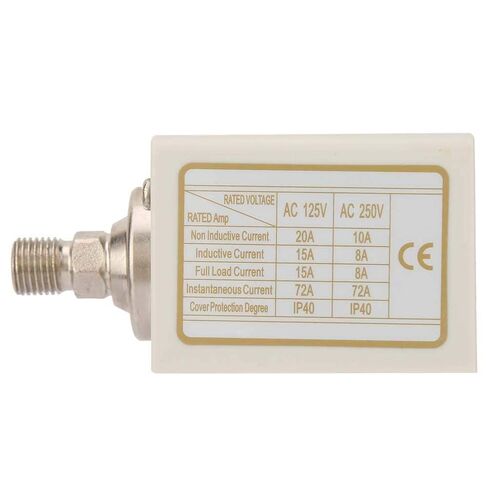

Electrical parameters:
When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.

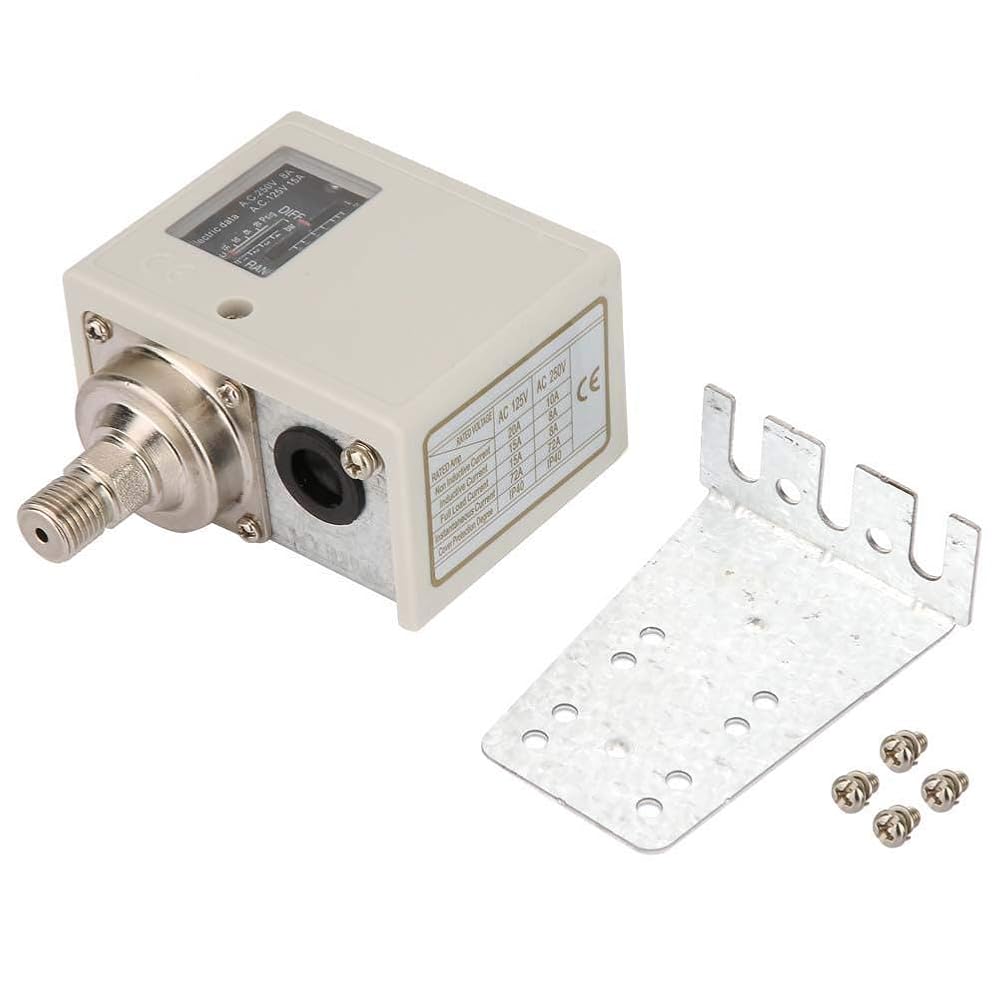

Package List:
1* Pressure Control Switch

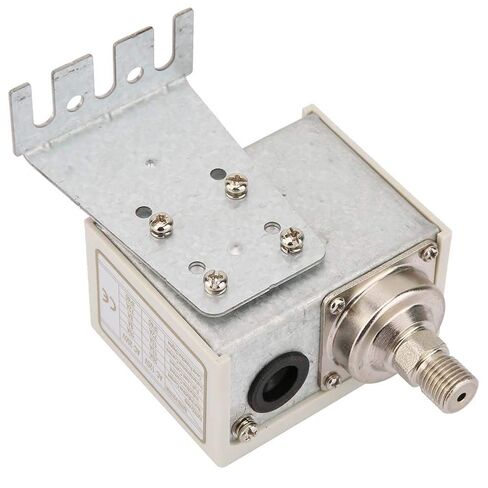

1* Mounting bracket
4* Screw
1* Instructions
