Specification:

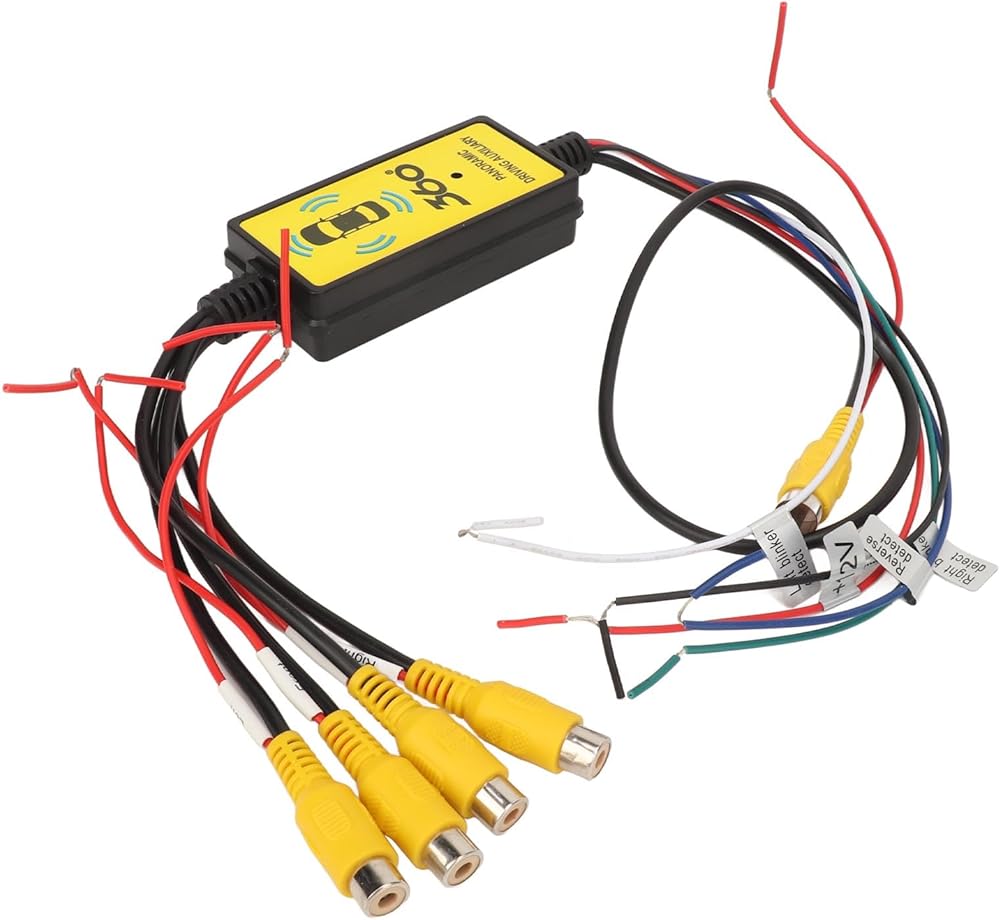

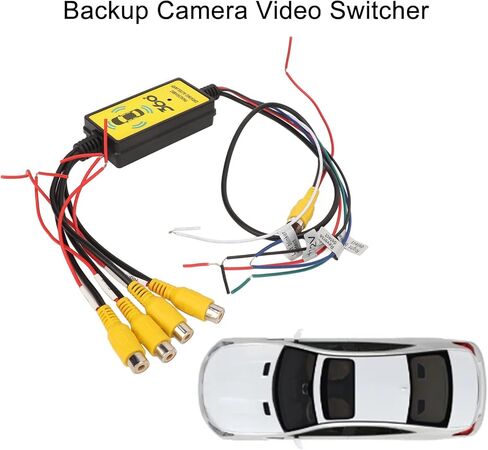

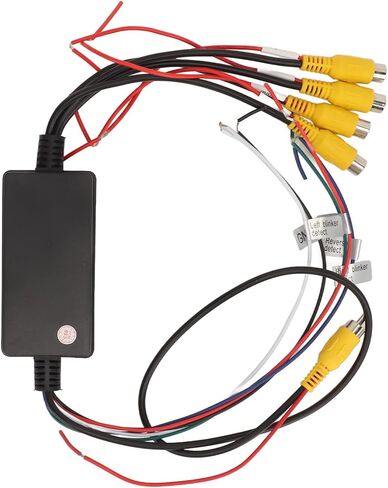

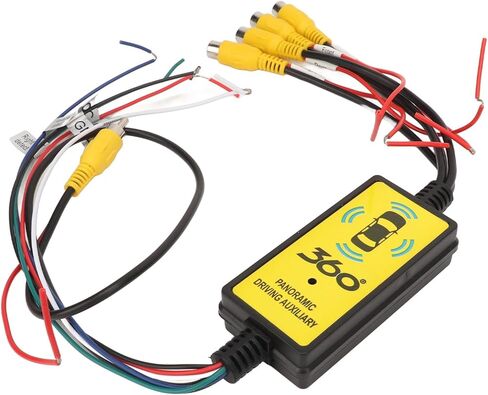

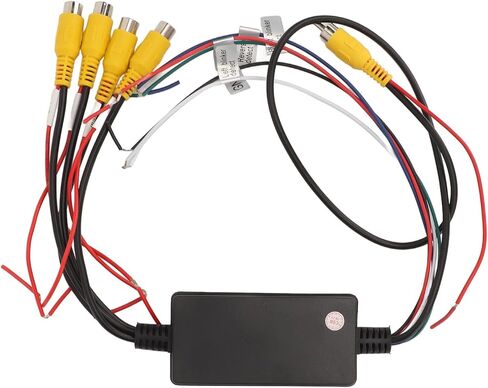

Item Type: Backup Camera Video Switcher
Material: ABS
Color: Black

Features:
- Four video inputs: Left View, Right View, Front View, and Rear View. Each video input has a +12V power supply.
- 4 video outputs share 1 video channel and a common power line.
- The display screen can show the correct video channel by opening the left or right turn or reversing when each camera is powered from the corresponding vehicle light. When you switch R to another gear, the display screen will show the front view for 7 seconds (optional). After 7 seconds, the video output will revert to the off state.

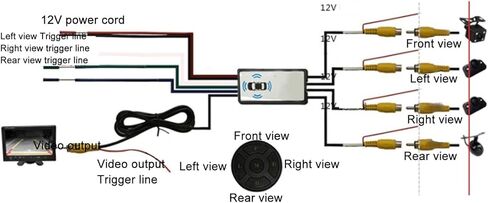

- Wire colors: +12V Power+ (Red), GND- (Black), Left Turn (White), Right Turn (Green), Reverse Light (Blue).
- Designed with power circuit for camera and vehicle circuit .

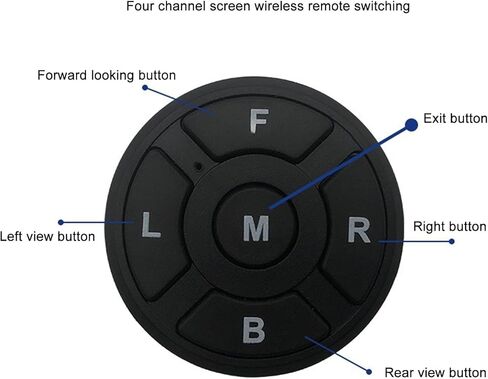

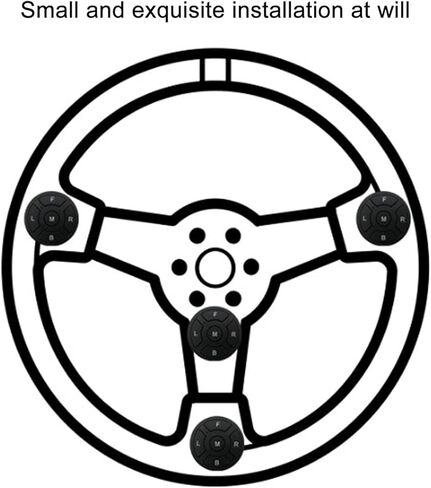

- remote control.
- Wide voltage input range: VCC 8-16V. If used in a truck, a 24V to 12V transformer can be used.

Description:

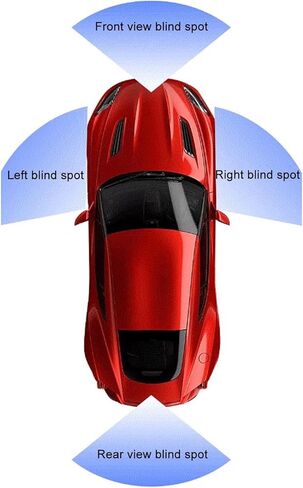

The 4 in 1 Smart 360 Panoramic Switcher should add more video inputs to the cameras when connecting to different vehicle interfaces. It is a DIY solution for easy installation customers. Pair it with a decoder and use a DVD or in-car display to solve blind spots in the vehicle.
Fitment:
Suitable for cars, trucks, SUVs, and more

packing list:
1 x Backup Camera Video Switcher
1 x Remote Control
