Features:
High Ripple Current,Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.Capacitance: Don't change the capacitance.
2.Voltage: You can go higher, but don't go lower.
3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name : Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: High Ripple Current,Low Impedance.
Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
Rated Voltage: 50V;
Capacitance: 1000uF;
Capacitance Tolerance: ±20%(120Hz,+20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 2640mA;
Maximum Impedance(ohm) at 20℃ 100KHZ: 0.021;
Standard Load Life: 3000hrs

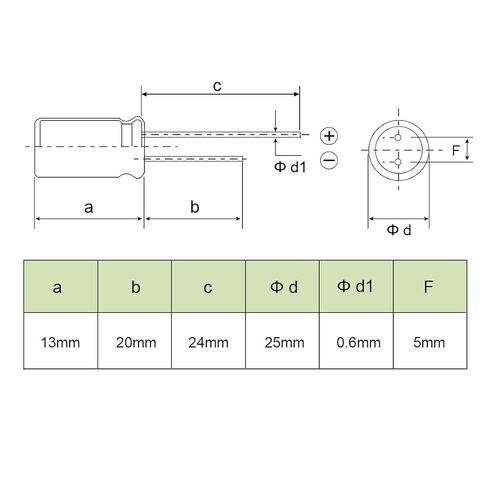

Body Size: 13 x 25mm/0.51" x 0.98"(D*L);
Lead Length: 24mm/0.94", 20mm/0.79";
Lead Pitch : 5mm/0.2"
Lead Diameter :0.6mm

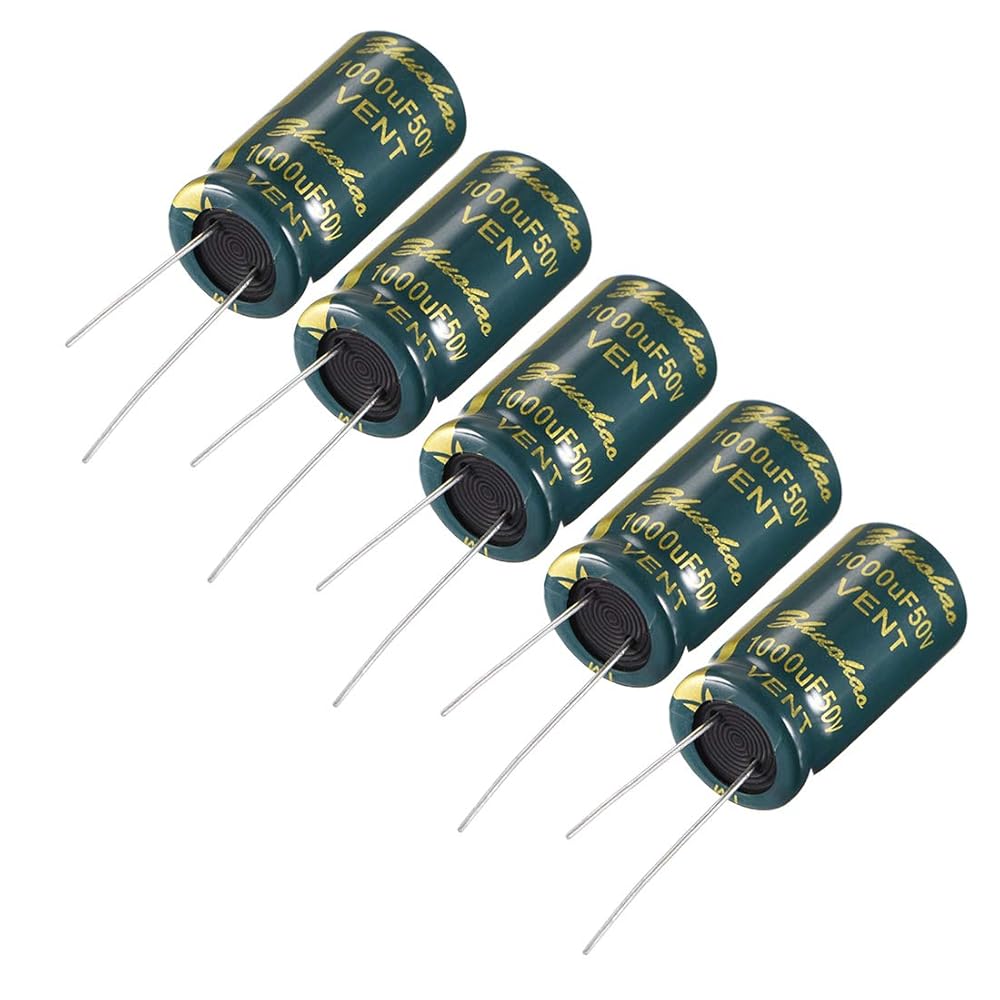

Size : 5pcs 1000UF 50V 13x25mm
Package Content : 5 x Electrolytic Capacitors
