Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait Nema 23 Stepper Motor 3PCS 1.8 Deg(2000steps/rev) 2500mNm/354.03oz.in 81.5MM Bipolar 5.0A High Torque 57 Motors 2 Phase 4 Lead Step Motor for 3D Printer CNC Machine, 2.24x2.24x3.21in in Kuwait

Nema 23 Stepper Motor 1350mNm/191.17oz.in 2000steps/rev 55MM(2.17in) Bipolar 4.2A High Torque 57 Motors 2 Phase for 3D Printer CNC Milling Engraving Machine Automation, 2.25x2.25x2.17inch

KWD 10
KWD 11
Size2.25x2.25x2.17 inch
Number of Items1
– 1 +

Special Features

  • [Introduction]:The Nema 23 stepper motor is widely used in CNC machines, 3D printers, laser engraving equipment, medical devices, and other automation systems. Its compact size and high torque make it suitable for various demanding applications.
  • [Specifications]: Body Length: 81.5MM / 3.21inch; Step Angle: 1.8 degree; Phase: 2; Holding Togque: 2500mNm (354.03oz.in); Rotor Inertia: 530g.cm²; Weight: 1.1kg.Rated Current: 5.0A; Phase Resistance: 0.55Ω; Phase Inductance: 1.8mH.

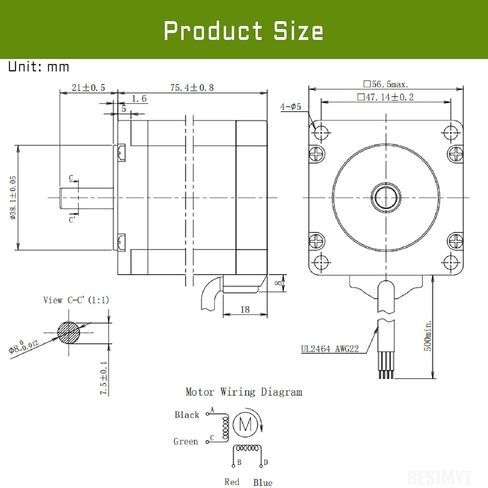

  • [Size]: Positional Accuracy(no-load): ±0.09°Max, Shaft Diameter: Φ 5mm ( D Shaft Φ 4.5mm ), 57x57x81.5MM / 2.24x2.24x3.21in, Shaft Length: 24mm, 2 phase, 4 wires: Black (A), Green (C), Red (B), Blue (D).
  • [Superior Performance]: By combining high precision and high torque, the NEMA 23 stepper motor delivers exceptional performance and is widely favored in various industrial and commercial applications.
  • [Packing Set]: Include 3PCS 81.5MM Nema 23 stepper motor with 3 black cables. If you have any concerns or questions during the purchasing process, feel free to contact us.
