مميزات خاصة

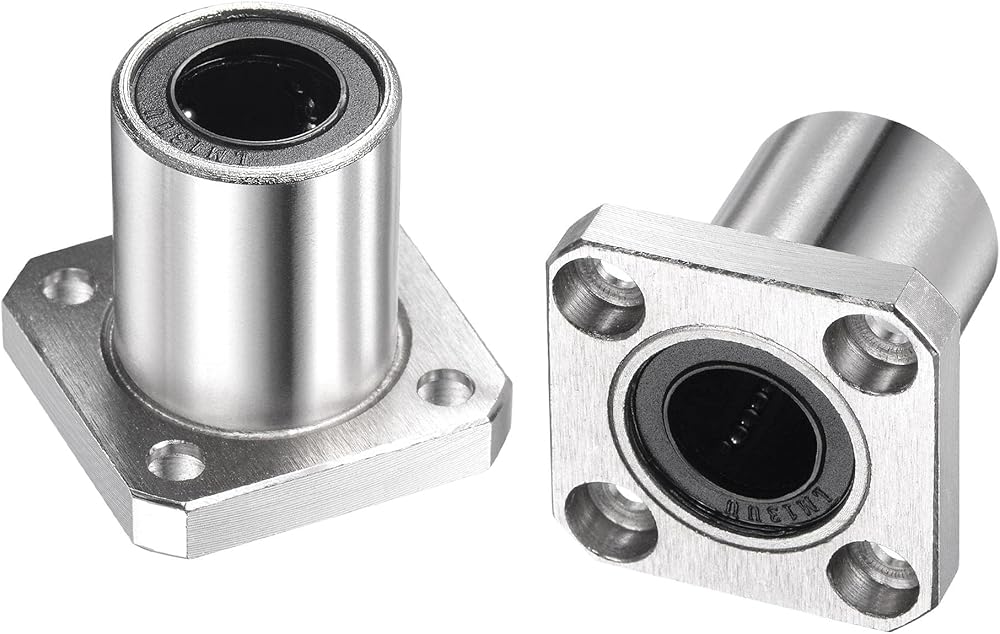

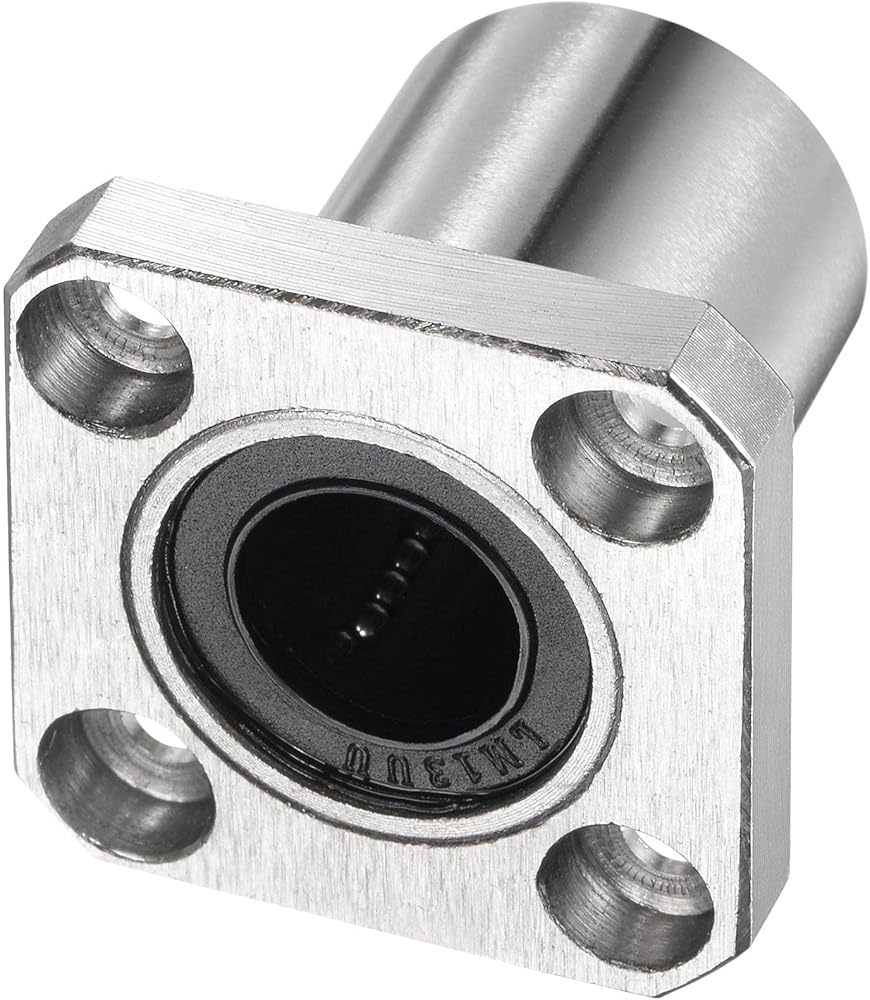

[SIZE] - Model: LMK6UU, 6x12x19mm Metric Double Seal Chromium Steel Linear Bearing, 22mm x 22mm Square Flange Base
[USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
[FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions
[CAPABILITY] - Static Load Capacity (Cor): 265N, Dynamic Load Capacity (Cr): 206N (Recommended load is 80% of rated load, not to exceed rated load.)
[APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.

وصف

Descriptions:
Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.
Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

Specifications:
Model: LMK6UU

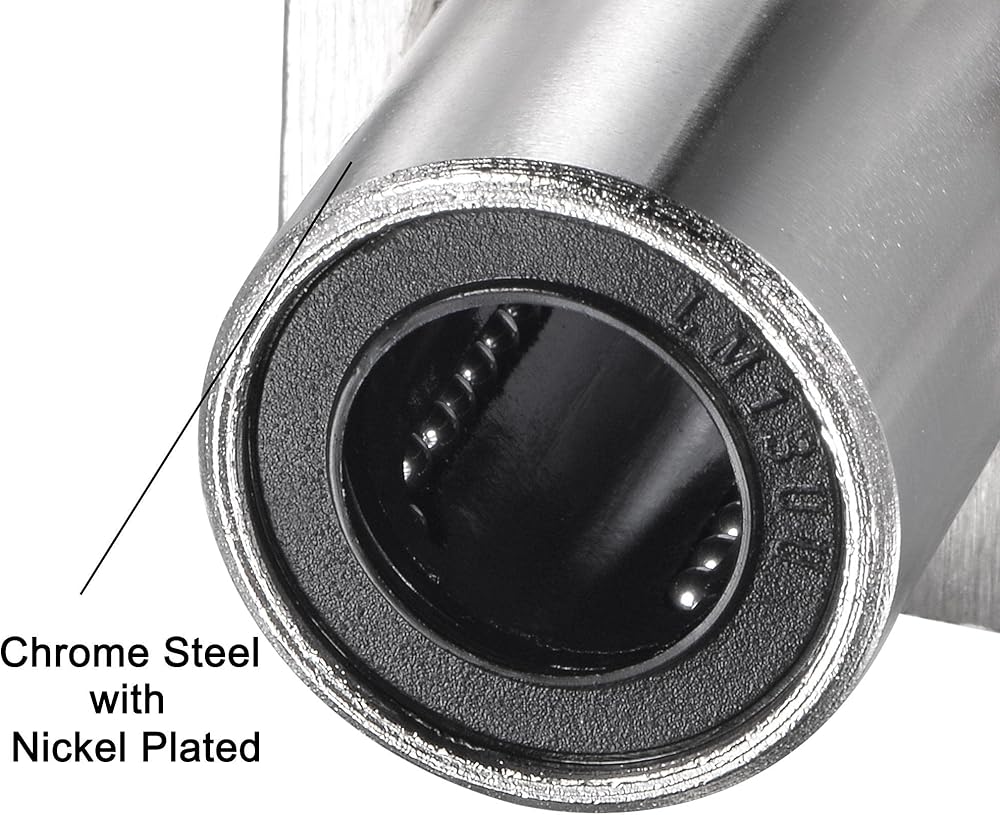

Housing Material: Chrome Steel
Finished: Nickel Plated
Inner Diameter: 6mm
Outer Diameter: 12mm
Total Length: 19mm
Flange Size: 22 x 22 x 5mm (L*W*T)
Static Load Capacity (Cor): 265N
Dynamic Load Capacity (Cr): 206N

Package Contents:

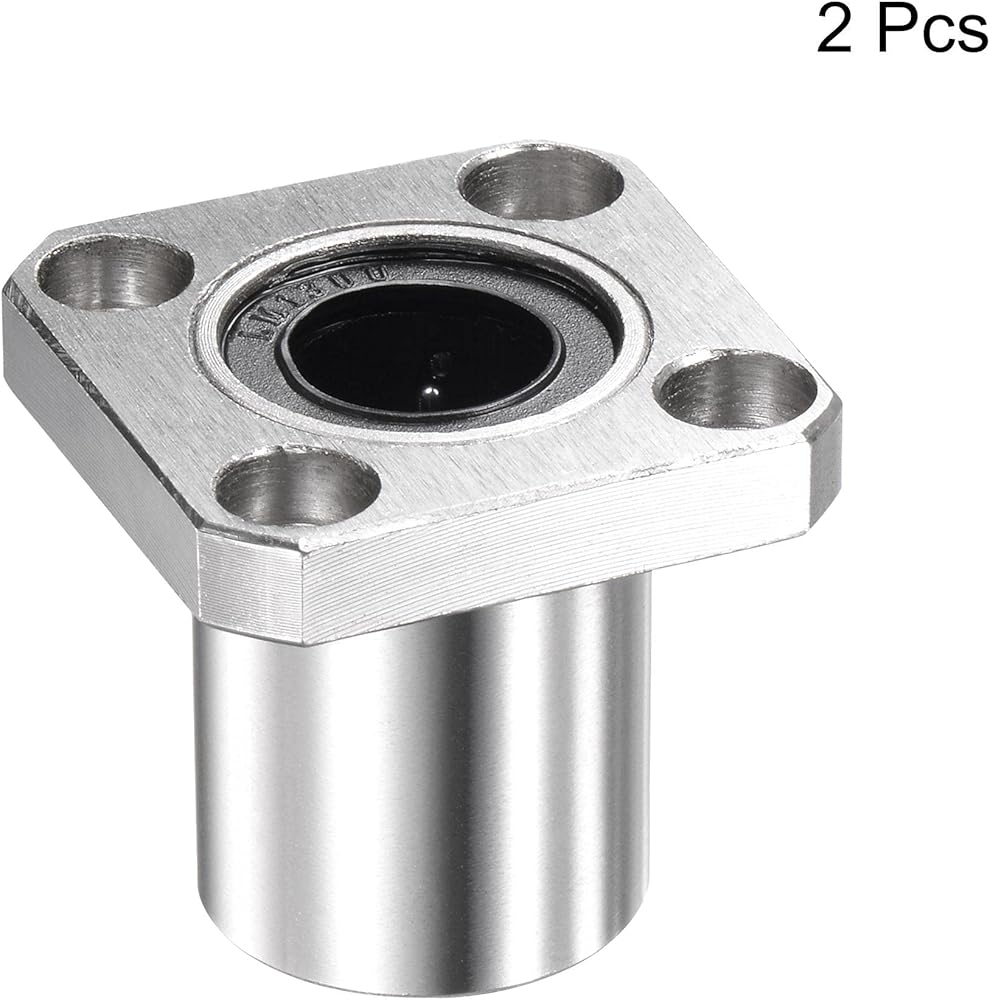

2 x Linear Bearings

مرحبًا،

بحث

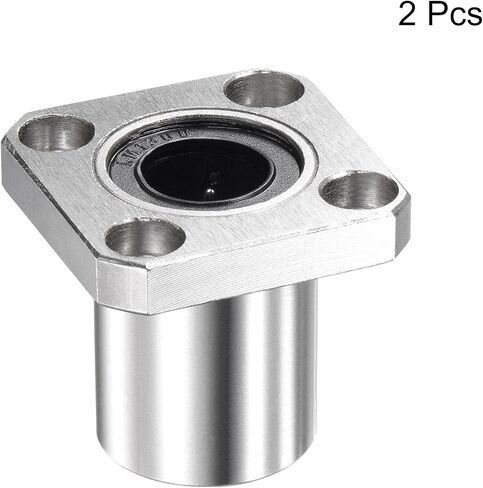

Uxcell LMK6UU الخطي الكرات 6 مللي متر تتحمل 12 مللي متر OD 19 مللي متر طول مربع شفة النيكل مطلي ل ماكينة بتحكم رقمي بالكمبيوتر طابعات ثلاثية الأبعاد 2 قطعة
