Material and electroplating
Spacing: 3.81mm
Number of poles: 2P
Screw: M2, steel, galvanized
Contact material: phosphor bronze, nickel plated
Square buckle: brass, nickel plated or steel, galvanized
Plastic part: PA66.UL94V-0

Electrical performance
Rated voltage: 300V
Rated current: 8A Withstand voltage: AC2000V / 1min
Used wire diameter: 28-16AWG

Mechanical properties
Temperature range: - 40 ° C ~ + 105 ° C
Instantaneous temperature: 250 ° C 5S
Torque: 0.2nb (1.8lb. In)
Stripping length: 7mm

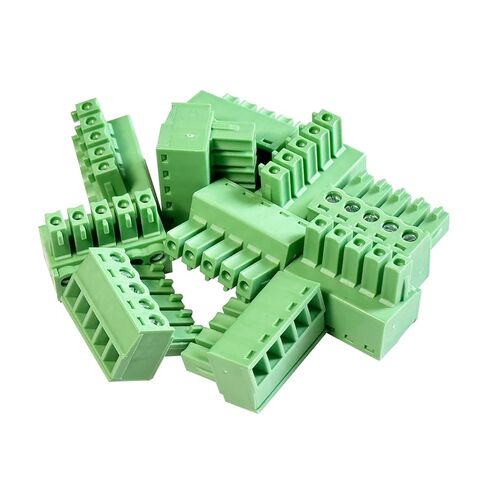

Package Content: 20pcs x 2 Pin 3.81mm Pitch PCB Terminal Block Connector Socket

These PCB screws are snap together well.have a quick release capability.Just need to loosen the screws to land the wires.Use high-quality plastic PA66 high temperature resistant V0 flame retardant,steel screw environmentally friendly electroplating,no slippage.

It is installed on the PCB board, Used widely in the electronics, communication equipments, instruments, calculator, automatic control system, domestic appliance and warning devices, PCB wiring, IC Socket, DIY PCB Universal Board, Dupont Line, Digital tube, PIC Programming unit, AVR ATMEL Programming unit,Connector Kit, USB to TLL Modules, Power Modules, RS232 TO TLLModule,Crystal Oscillator, buzzer, LCD Modules,Dupont Line,etc.
