Special Features

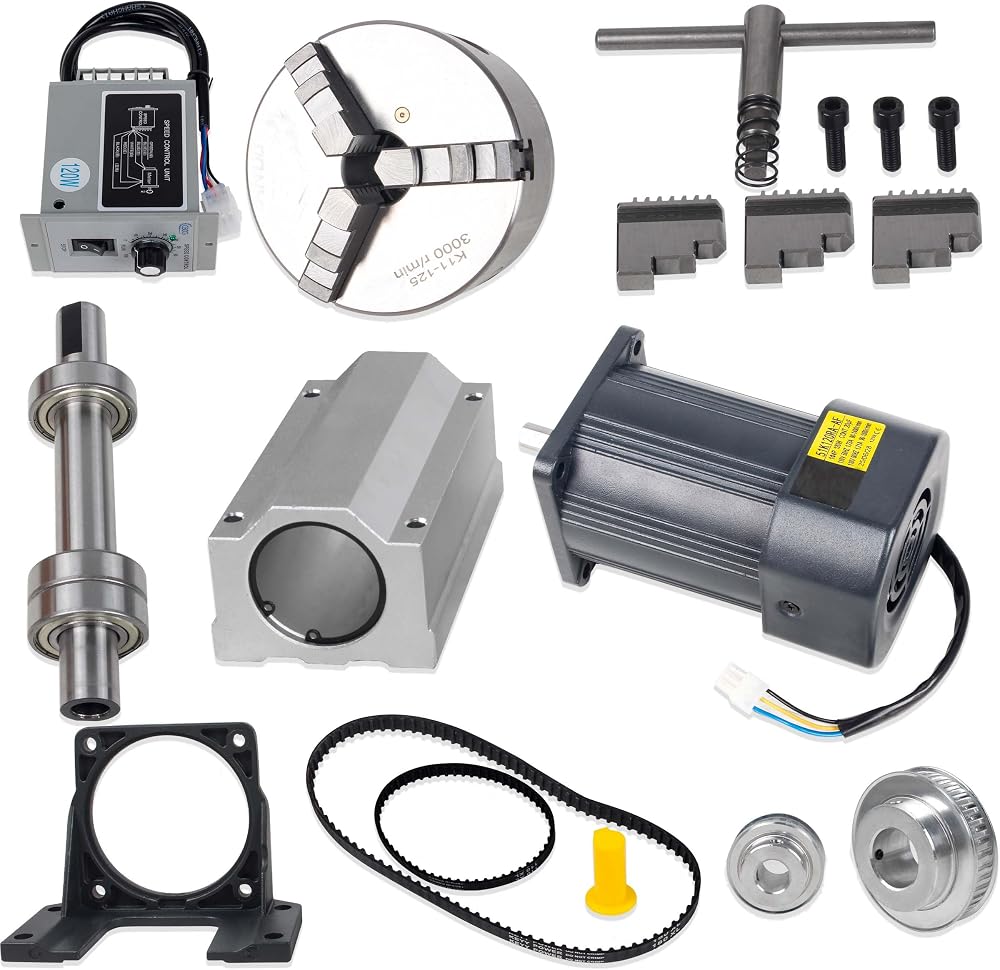

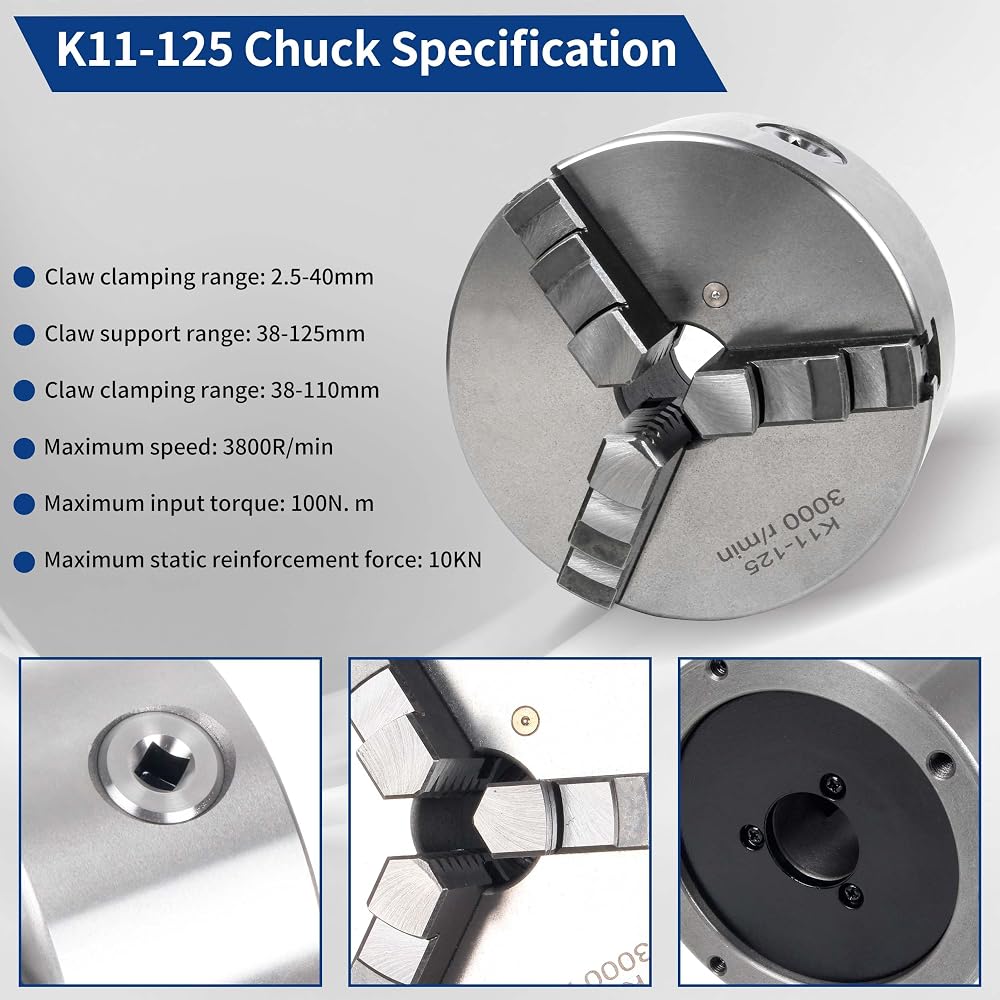

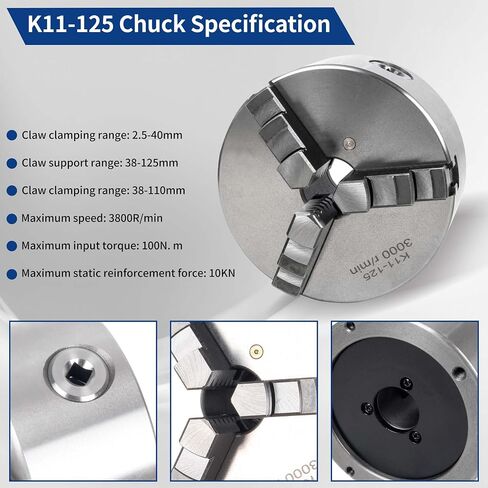

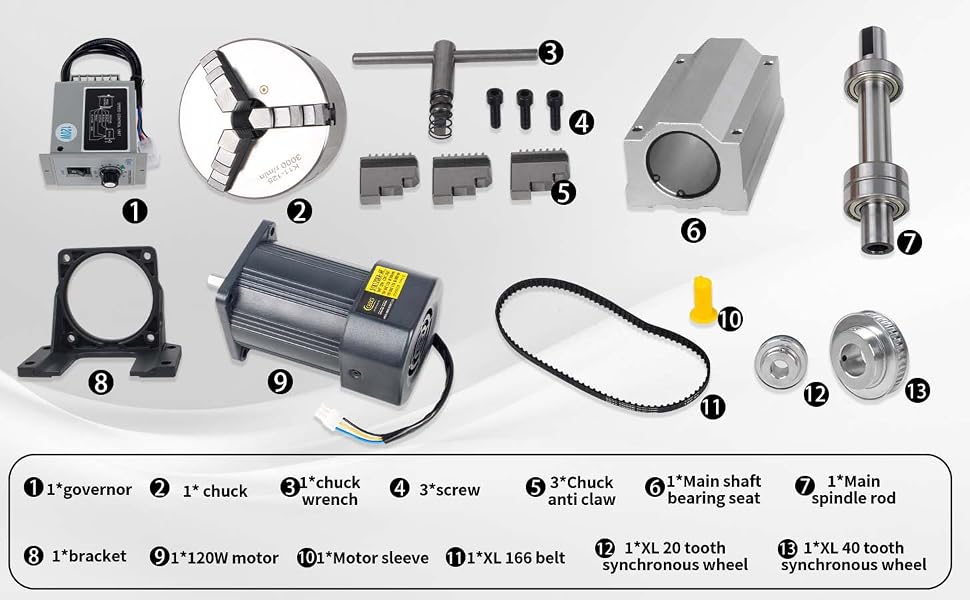

✅【125mm Three-Jaw Self-Centering Chuck】Chuck diameter: 125 mm (approx. 5 inches); three-jaw self-centering design; compatible with standard small lathe spindle flanges; clamping range: 2–125 mm (with forward/reverse jaw switching); capable of clamping round and hexagonal workpieces. Repeatability is typically within the range of 0.02–0.05 mm, making it suitable for small-scale precision machining.

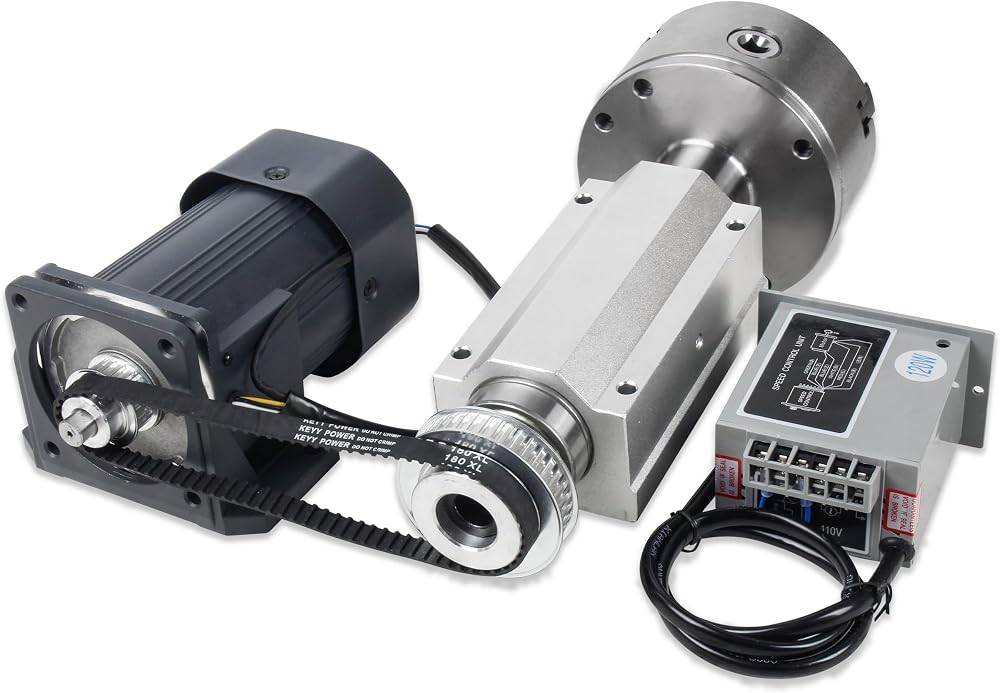

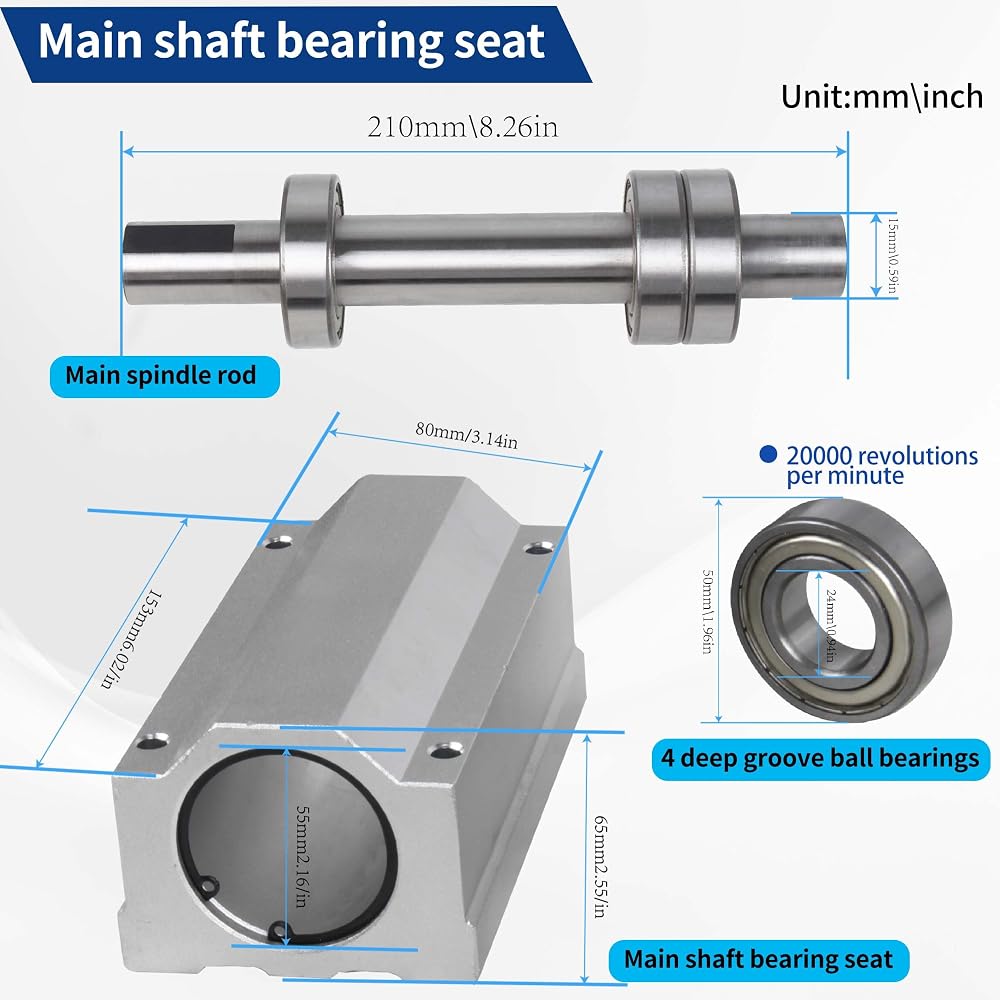

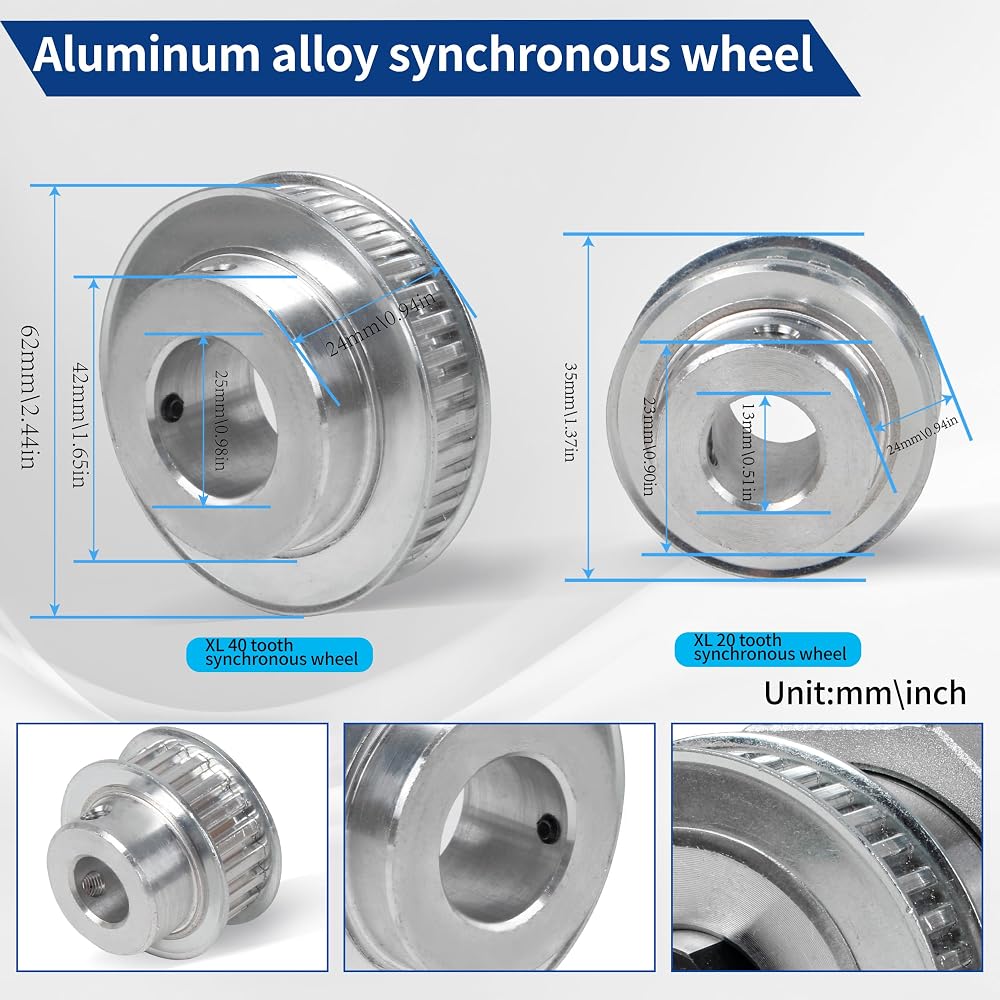

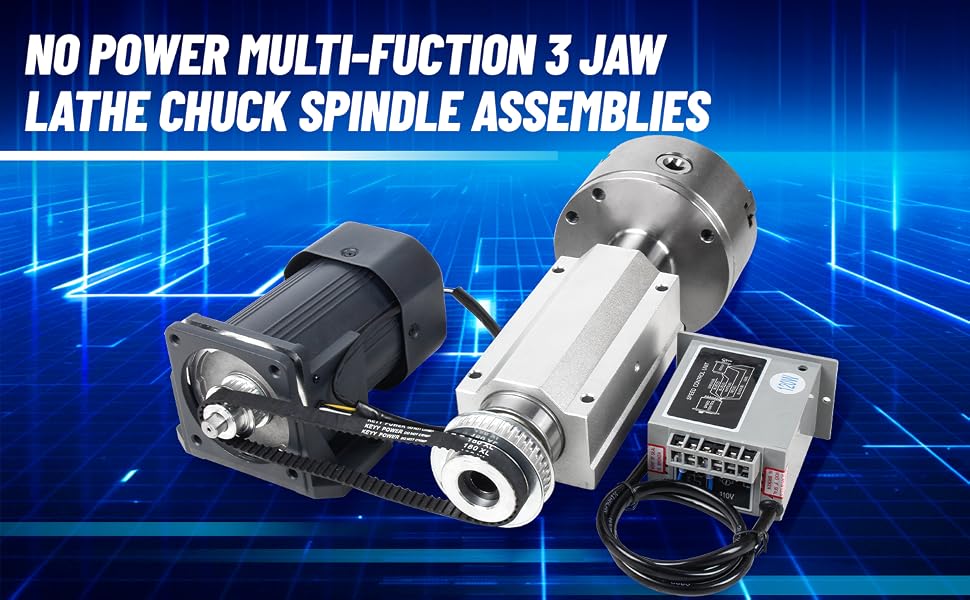

✅【Spindle Assembly】Aluminum alloy housing + precision bearing assembly + synchronous pulley + spindle shaft, integrating rotary support, power transmission, and chuck mounting functions. The spindle bore is typically 15 mm; if machining long workpieces, the maximum bar diameter is strictly limited to 14 mm. Compared to direct-drive motors, synchronous belt drives offer shock absorption, overload protection, and flexible speed ratio adjustment, allowing for reduced spindle speed and increased output torque, making them suitable for small-scale machining applications.

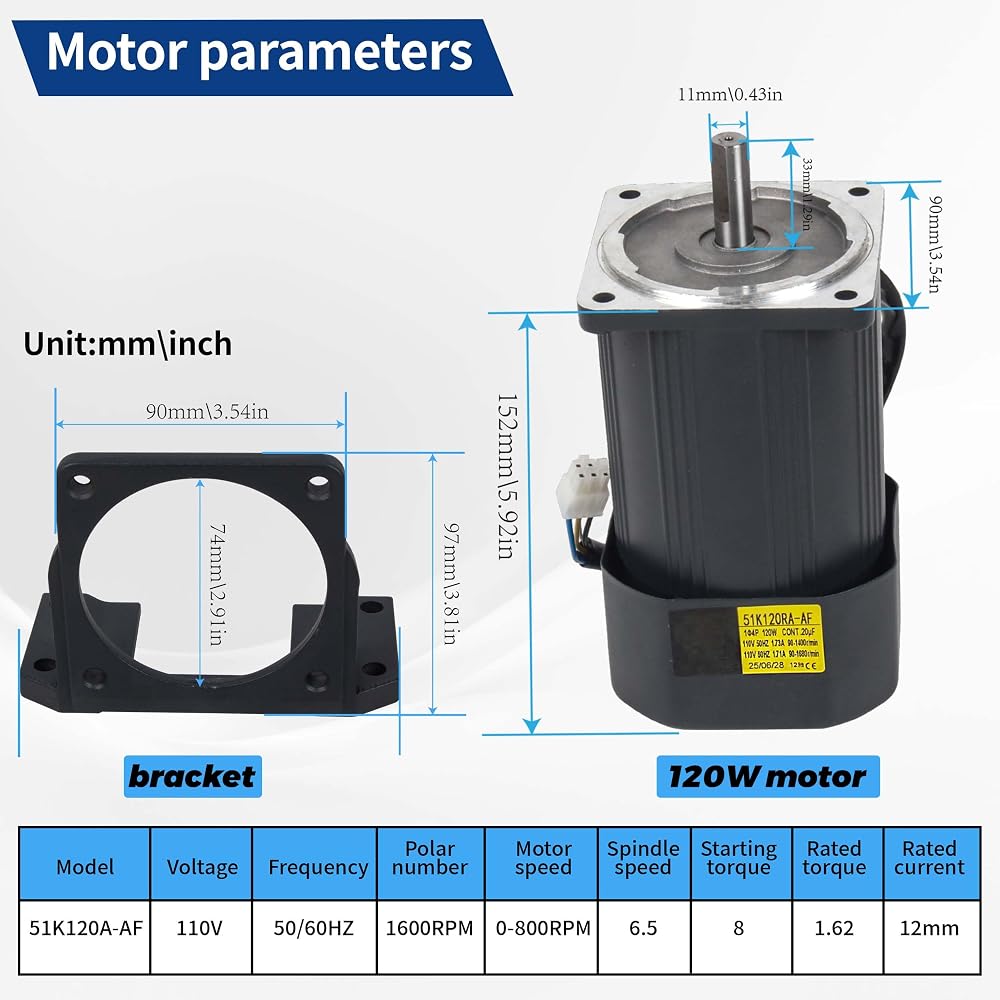

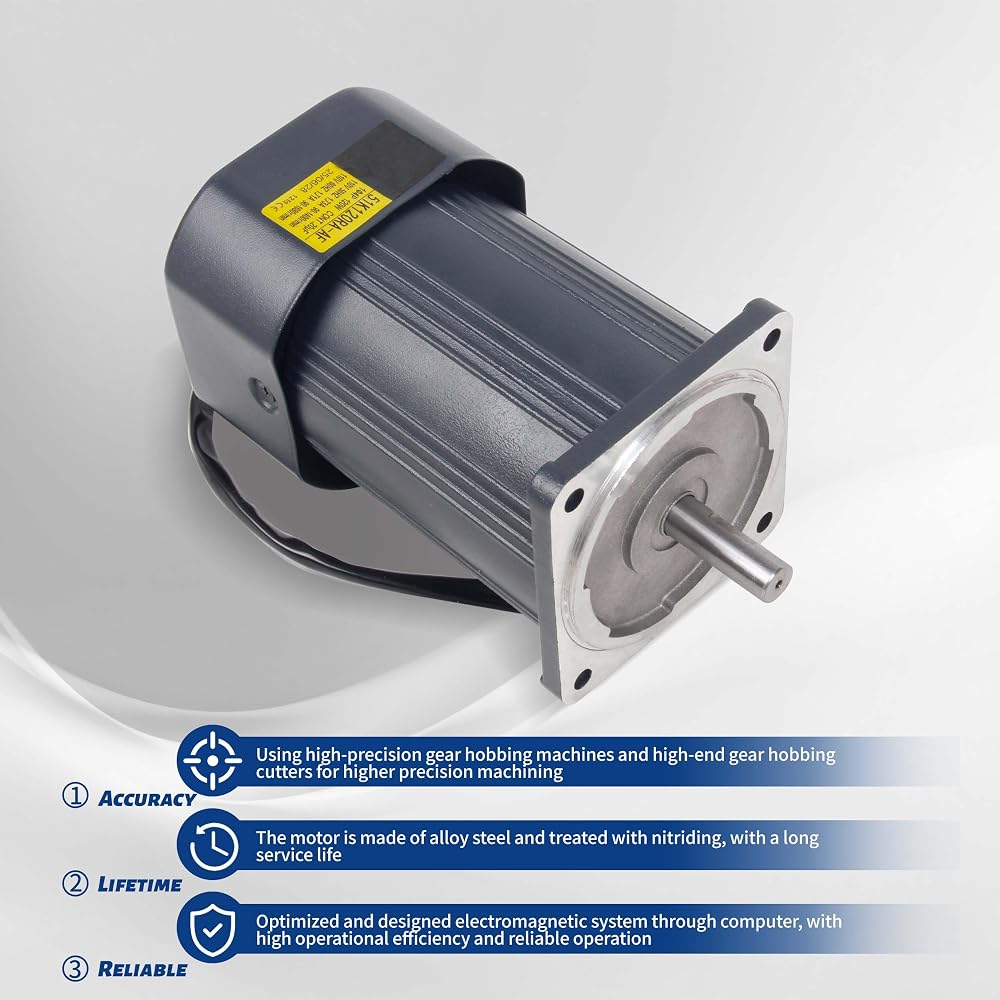

✅【120W Speed control motor】Model: 51K120A-AF; Voltage: 110V; Frequency: 50/60HZ; Number of poles: 4; Motor speed: 1600rpm; Spindle speed: 0-800rpm; Starting torque: 6.5; Rated torque: 8; Rated current: 1.62; Output shaft diameter: 12mm.

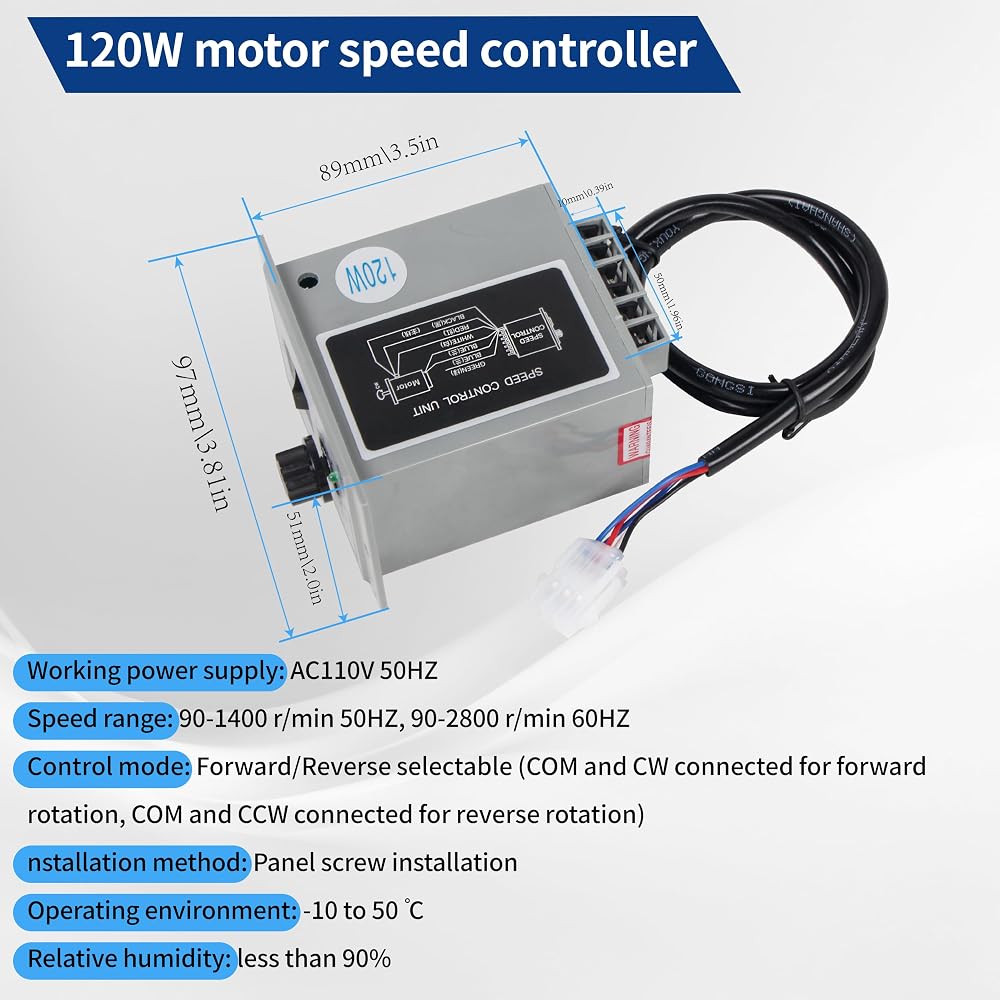

✅【Motor speed controller】Working power supply: AC110V 50HZ; speed range: 90-1400 r/min 50HZ, 90-2800 r/min 60HZ; control mode: forward/anyway selectable (COM and CW connected for forward rotation, COM and CCW connected for reverse rotation).Single-phase motor speed controller that enables stepless speed control by adjusting voltage or frequency, featuring a start/stop switch and a 0–100% speed control knob.
✅【Wide Range of Applications】Perfect for DIY mini lathes, woodworking lathes, instrument lathes, educational equipment, as well as turning, drilling, and grinding small parts. Suitable for DIY turning, grinding, and polishing of small, lightweight, and soft materials (such as wood, plastic, aluminum, and copper).
