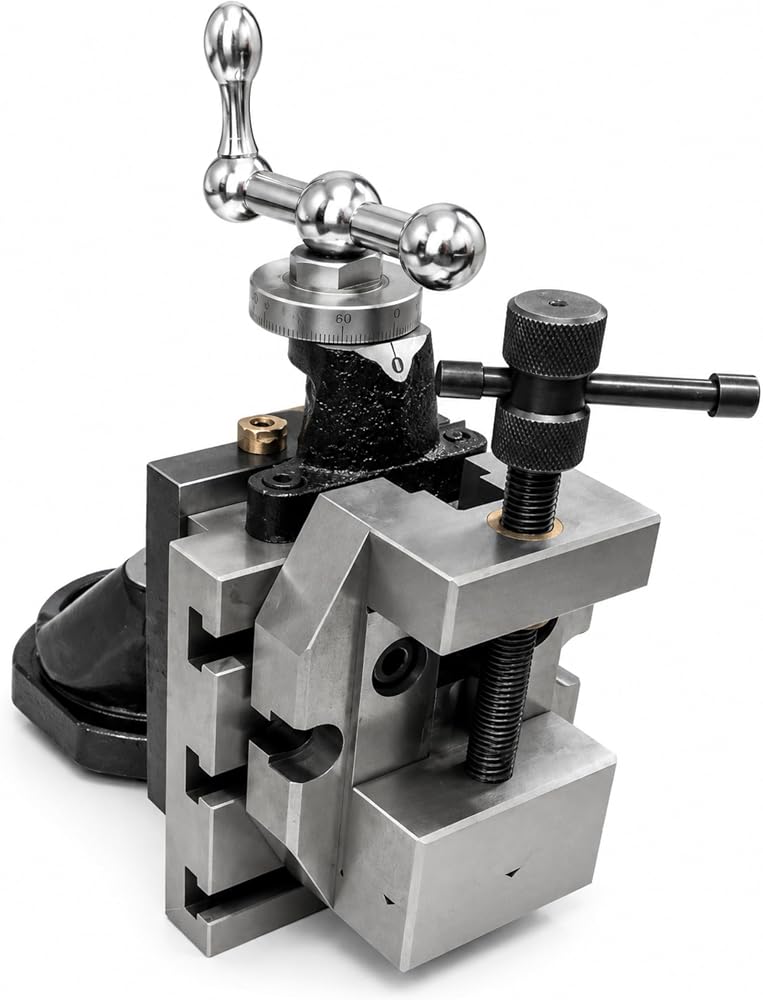

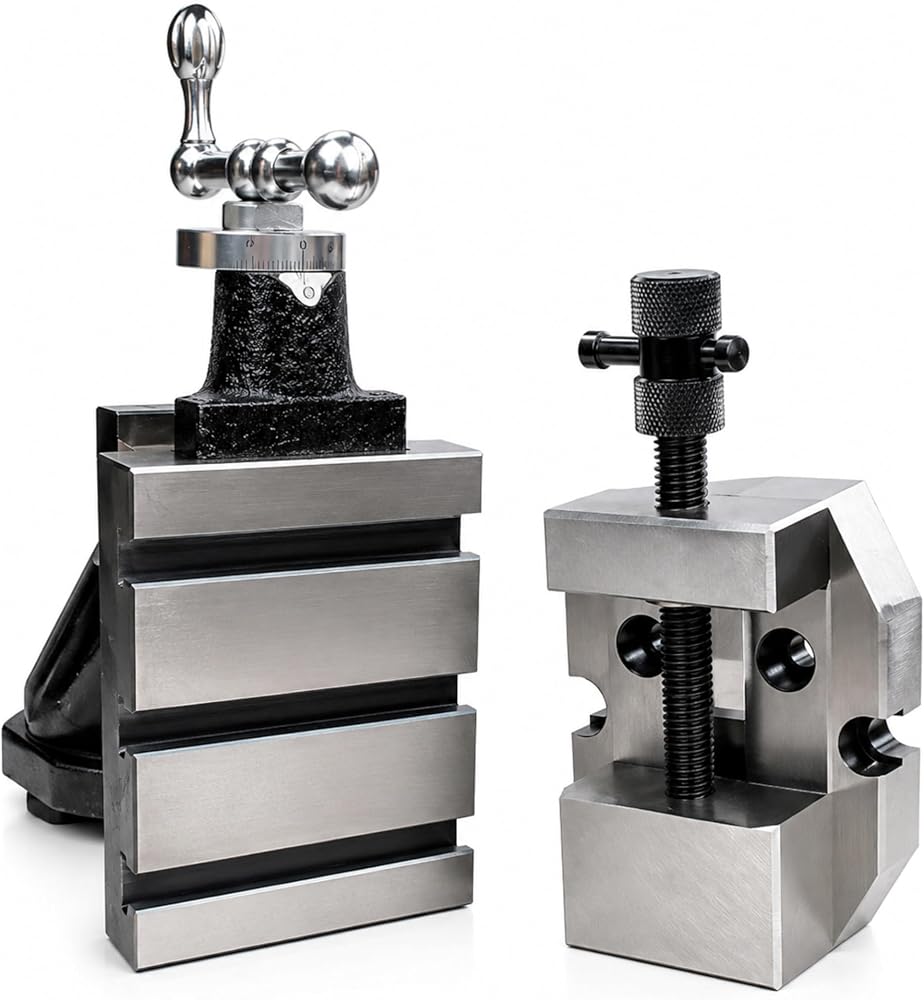

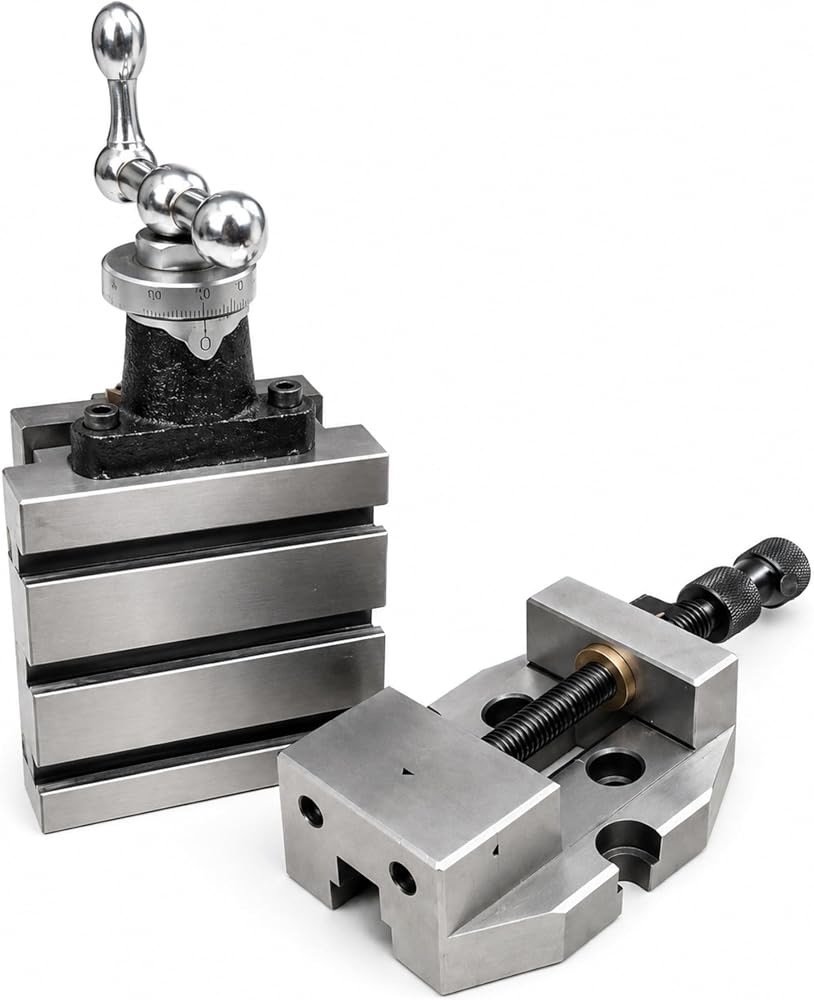

Buyohlic New Lathe Milling Vertical Slide Swivel 4"x5" (100X125mm) with 60mm Steel Grinding Vice in Kuwait Buyohlic New Lathe Milling Vertical Slide Swivel 4"x5" (100X125mm) with 60mm Steel Grinding Vice in Kuwait Buyohlic New Lathe Milling Vertical Slide Swivel 4"x5" (100X125mm) with 60mm Steel Grinding Vice in Kuwait

Buyohlic New Lathe Milling Vertical Slide Swivel 4"x5" (100X125mm) with 60mm Steel Grinding Vice

KWD 72
Brand
BUYOHLIC
Weight
8 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Use of Item- A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment.
  • Base Type: Size: 125 mm x 100 mm Provides a substantial working area for a variety of milling operations.
  • Slots for Clamping: 3 slots in the base allow for secure clamping down. Pitch Circle Diameter (PCD): 46.19 mm Facilitates robust and stable attachment to the lathe.
  • Construction: Made from high-quality materials ensuring durability and longevity. Precision-engineered for stability and accuracy during milling.
  • Usability: Suitable for both hobbyists and professional machinists. Enhances the milling capabilities of the Super 7 ML7 lathe.
  • Construction: Made from high-quality Tool steel for durability and longevity. Precision-engineered to withstand the demands of milling operations.
  • Steel Grinding Vice - 2-3/8" (60mm) : Jaw Width: 2-3/8" (60mm) Maximum Jaw Opening: 50mm Distance between Mounting Slots: 75mm Distance between Mounting Holes: 45mm Height (Horizontal Orientation): 45mm Height (Vertical Orientation): 110mm Base Dimensions: 110mm (Length) x 85mm (Width)

Description

A combination of a vertical slide and a grinding vice is typically used in machining and grinding applications to enhance precision and flexibility. Together, they enable complex machining operations, such as precise grinding of specific features on a workpiece, by allowing for both vertical and horizontal positioning and movement. Vertical slide Dimensions: Size: 125 mm x 100 mm Provides a substantial working area for a variety of milling operations. Base Features: Slots for Clamping: 3 slots in the base allow for secure clamping down. Pitch Circle Diameter (PCD): 46.19 mm Facilitates robust and stable attachment to the lathe. Construction: Made from high-quality materials ensuring durability and longevity. Precision-engineered for stability and accuracy during milling. Usability: Suitable for both hobbyists and professional machinists. Enhances the milling capabilities of the Super 7 ML7 lathe. Applications: Ideal for milling, drilling, slotting, and other precise machining operations. Expands the functionality of the lathe, enabling vertical milling tasks. Precision Steel Grinding Vice - 2-3/8" (60mm) Jaw Width Specifications: Jaw Width: 2-3/8" (60mm) Maximum Jaw Opening: 50mm Distance between Mounting Slots: 75mm Distance between Mounting Holes: 45mm Height (Horizontal Orientation): 45mm Height (Vertical Orientation): 110mm Base Dimensions: 110mm (Length) x 85mm (Width)
