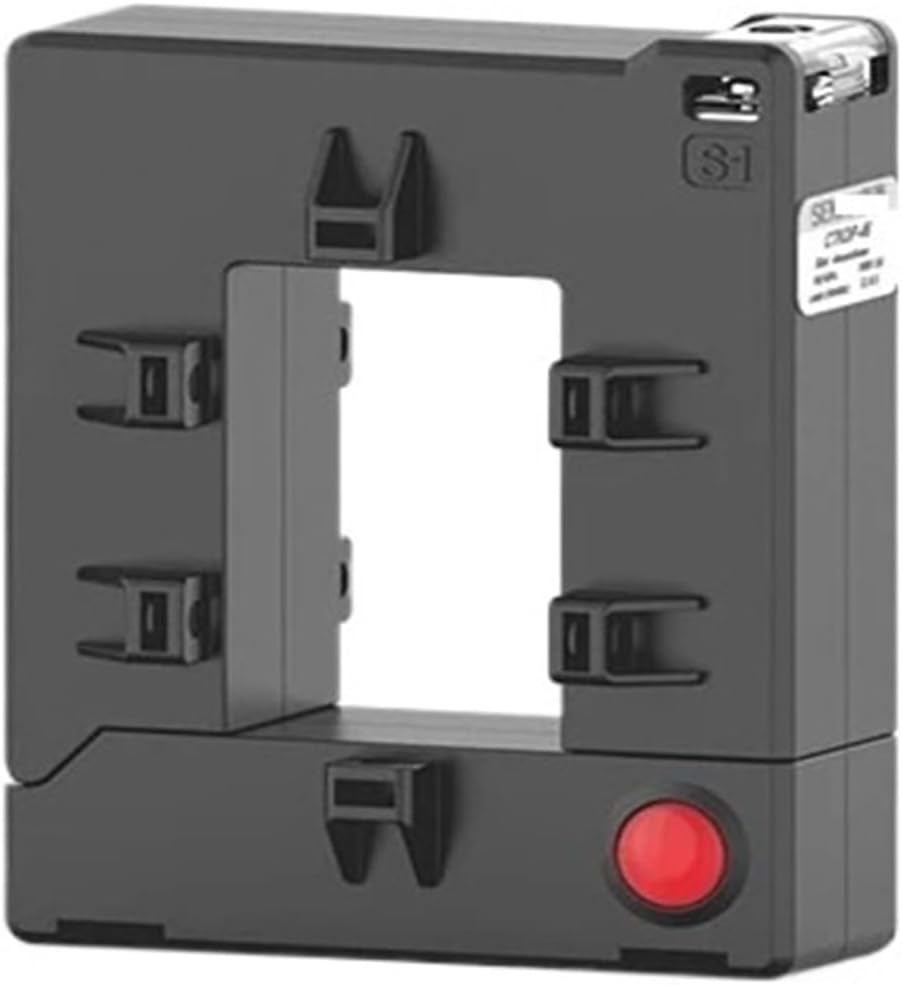

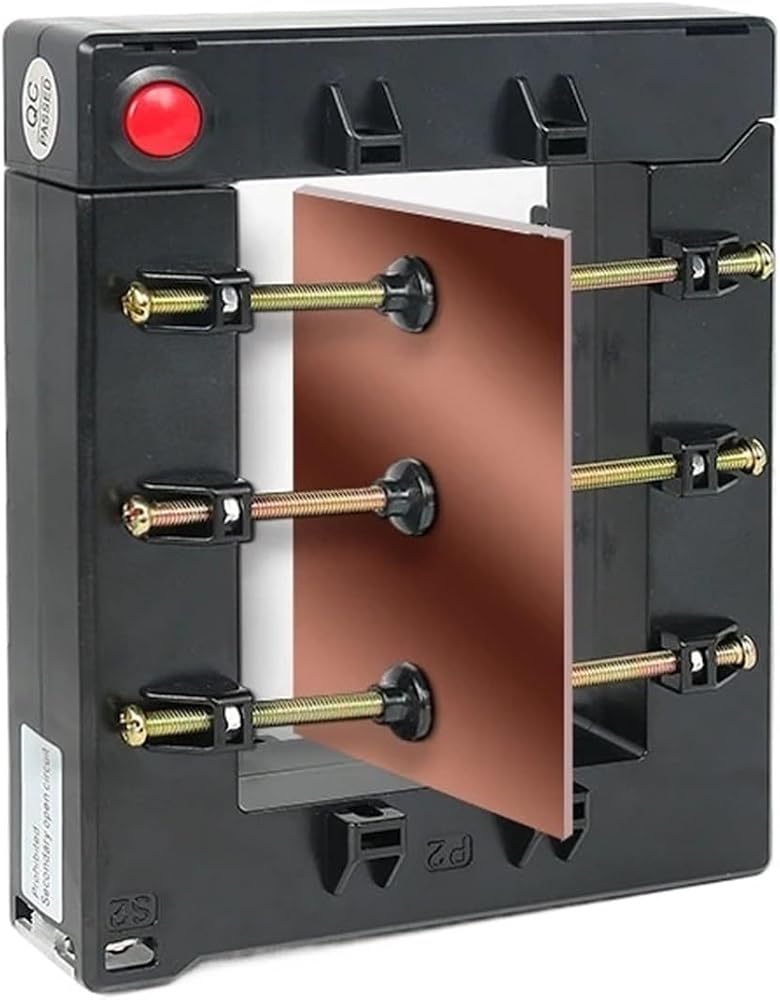

محول تيار سبليت كور محول تيار سبليت كور مفتوح النوع QNCTK2-58 500/5 600/5 800/5 1000/5 مستشعر التيار (QNCTK2-58 1200A 5A) in Kuwait محول تيار سبليت كور محول تيار سبليت كور مفتوح النوع QNCTK2-58 500/5 600/5 800/5 1000/5 مستشعر التيار (QNCTK2-58 1200A 5A) in Kuwait محول تيار سبليت كور محول تيار سبليت كور مفتوح النوع QNCTK2-58 500/5 600/5 800/5 1000/5 مستشعر التيار (QNCTK2-58 1200A 5A) in Kuwait

محول تيار سبليت كور محول تيار سبليت كور مفتوح النوع QNCTK2-58 500/5 600/5 800/5 1000/5 مستشعر التيار (QNCTK2-58 1200A 5A)

KWD 44.500
– 1 +

مميزات خاصة

  • GOOD PROPERTIES：Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, good and reliability
  • SNAP JOINT STRUCTURE：Using snap joint structure, the current sensor transformer can be fixed to the cable directly through nylon tiesgrade, convenient to use
  • Split Core Structural Advantage：Detachable core design eliminates the need for cable threading or power-off during installation, solving the pain point of difficult disassembly and assembly of traditional closed transformers, especially suitable for fixed cables in cable trays or existing circuits
  • Effortless Installation & Disassembly：No complex tools required, the core can be closed and fixed quickly by hand or with simple tools, reducing installation time to within 5 minutes; it is also easy to disassemble, making it convenient for temporary use or later maintenance
  • Stable operation：achieves electrical isolation between high-current main circuits and low-current auxiliary circuits, effectively preventing high-voltage hazards from affecting monitoring equipment and personnel, and proving highly effective in industrial and building electrical applications

وصف

Model Number : QNDBK2-58
Phase : SINGLE
Rated input : 300A 500A 600A ~ 6000A
Rated output : 5A 1A 333mA 333mV
Accuracy : 0.5 class
Working frequency : 50~400Hz
Rated voltage : 0.66/0.72KV
Compression strength : 2.5KV
