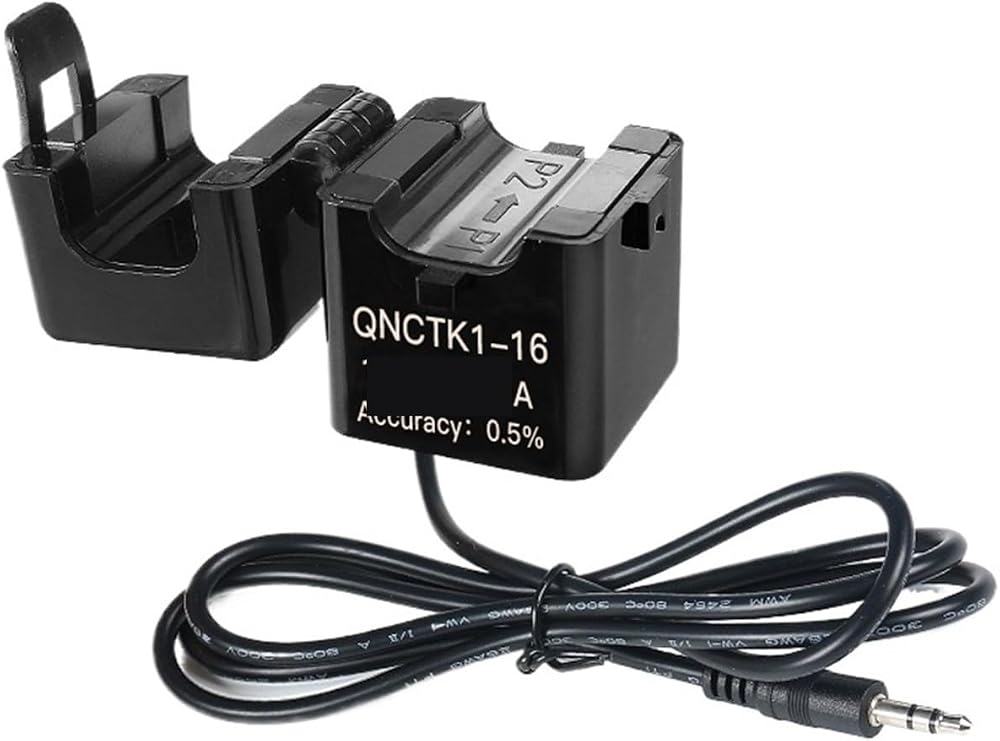

سبليت الأساسية محول التيار QNCTK1-16 1A 1V 10A 20A 0.333mV 100A 333mV المشبك محول التيار 100A/50mA (1A ، 1V) in Kuwait

1a 333mV

KWD 20
اللون1 أ
مقاس333MV
– 1 +

مميزات خاصة

  • GOOD PROPERTIES：Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, good and reliability
  • SNAP JOINT STRUCTURE：Using snap joint structure, the current sensor transformer can be fixed to the cable directly through nylon tiesgrade, convenient to use
  • Split Core Structural Advantage：Detachable core design eliminates the need for cable threading or power-off during installation, solving the pain point of difficult disassembly and assembly of traditional closed transformers, especially suitable for fixed cables in cable trays or existing circuits
  • Effortless Installation & Disassembly：No complex tools required, the core can be closed and fixed quickly by hand or with simple tools, reducing installation time to within 5 minutes; it is also easy to disassemble, making it convenient for temporary use or later maintenance
  • Stable operation：achieves electrical isolation between high-current main circuits and low-current auxiliary circuits, effectively preventing high-voltage hazards from affecting monitoring equipment and personnel, and proving highly effective in industrial and building electrical applications

وصف

Model Number : QNCTK1-10
Phase : SINGLE
Use : Current
Rated input : 1A 5A 10A 20A ~ 50A 100A 150A
Rated output : 0.1V , 0.2V , 0.333V , 0.707V , 1V , 2V , 3.3V , 5V
Accuracy : 0.5%
Linearity : 0.5%
Compressive strength : 2kV/50Hz/1min
Operating temperature : -40~+85
