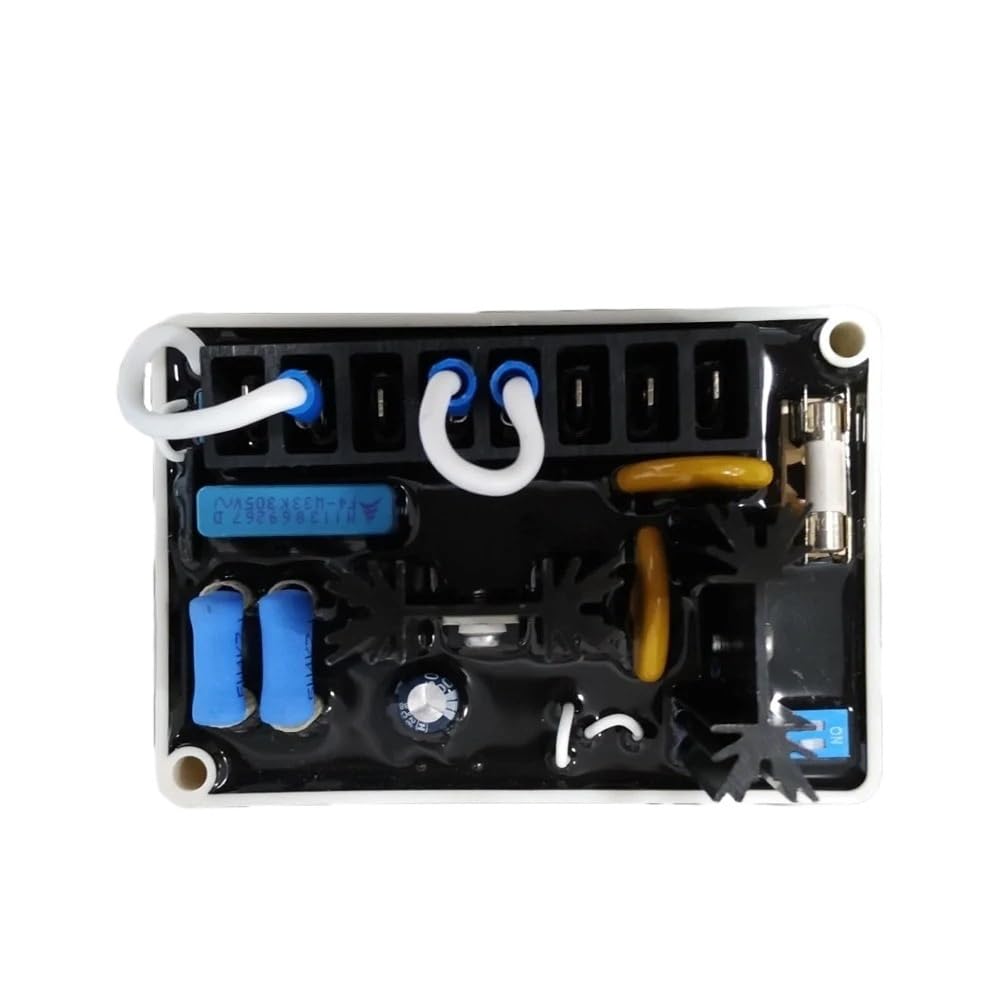

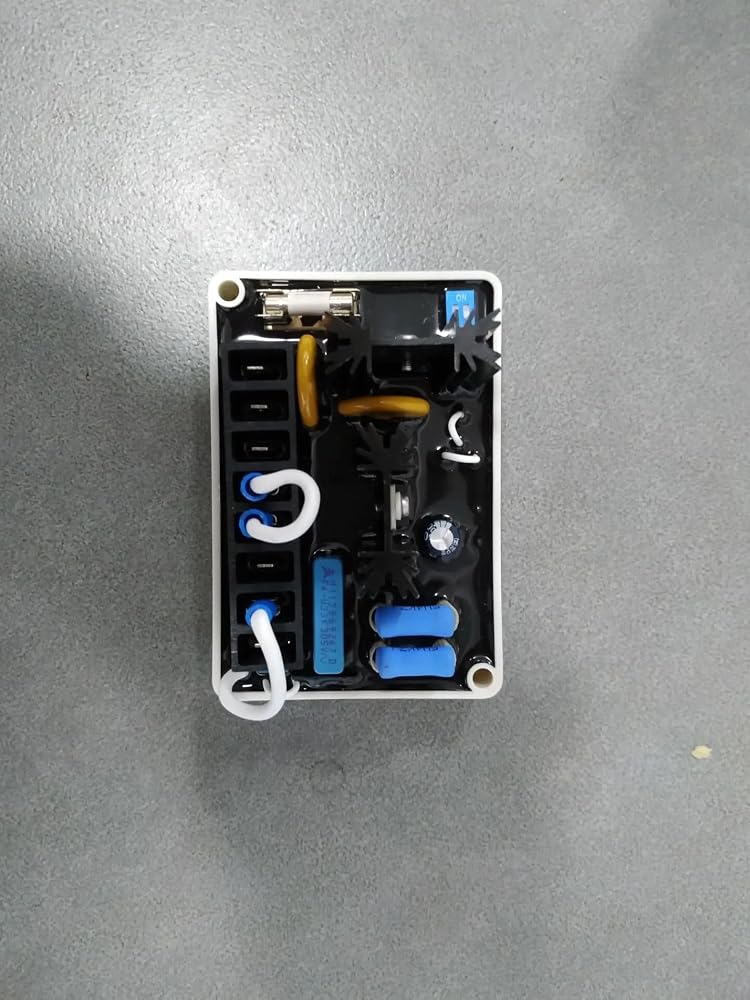

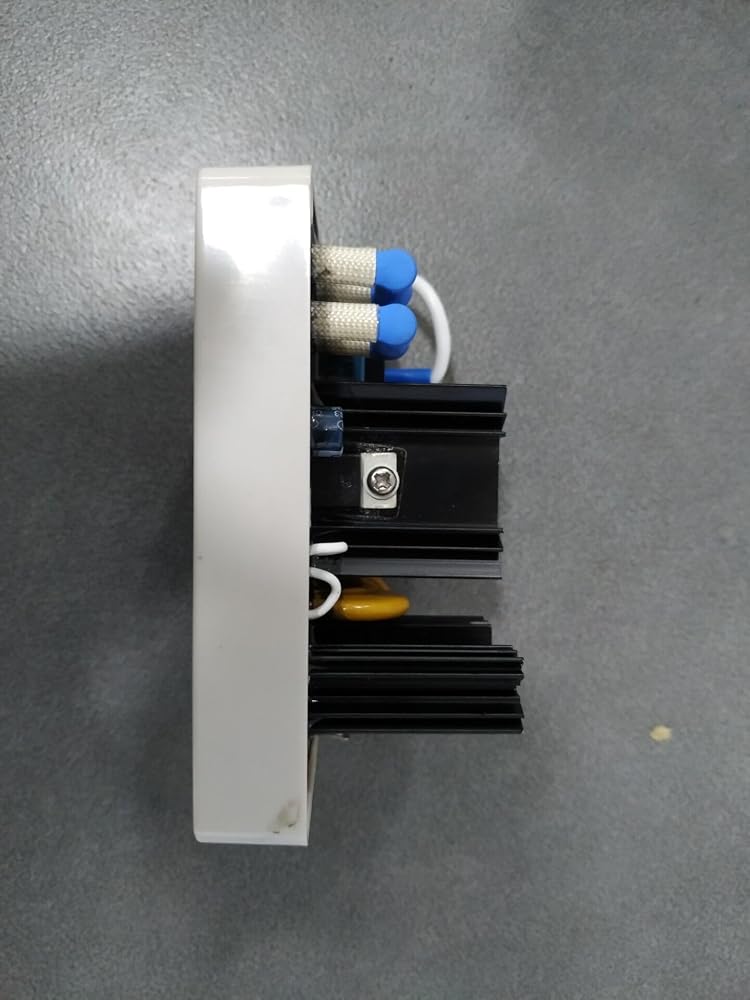

EA350AVR(AutomaticVoltageRegulator)GeneratorParts
Specification:
Automatic Voltage Regulator For Generator Spare Part Automatic Voltage Regulator EA350
Sensing Input
Voltage 85 ~ 135 VAC
Frequency 50 / 60 Hz, Jumper selectable
Power Input
Voltage 180 ~ 265 VAC
Output
Voltage Max. 37 VDC @ 110 VAC input
Max. 73 VDC @ 220 VAC input
Current Continuous 3.5A
Intermittent 7A for 10 sec
(52 / 105VDC)
Resistance Min. 15 ohm Max. 100 ohm
Voltage Regulation
Voltage Build-up
Residual voltage at Automatic Voltage Regulator terminal > 5 VAC
Burden
500VA MAX
Operating Temperature
- 40°C to + 60°C
Storage Temperature
- 65°C to + 85°C
