Model Number : NT-S
Certification : CE

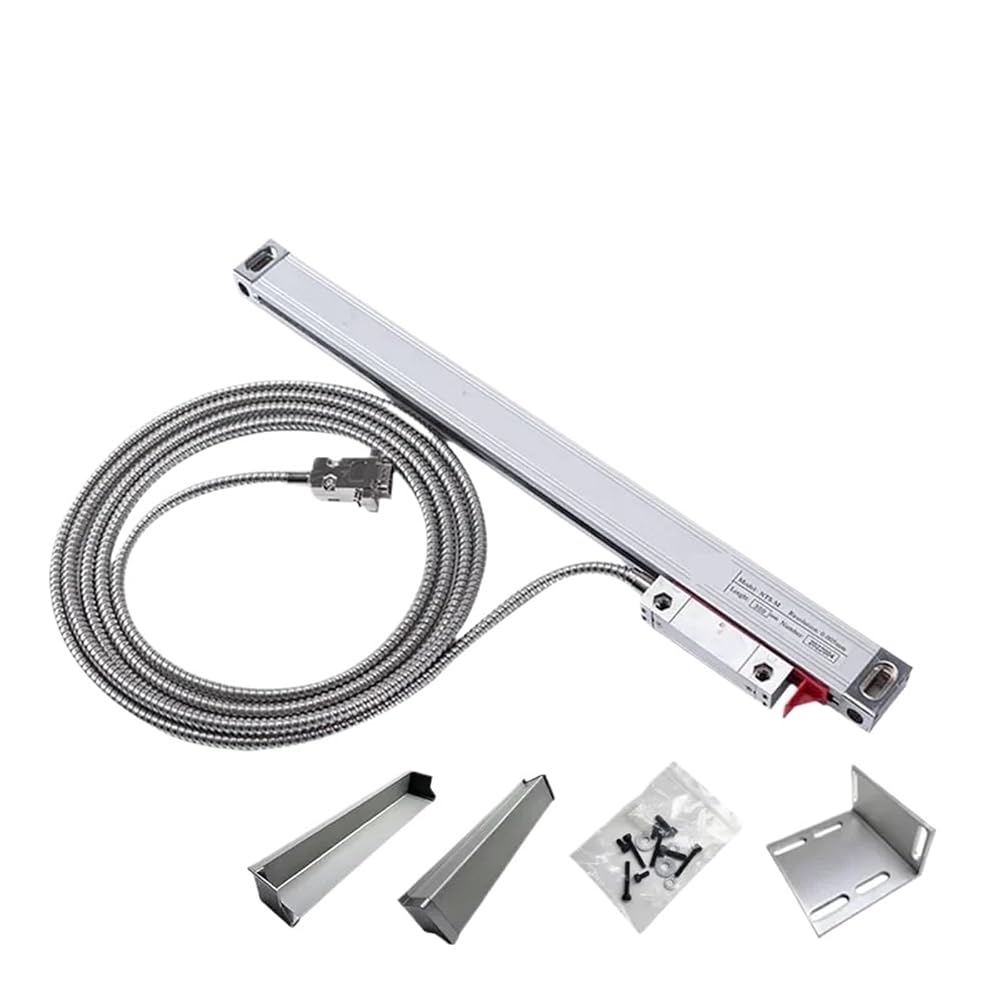

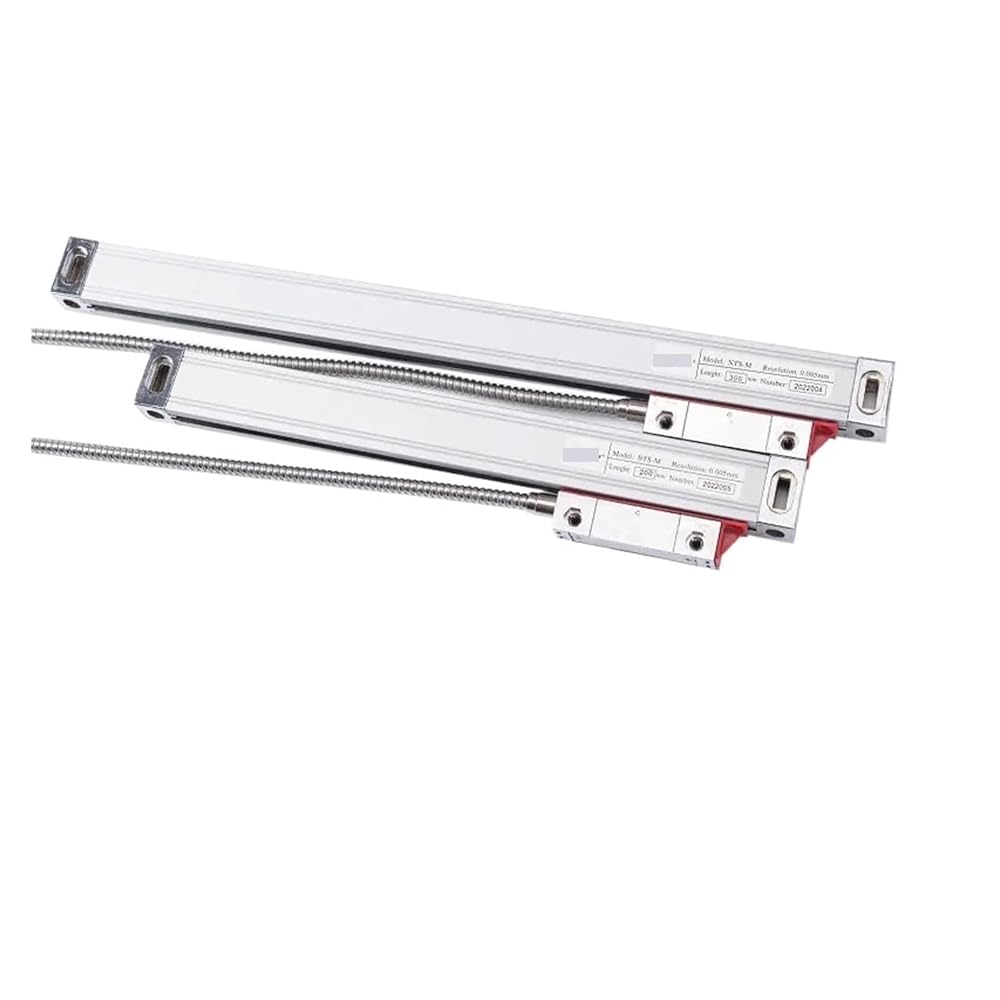

Procut name : 0.005mm linear scale
Output signal : TTL (R is a pulse signal, no reference point)/EIA422A(RS-422)
Resolution : 0.005mm/5um
Travel length : 50,100,150,200,250,300,350,400mm
Cross section size : 20mmx27mm
Scale overall length : Travel+142mm
Installation holes distance : Travel+124mm
Input voltage : 5VDC ±5% , 100mA

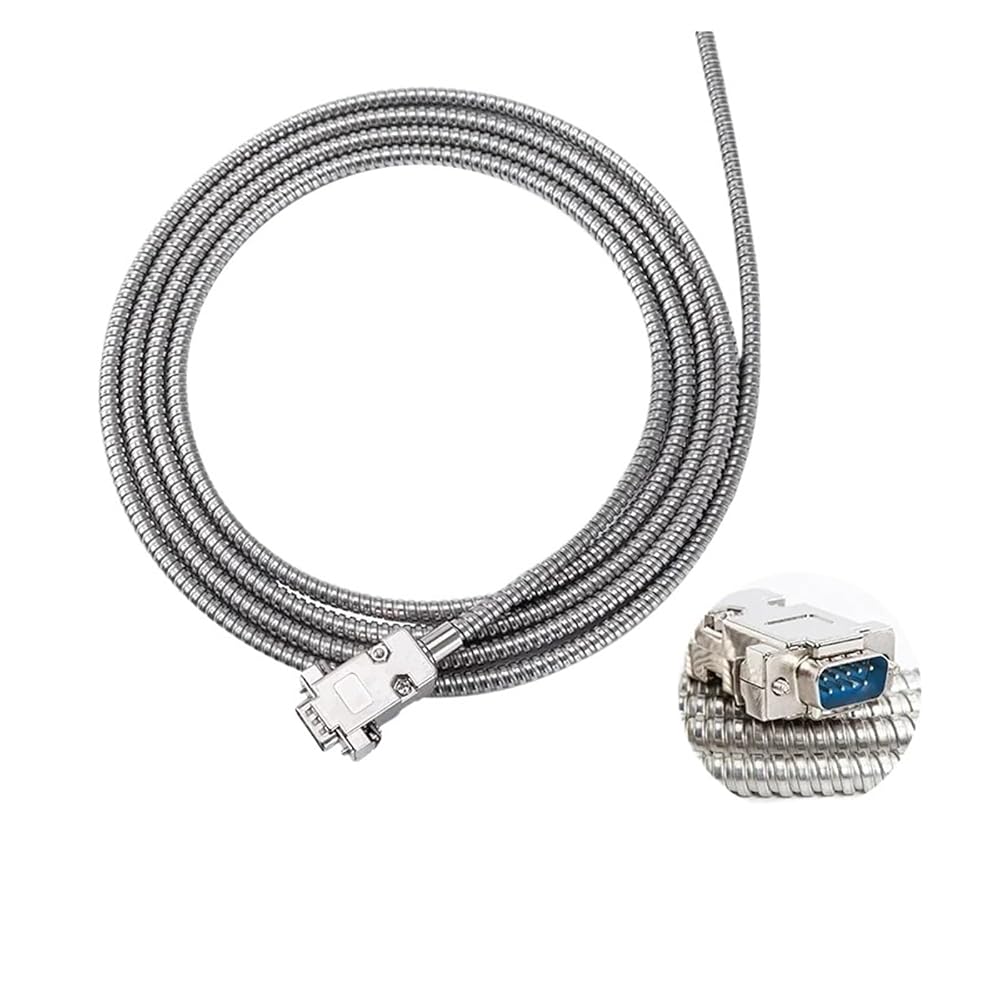

Cable length : 3 meters
Interface Typ : 20um,DB9
Max of Measuring speed : 60m/min
Protection grade : IP54
Operating temperature : 0-50°c

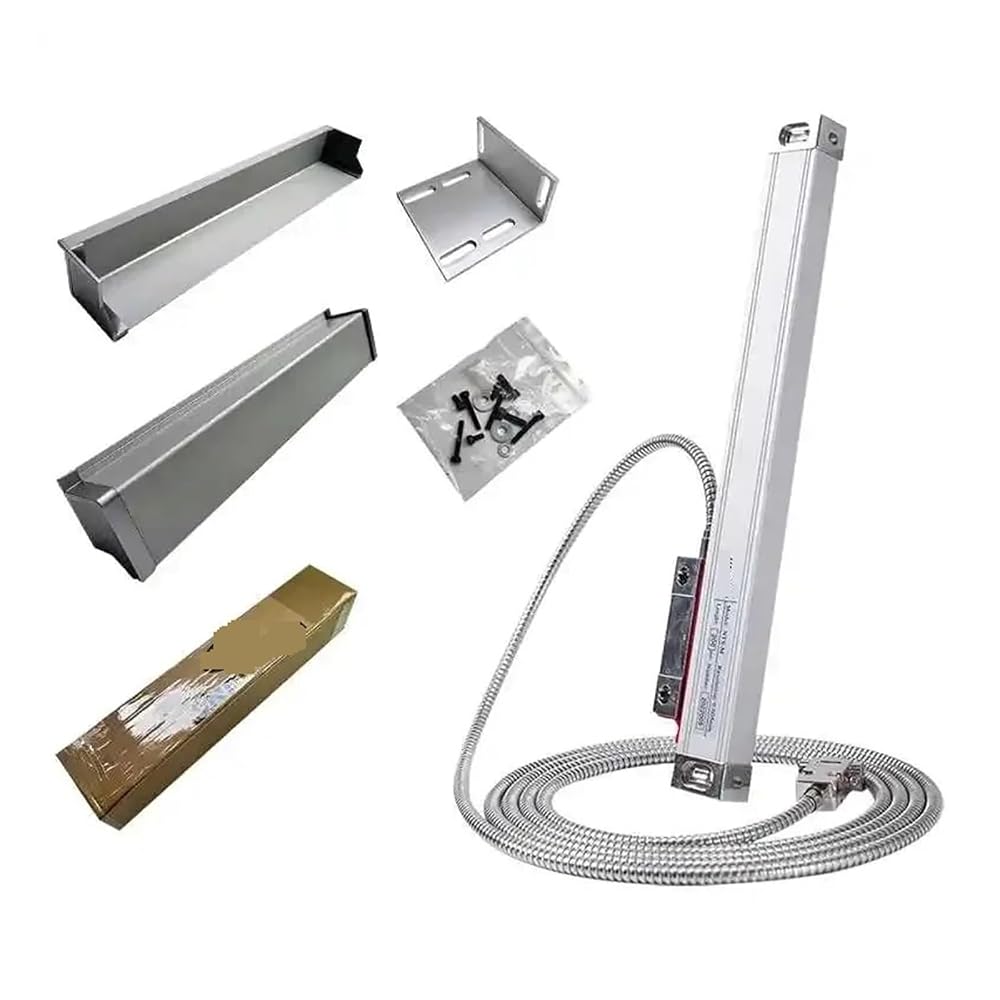

If include accessories : Yes(with scale cover, screws and accessories)
Matchable DRO : All China DRO
Application : Mill, Lathe, Grinder, CNC Etc.
