Model Number : KA-300
SINO Model : KA300
Certification : CE
Model Number : KA-300
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34mm
Matchable DRO : the most of China DRO

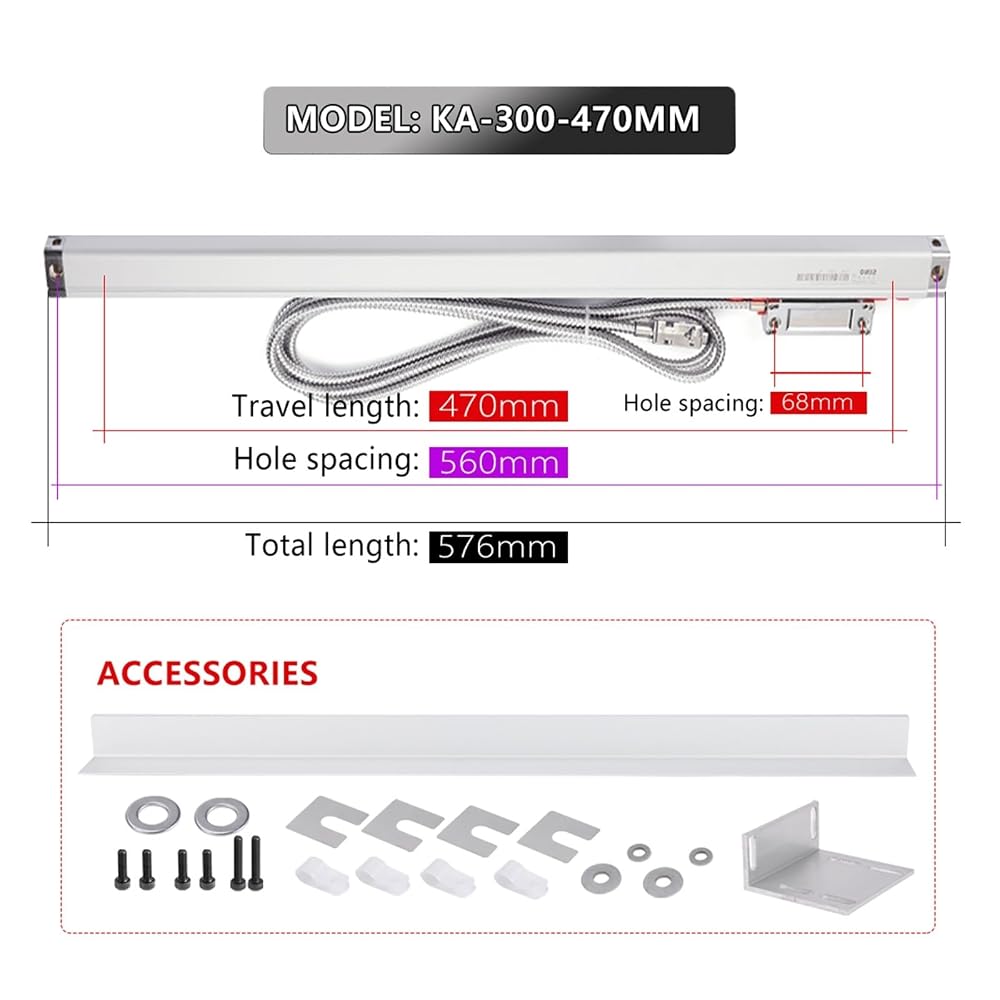

Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cable length : 3 meters

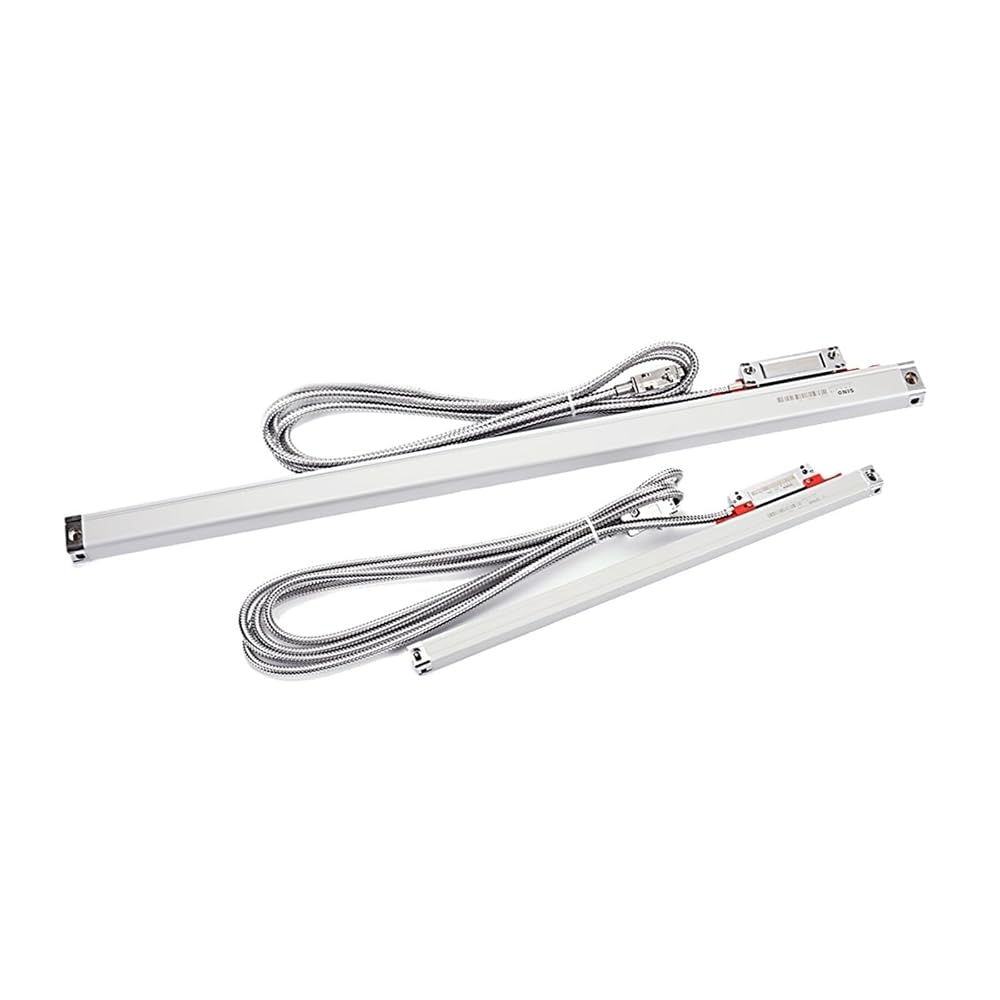

Procut name : DRO linear scale
KA-300 available travel length : 70mm-1020mm
