Radio Frequency Filters

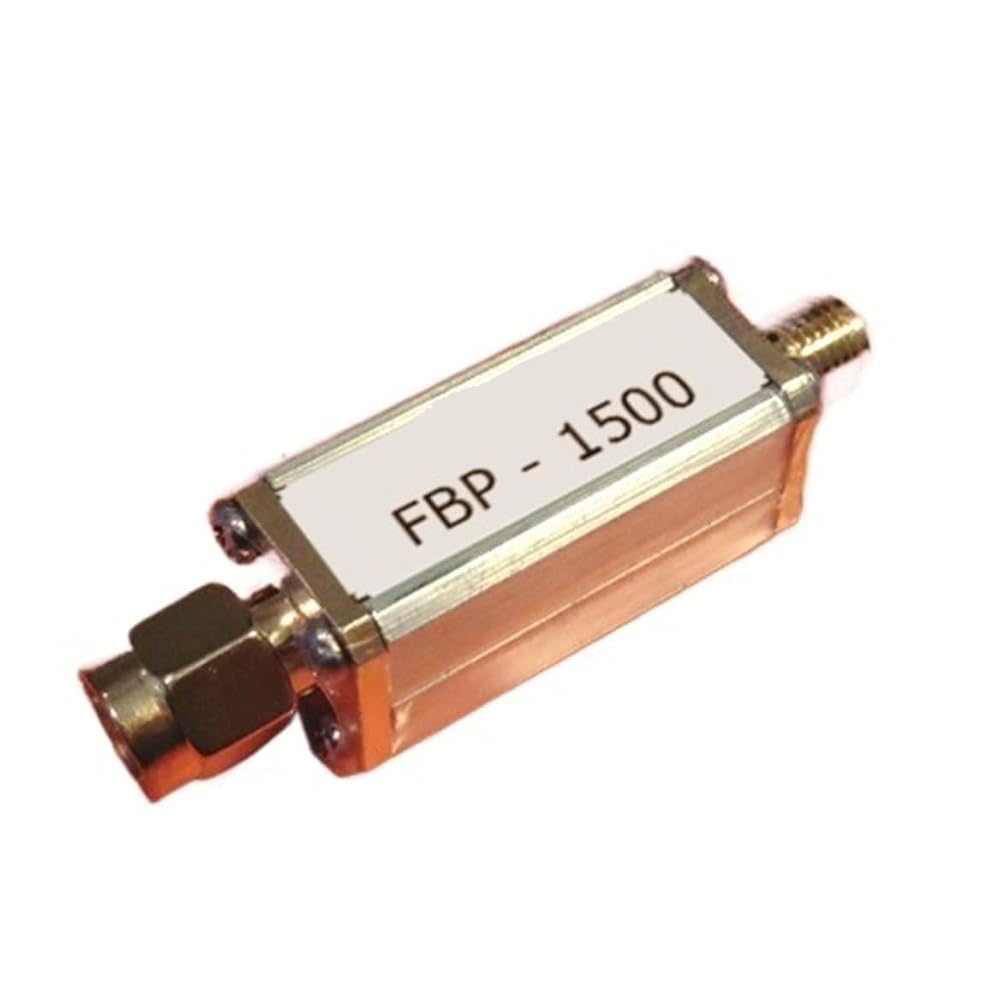

Model: FBP-1500
Impedance: 50 Ohms
Center frequency: 1500 MHz
1 dB bandwidth: 1350 to 1650 MHz
30 dB Stop Band: DC to 950 MHz & 1900 to 4000 MHz
Maximum Carrying Power 1 W 30 dBm
Interface: SMA-M, SMA-F
Frequency response diagram (sweep frequency range: 40-3800MHz, the blue line is the transmission loss, the vertical scale is 10dB per division, the figure shows the 3dB bandwidth. The yellow line is the reflection loss, the vertical scale is 5dB per division):
