Radio Frequency Filters

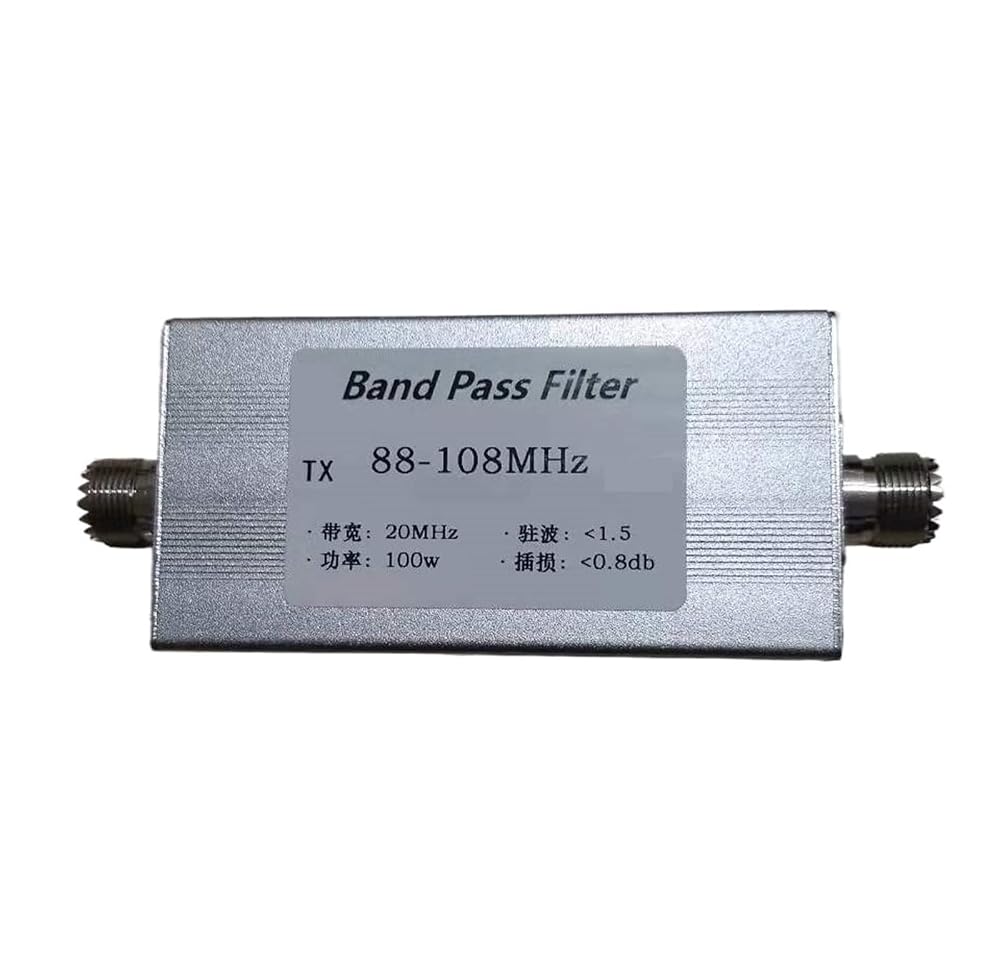

FM Band 88-108MHz Band Pass Filter (BPF): BPF-88-108
1. For detailed technical parameters, please refer to the following information (1.8-30MHz or 3.5-30MHz or 7-30MHz can also )
2. Input impedance: 50-75 ohms; output impedance: 50-75 ohms.
3. The passable bandwidth is 88-108MHz
4. Insertion loss: less than 0.8db
5. TX is connected to the radio, and ANT is connected to the antenna.
6. Power: 100w
7. Standing wave: less than 1.5

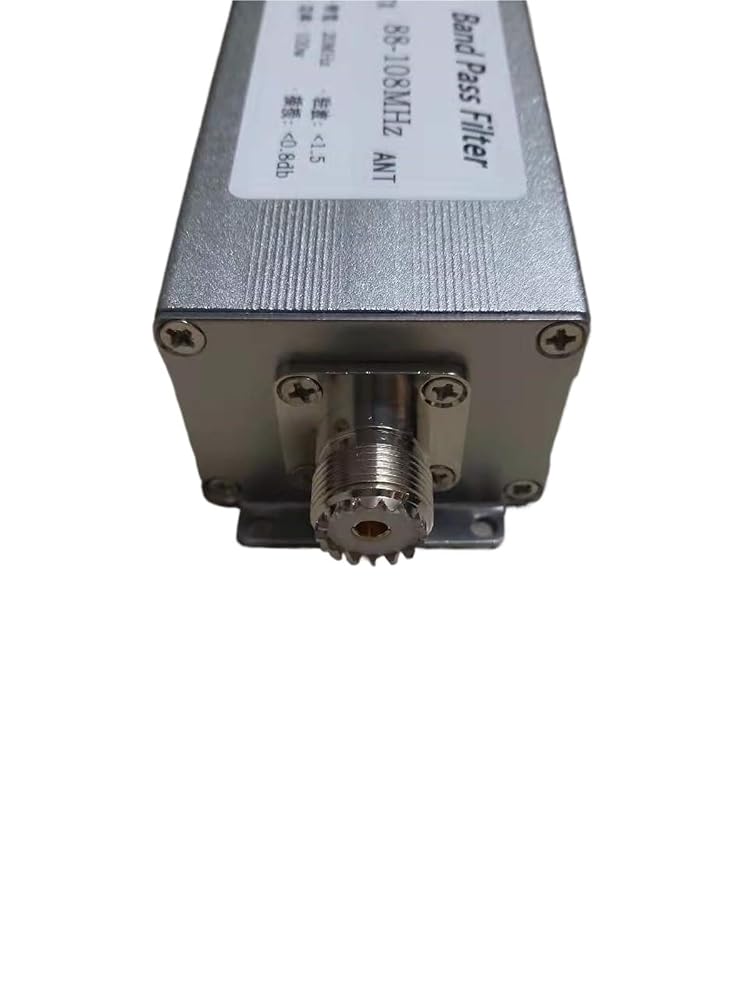

8. Interface: SL16-F (M block) (N block can also )
9. Outer size: 140*53*38mm (hole installation size: 34*110mm)
