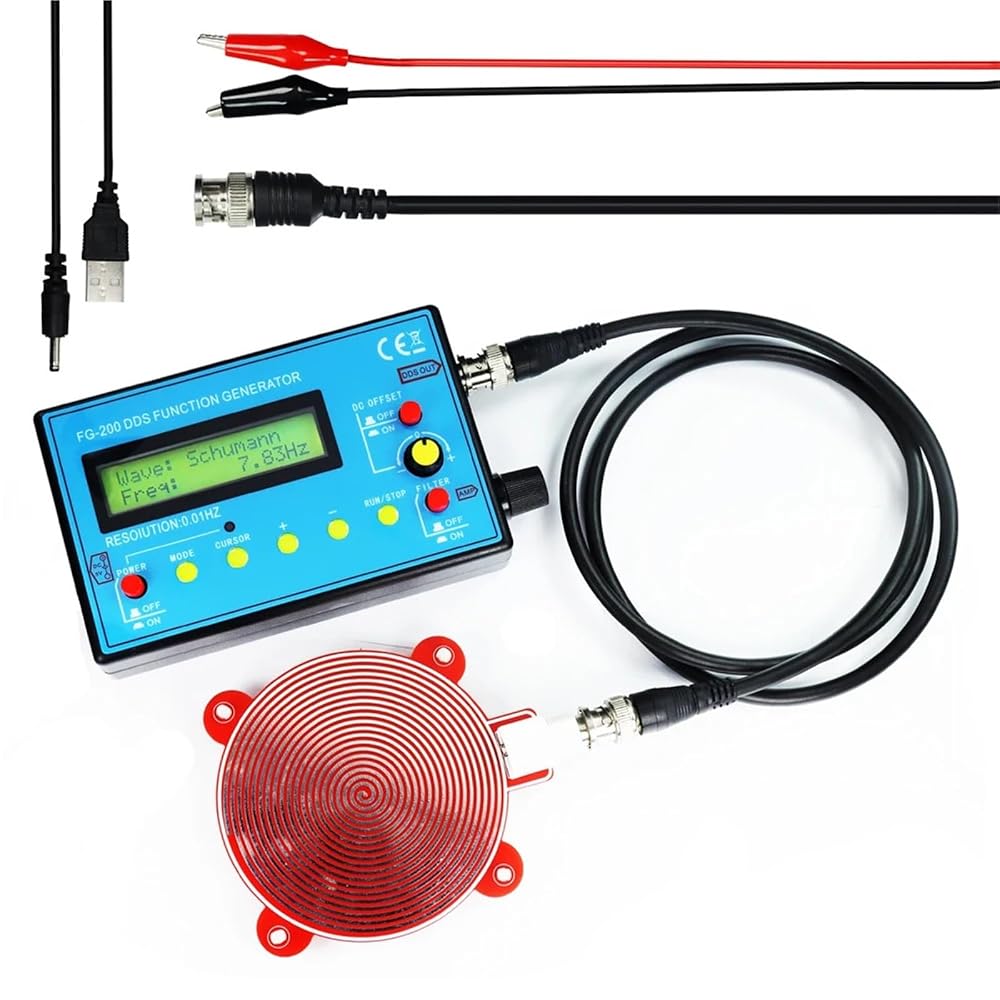

FG-200 DDS Signal Generator
I.The main technical parameters:
1. Output waveforms: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG
wave, exponential rise, exponential fall, Lorentz pulse, Gauss pulse, Sinc pulse, half-wave, fll-wave, Schumann wave, noise
wave, and so on 15 kinds of waveforms.
2. Power supply: DC4-9V, DC5V is recommended when using adapter, 3.7V lithium battery is recommended when using
battery power.
3. Current: 180MA at voltage 5V
4. Frequency range: sine wave 0.01Hz- 500.00kHz (with further increase in frequency, the output amplitude will
decrease), other waveforms 0.01Hz-100.00kHz (but does not limit the upper limit of the adjustable frequency, if the
distortion and jitter requirements are not high, the use of frequency can be further increased).
5. Resolution: 0.01Hz.
7. Output amplitude: Maximum t10V (P-P).
8. output impedance: 50 ohms.
9. DC offset: maximum10V, with shutdown function.
10. All setup parameters can be saved.
11. there are filters can be turned on and off, can be well adapted to sinusoidal and pulse waveform output.
II .Features:
Compact size (125*80* 26.5MM),complete functions, simple operation, easy to carry. It can be
powered by a power adapter or a 3.7V lithium battery. Together with an oscilloscope, it can be used for electronic circuit
test and debugging, frequency characteristics and impulse response test and measurement of audio amplifiers. Due to the
good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. The
square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.
FG-100 DDS Signal Generator
Small size, multiple functions, simple operation, easy to carry.
ith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
COLOR:white
Material:metal
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output
also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%
Dc bias : +/- 10V (no-load)
Display : LCD1602
Material:metal
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range :
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz - 20kHz (the valid range)
Triangular wave : 1 Hz - 20KHz (the valid range)
Sawtooth wave : 1 Hz - 20kHz (the valid range)
FG-300 DDS Function Signal Generator Signal Generator 0.001Hz-200Khz Frequency Sine+Square+Triangle+Sawtooth Waveform
Features: Using low temperature drift crystal oscillator, high precision DDS frequency synthesis technology, high frequency stability, resolution up to 0.001HZ, at low frequency accuracy up to 0.001HZ.
Can be up to 13 kinds of waveform output, to meet different needs.
Color 1.8TFT display, digital keyboard direct input frequency, intuitive and convenient operation.
With shutdown, signal light brightness adjustment, screen backlight brightness adjustment.
FG-300 is the multifunctional, high-precision, portable signal generator, which can generate sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, Loren, Gaussian, Sinc, Exponential rise, exponential fall, and 7.83HZ Schumann wave and other waveforms.
The onboard spiral antenna can be used as a Schumann wave generator, can be widely used in electronic research and development, production testing, education and teaching, maintenance, audio testing and other fields.
All setting parameters can be automatically saved, and there is no need to set them in the next startup.
Specifications:
frequency range: sine wave 0.001Hz-200kHz (where the output amplitude is flat to 100 kHz, the output
amplitude will decrease and the distortion will increase with the further increase of the frequency), and other
waveforms will be 0.001Hz-20kHz (but the upper limit of adjustable frequency is not limited. If the requirements for
distortion and shaking are not high, the use frequency can be further increased).
output amplitude: 2. 5V
output impedance: 330 ohms
display: 1.8 inch TFT display
supply voltage: USB TYPE C
Color: green
Material: PCB+components+plastic
There are differences in printing and silk-screen printing due to different batches, which will not affect the use; there are color differences in the actual product due to different light or display.
Package Contents:
1 x Signal Generator
1 x TYPE-C power cable
1 x 4PIN signal output cable
1 x Stylus pen
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
==========
Battery Included : No
High-concerned chemical : None
Model Number : FG-200
DIY Supplies : Electrical

Certification :
Display Size : 3.0 - 4.9 Inches
