MR9270P Signal Generator Video Tutorial Link:
https://drive..com/drive/folders/1htvzPSA7XxFaZGKtPahRcE_vVHiuEht1
Product Description:

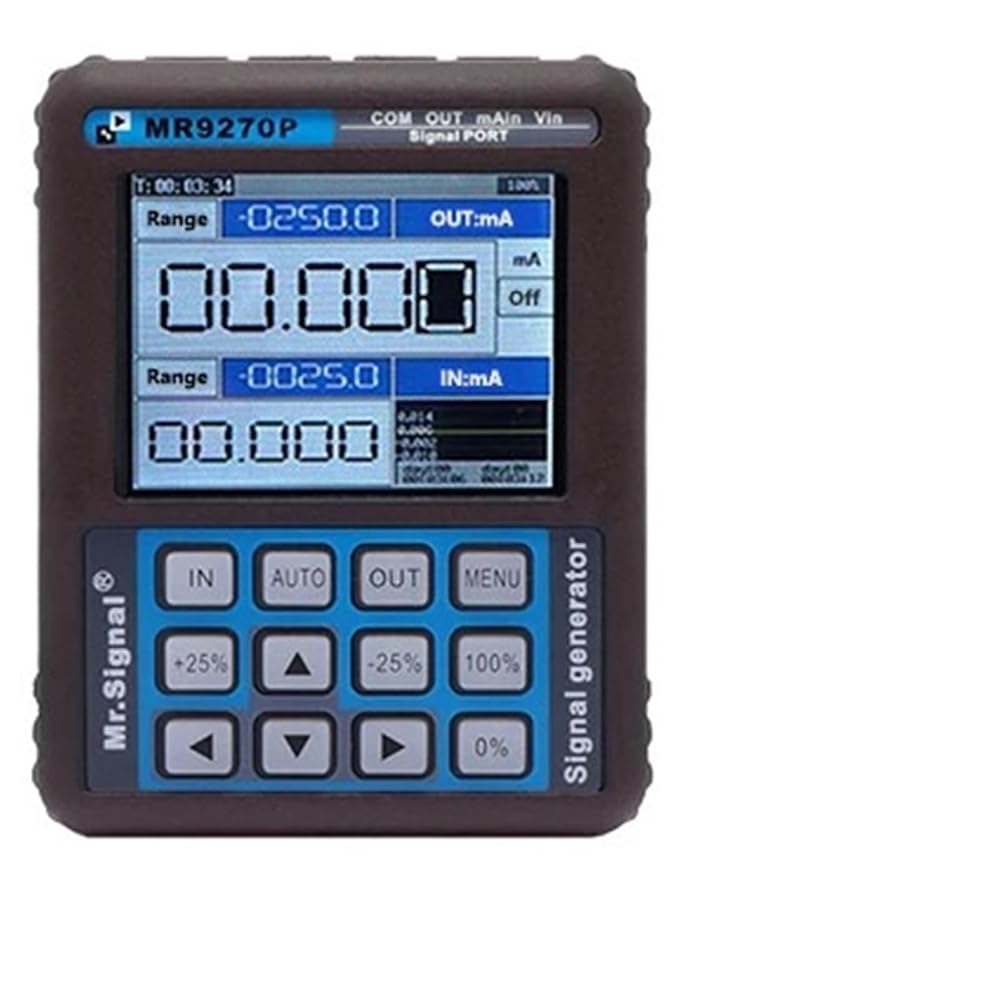

The Lanyi MR9270P signal generator is primarily designed for debugging PLCs, process instruments, electric valves, and more in the industrial sector. It boasts a user-friendly interface that is straightforward to operate.
The Lanyi MR9270P signal generator features a compact size, lightweight design, long standby time, and high precision, making it convenient for carrying during fieldwork.
Features:
Simultaneous measurement and output capabilities.
Automatic voltage and current output functions with three selectable modes.
Equipped with a built-in 2500mAh polymer lithium battery for power supply, and alternatively, it can be charged using three AA batteries (1.5V*3) via a Type-C interface (5V/1A).
High-definition IPS screen for clear and eye-catching readings.
Integrated 3.7V 2500mAh polymer lithium battery; standby time of approximately 26 hours; usage time varies based on operating conditions (continuous 8mA output can last for 10-20 hours).
Operating environment: 0°C-50°C.
Internal reverse and overcurrent protection; protection voltage: 30V.
Dimensions: 91mm * 71mm * 30mm.
Weight: 173g.
Packing List:
1 x Certificate of Conformity
1 x Tool Kit
1 x User Manual
1 x USB Cable
1 x Charger (random black or white color)
1 x Test Fixture (Yellow)
1 x Test Fixture (Blue)
1 x Test Fixture (Red)
1 x Test Fixture (Black)
1 x MR9270P Signal Generator
==========
Battery Included : Yes
High-concerned chemical : None
Model Number : MR9270P
Display Size : 2.9 Inches & Under
DIY Supplies : Electrical

Certification :
