DC DC Boost Converter, Positive Negative Voltage Regulator 15V 18V 24V with Thermal Shutdown for ADC DAC Audio Equipment (Output Voltage ±5VDC) in Kuwait

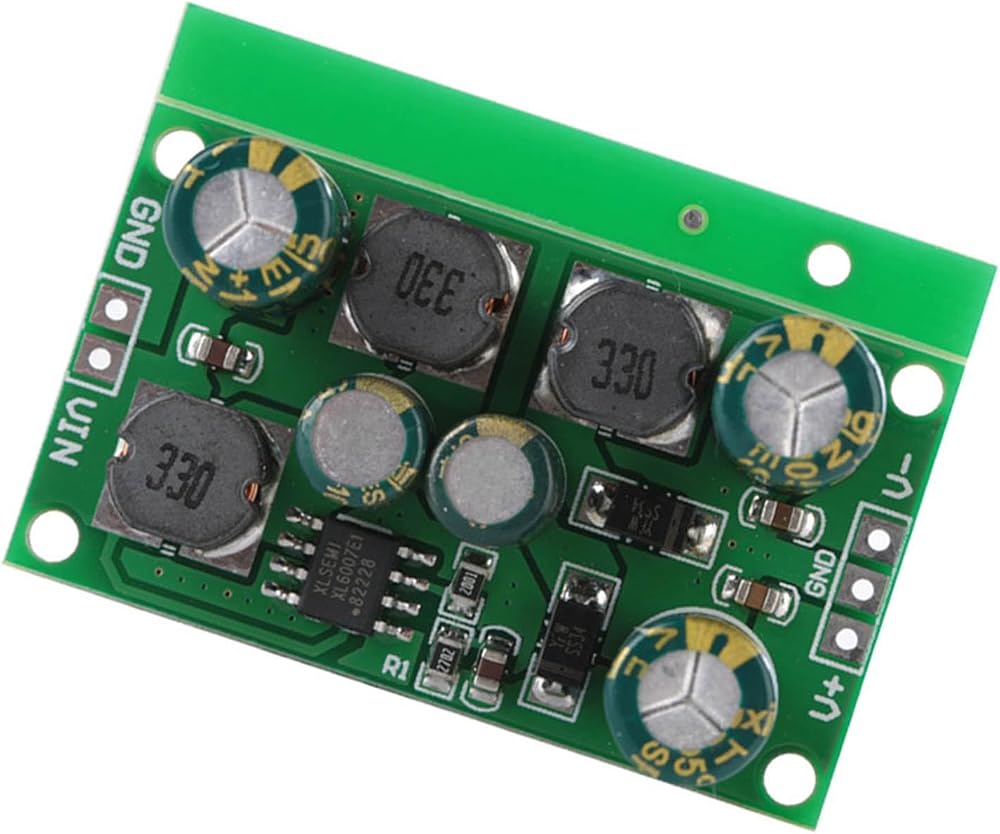

DC DC Boost Converter, Positive Negative Voltage Regulator 15V 18V 24V with Thermal Shutdown for ADC DAC Audio Equipment (Output Voltage ±5VDC)

KWD 0
Brand
Kelawoly
Size
– 1 +

Special Features

  • [VERSATILE DUAL OUTPUT POWER] This boost converter provides both positive and negative voltage outputs simultaneously, supporting adjustable voltages of ±15V, ±18V and ±24V. It operates with a wide input voltage range of 3V to 24V and delivers a maximum output power of 1-8W, making it an ideal choice for powering operational amplifiers, ADC/DAC circuits, audio equipment and LCD displays in various electronic projects.
  • [HIGH EFFICIENCY WITH ] Achieving a conversion efficiency of up to 90%, this power module ensures minimal energy loss during voltage transformation. The output voltage accuracy is maintained at ±3% for positive and ±5% for negative outputs, while the quiescent current stays as low as 3-4mA. This reliable performance guarantees stable and clean power delivery even under varying load conditions, protecting sensitive electronic components.
  • [BUILT IN PROTECTION FUNCTIONS] Engineered with multiple safety features including frequency compensation, function, thermal shutdown protection and current limit function, this converter safeguards both itself and connected devices from potential damage. These intelligent protections prevent overheating, overcurrent and startup surges, ensuring long term durability and safe operation in demanding environments like industrial control systems and laboratory testing setups.
  • [COMPACT DURABLE CONSTRUCTION] Made from electronic components, this voltage regulator measures only 42x24x15mm and weighs approximately 12g, allowing for easy integration into space constrained projects. Its robust design withstands operating temperatures from -40°C to 85°C, making it suitable for both indoor and outdoor applications. The compact size does not compromise its performance or reliability.
  • [WIDE APPLICATION COMPATIBILITY] This positive negative voltage converter is perfect for powering operational amplifiers, DAC/ADC circuits, audio equipment, LCD power supplies, sensor modules and various DIY electronics. With a working frequency of 400kHz, it provides fast and responsive voltage regulation. It is an essential component for hobbyists engineers and professionals needing a reliable bipolar power supply solution for their projects.

Description

1. 1. This boost- converter supports positive & negative dual output voltage.
2. 2. High conversion efficiency up to 90%, stable output voltage.
3. 3. Made with electronic components, .
4. 4. Built in frequency compensation, function, thermal shutdown function and current limit function.
5. 5. Application: ADC, DAC, operational amplifier, audio equipment, LCD power supply and more.

Spec:
Features:
1. This boost- converter supports positive & negative dual output voltage.
2. High conversion efficiency up to 90%, stable output voltage.
3. Made with electronic components, .
4. Built in frequency compensation, function, thermal shutdown function and current limit function.
5. Application: ADC, DAC, operational amplifier, audio equipment, LCD power supply and more.

Specification:
Input voltage: 3~24V
Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (Optional)
Maximum output power: 1-8W
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%, Negative voltage ±5%
Working frequency: 400kHz
Operating temperature: -40~85℃
Size: 42*24*15mm / 1.65*0.94*0.59in
Weight: 12g (approx.)

Package List:
1 * Positive Negative Voltage Converter
