Specification:
1.Signal input: eddy current sensor, magnetoelectric speed sensor, ICP type magnetoelectric speed sensor acceleration sensor, ICP type acceleration sensor, 1 channel key phase signal matching photoelectric sensor or eddy current sensor
2.Measuring range: speed range: 30-10000 rpm
Amplitude range: displacement: 0-1000um (peak-to-peak value)
Speed: 0.1-199.9mm/s (effective value)
Acceleration: 0.1-99.9m/s 2 (half peak value)
3. Vibration analysis:
Phase: 0-3600
It can provide 3 types of vibration monitoring and analysis charts, including data list, time-domain waveform, and frequency spectrum.
4. Frequency response: 5Hz~10KHz
5. Measurement accuracy: AD resolution 12 bits
8.Storage capacity: 8GB
9.Battery: Rechargeable lithium battery, continuous work> 4 hours
10.I as power supply: E power, power supply (5V@1000mA)

Features of dynamic balance vibration analyzer:

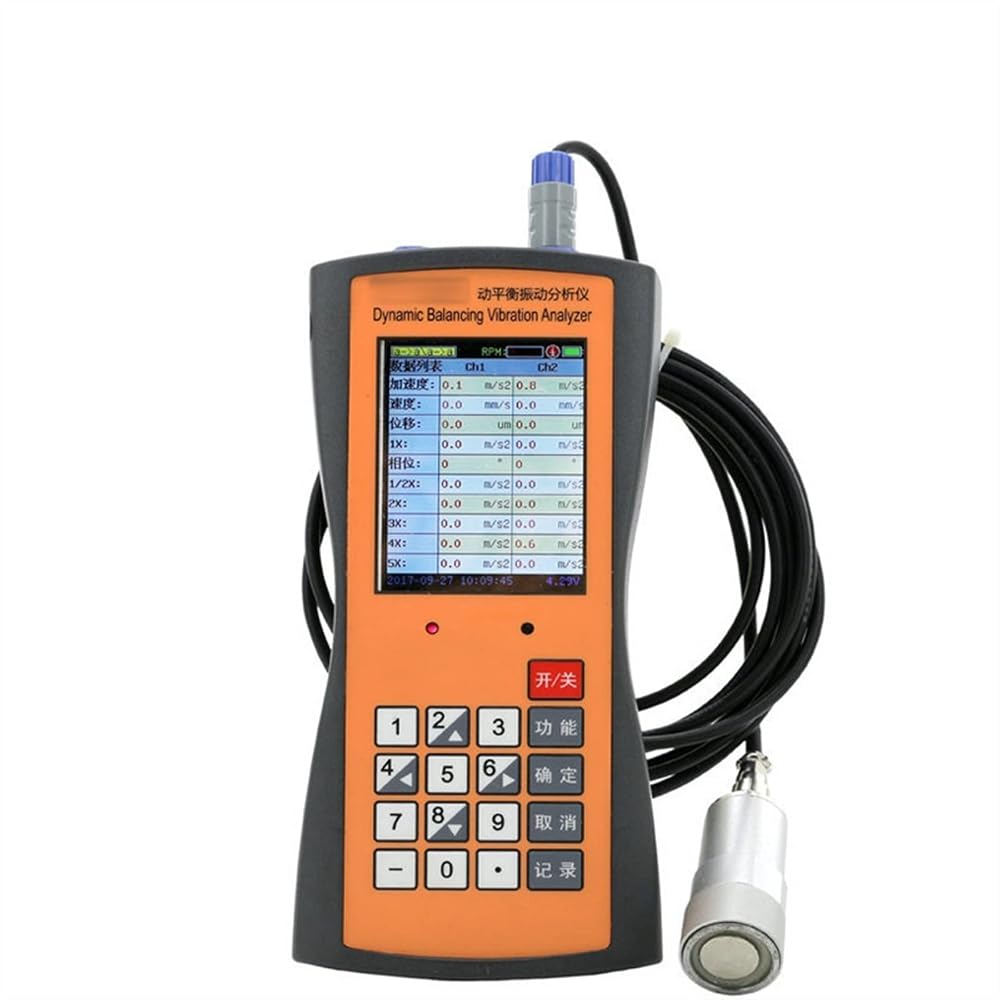

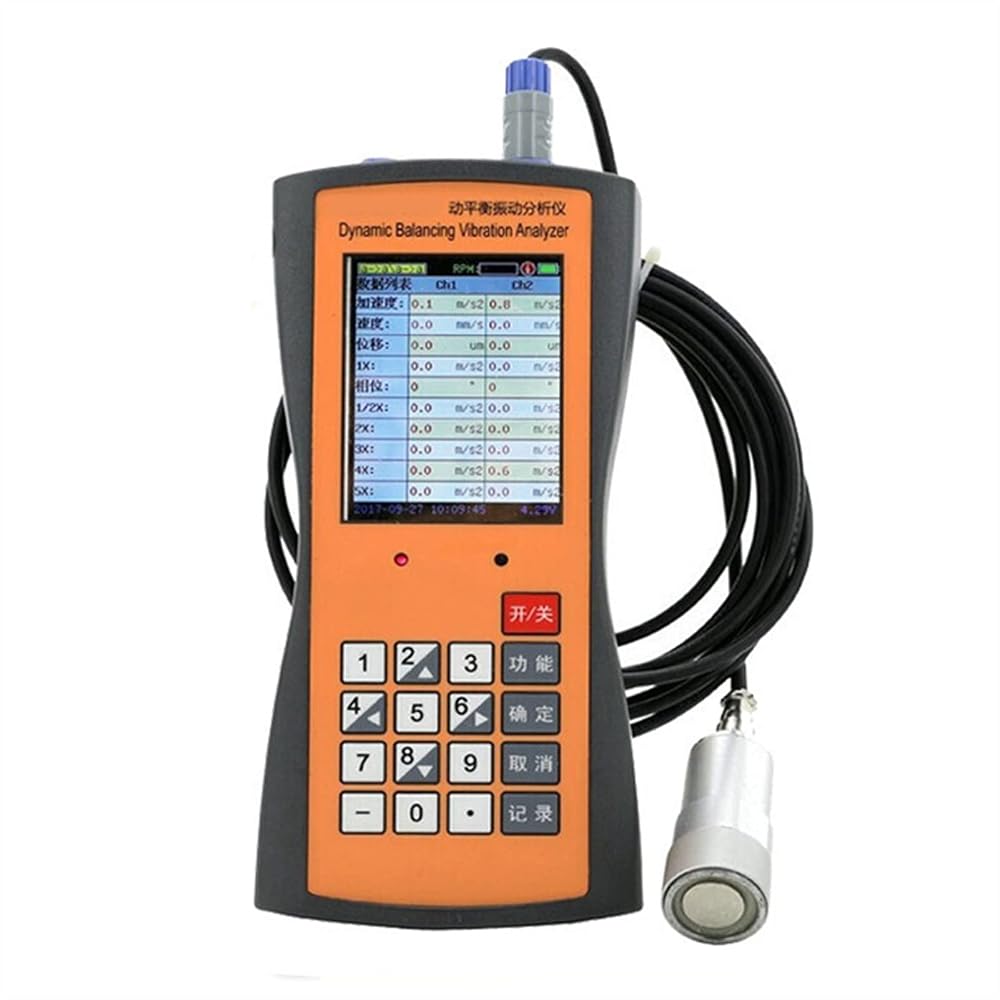

uses 3.5-inch color LCD screen, rich in information
Full Chinese display, menu-based operation, simple and convenient operation

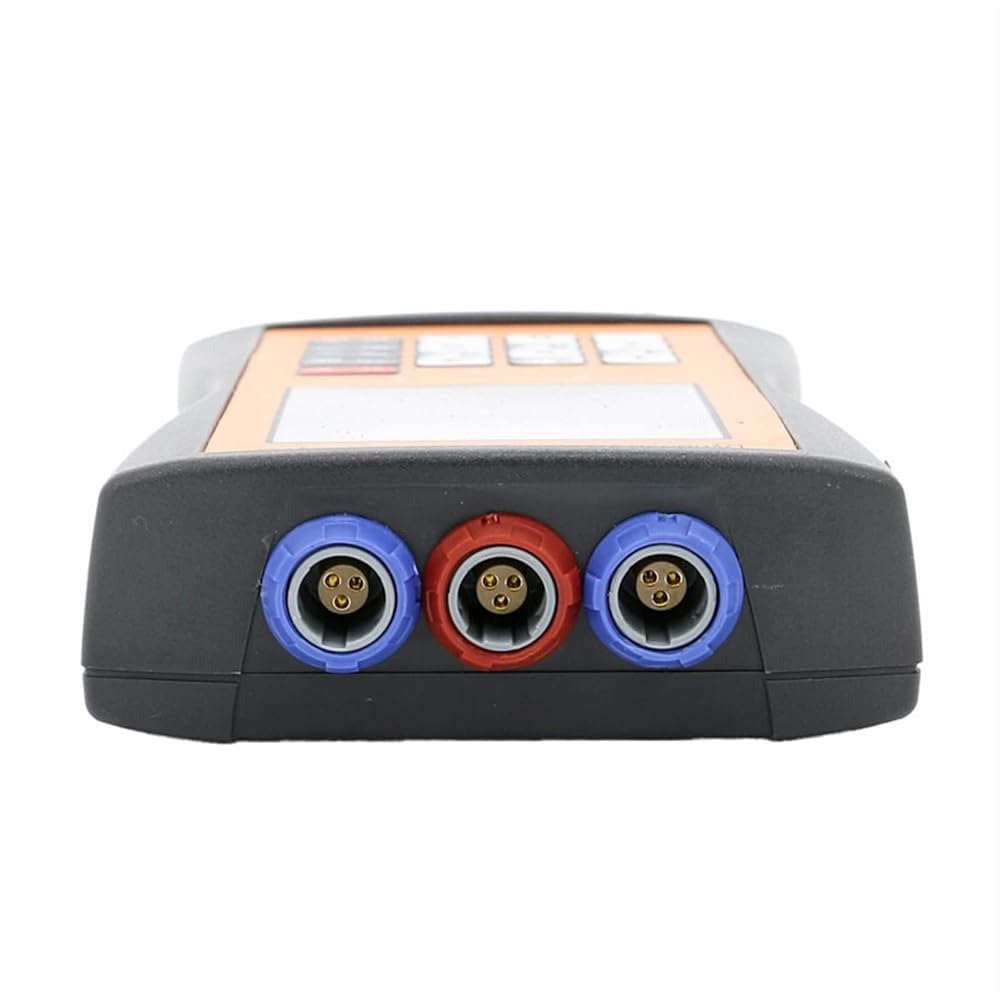

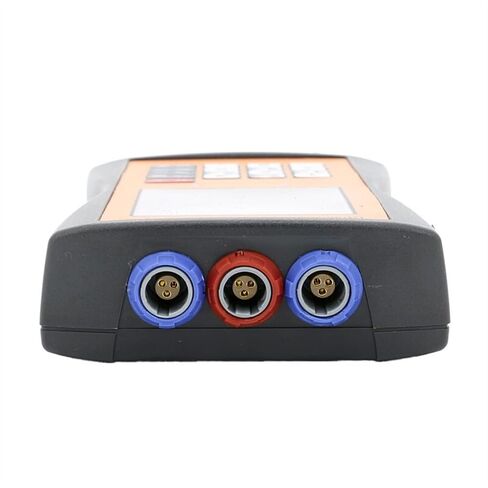

One host can support 2 channels of vibration data acquisition and one channel of speed measurement at the same time
1 It can realize the feature value extraction of vibration data, real-time display of vibration waveform and frequency spectrum analysis of vibration signal
It can realize synchronous and non-synchronous acquisition of vibration signals, flexible setting and easy operation
The meter has the ability to record real-time vibration data, with a storage capacity of 8 GB
1 The data is stored in the form of a file, and the data can be exported through the USB port. It can be analyzed by the PC supporting software to view 3 calculation methods: single-plane influence coefficient method, two-plane influence coefficient analysis method, and two-plane harmonic component method. The channel calibration can be set and modified as Suitable parameters
The brightness of the LCD screen can be adjusted
Real-time clock indicates the current time
Low power design, long working time
