Technical parameter:
Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration：0.1-199.9m/s
Measurement range of velocity：0.1-199.9mm/s rms
Measurement range of displacement：0.001~1.999mm p-p
Velocity and displacement range is limited by acceleration：199.9m/s2
Measurement accuracy：±5%±2digits
Measurement frequency range of acceleration：10Hz-1KHz (LO) 1KHz-15KHz (HI)
Measurement frequency range of velocity：10Hz-1KHz (LO)
Measurement frequency range of displacement：10Hz-1KHz (LO)
Displays update cycle：1 seconds
LCD display：3 1/2 digits display
Single output：AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected
Power supply：9V battery(not included)
Stand-by current：≤15uA
Operating current：≤25mA
Battery life:20 H continuous use
Auto power-off function:Turns off automatically after 60 seconds
LCD backlight function:7 seconds
Operating temperature range:0-40℃
Operating humidity range:30-90%RH
Low battery indication:6.4V±0.2V
Temperature range:-10℃-80℃
Temperature accuracy:±2℃

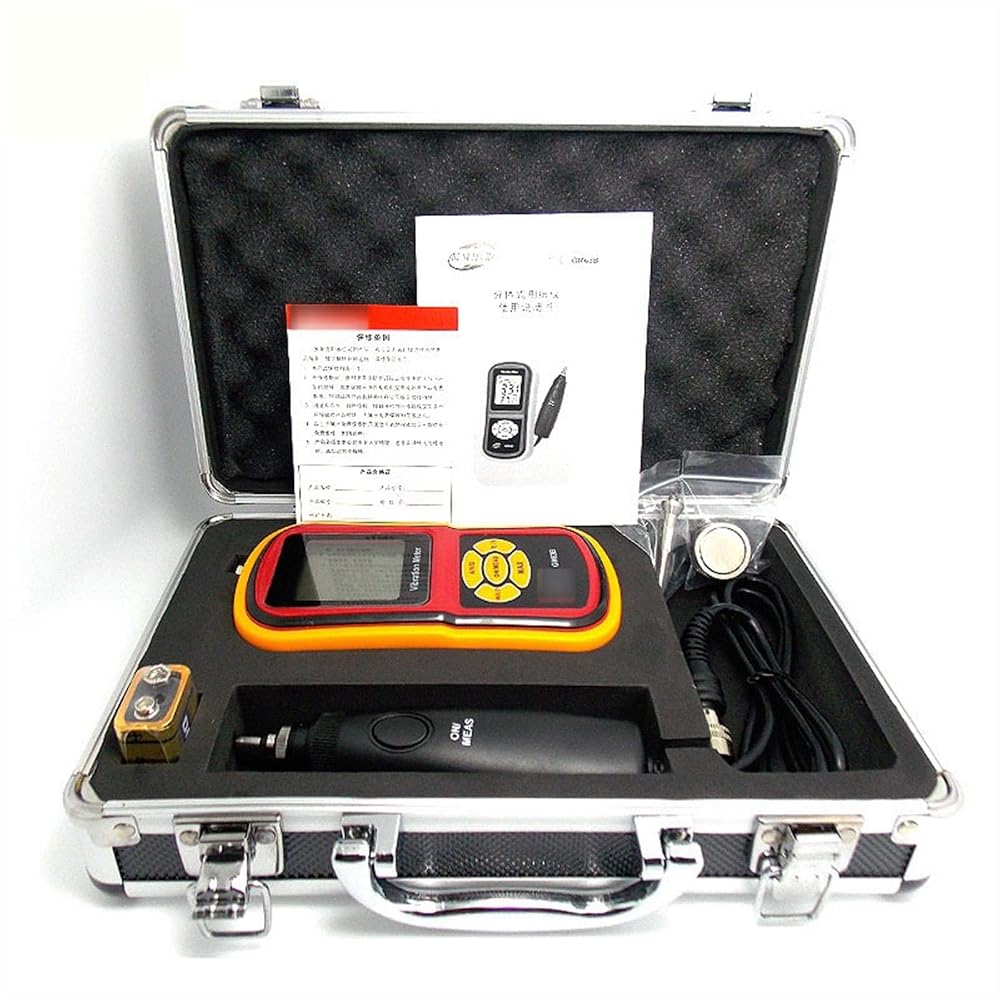

Pakcage List:
Vibration Meter x 1
