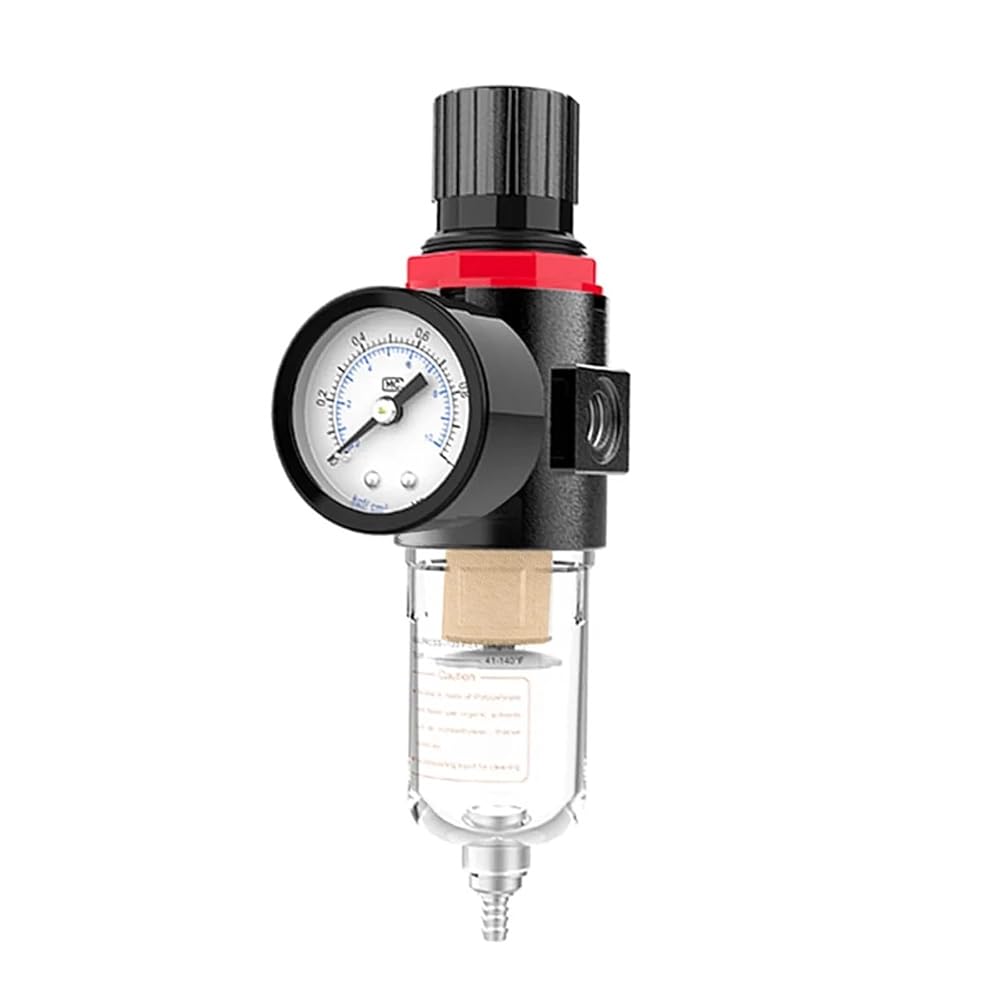

Filter, Regulator & Lubricator Combos
Specifications:
Model: AFR2000 (AFR is the model, 2000 refers to the port size)
Port size: G1 / 4
Filtration precision: 5m
Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)
Temperature: 5 ~ 60 °
Gauge caliber: G1 / 8
Treatment cup capacity: 15CM3
Length: appox 15cm
Installation and Use :
The direction shown by the arrow on the valve body is installed, which is the direction of the gas flow direction.
Package Included:
1pcs Filter regulator
