WITC RF Coax Connector GPPO (SSMP) Male DC to 65 GHz 50 Ohm Non Magnetic | PCB Soldered Gold Plated BeCu Straight Plug Low Return for Test & Measurement, Base station, Millimeter Wave System in Kuwait WITC RF Coax Connector GPPO (SSMP) Male DC to 65 GHz 50 Ohm Non Magnetic | PCB Soldered Gold Plated BeCu Straight Plug Low Return for Test & Measurement, Base station, Millimeter Wave System in Kuwait WITC RF Coax Connector GPPO (SSMP) Male DC to 65 GHz 50 Ohm Non Magnetic | PCB Soldered Gold Plated BeCu Straight Plug Low Return for Test & Measurement, Base station, Millimeter Wave System in Kuwait WITC RF Coax Connector GPPO (SSMP) Male DC to 65 GHz 50 Ohm Non Magnetic | PCB Soldered Gold Plated BeCu Straight Plug Low Return for Test & Measurement, Base station, Millimeter Wave System in Kuwait

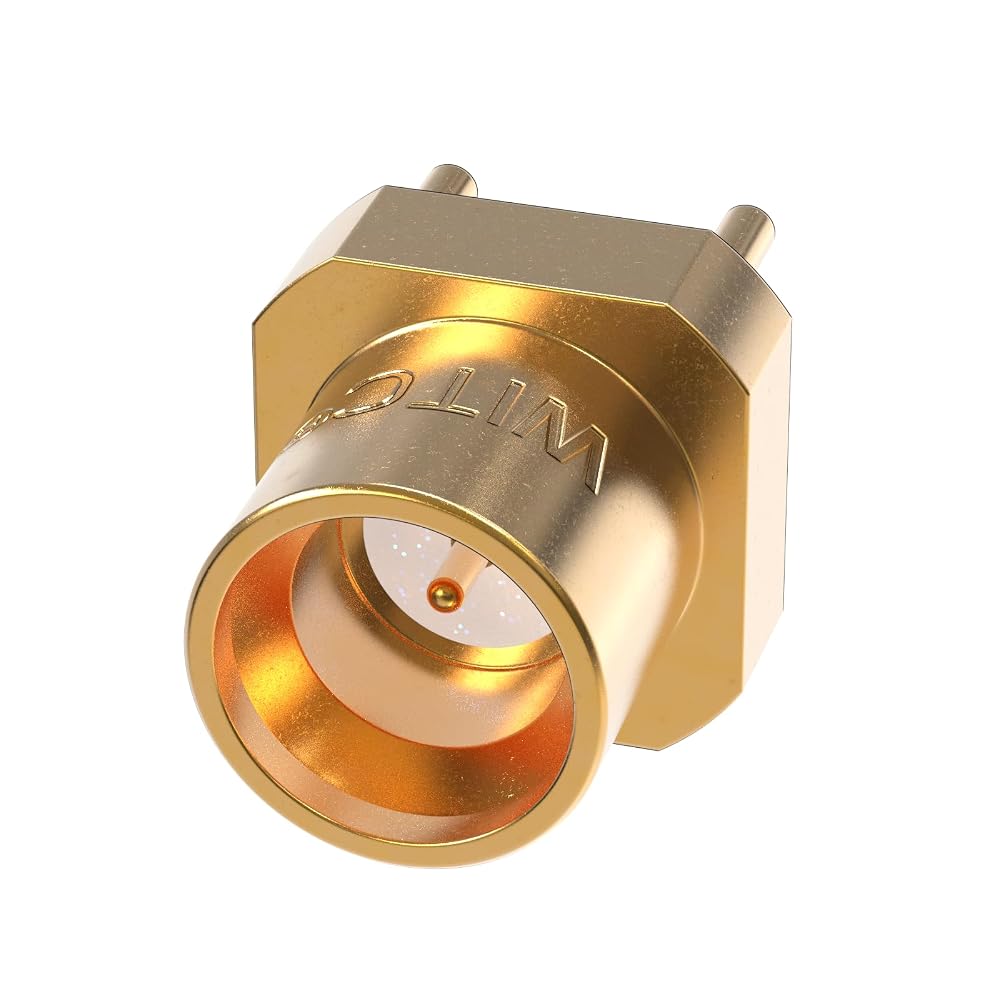

WITC RF Coax Connector GPPO (SSMP) Male DC to 65 GHz 50 Ohm Non Magnetic | PCB Soldered Gold Plated BeCu Straight Plug Low Return for Test & Measurement, Base station, Millimeter Wave System

KWD 10
Brand
WITC
– 1 +

Special Features

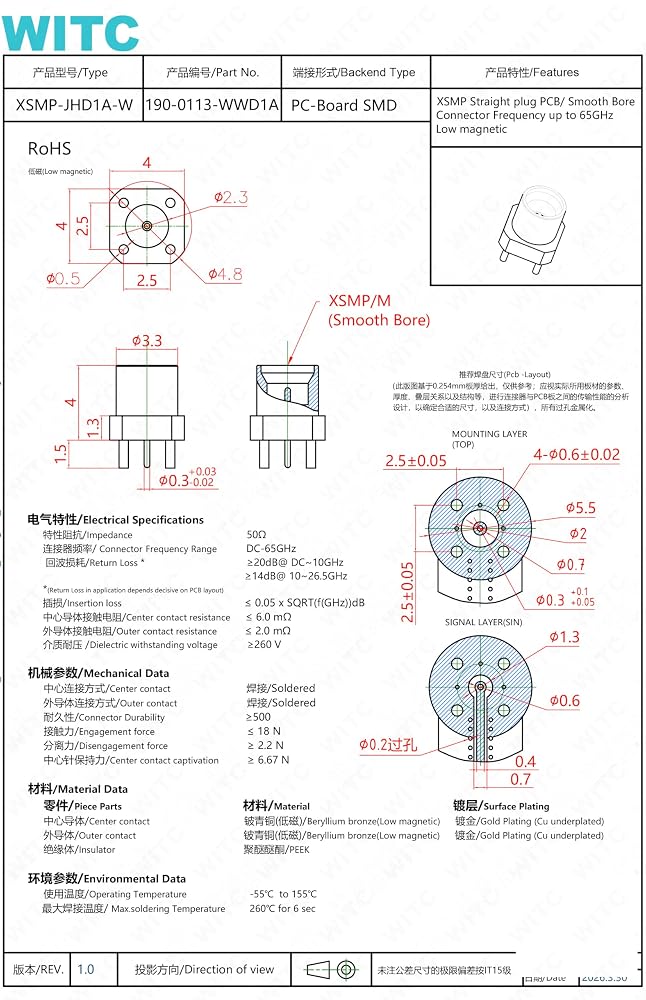

  • Adapter specifications:Impedance: 50Ω.Frequency range: DC - 65 GHz.Return loss:≥ 20dB @ DC~10GHz / ≥14dB @ 10~26.5GHz*(Return Loss in application depends decisive on PCB layout).Insertion loss: ≤0.05 x SQRT (f(GHz))dB.Center contact resistance: ≤ 6.0 mΩ.Outer contact resistance: ≤ 2.0 mΩ.Dielectric withstanding voltage: ≥ 260 V.
  • Mechanical data: Center contact: soldered. Outer contact: soldered. Connector durability: ≥ 500. Engagement force：≤ 18 N.Disengagement force：≥ 2.2 N.Center contact captivation：≥ 6.67 N.Operating temperature: -55℃ to 155℃.Max.soldering Temperature: 260℃ for 6 sec.
  • Core material:The material of the central conductor is beryllium bronze,and its surface plating is gold plated.The material of the outer conductor is beryllium bronze,and its surface plating is gold plated.The material of the insulator is PEEK.
  • Wide Application:Coax rf connector is precisely manufactured to rf industries like military & space,rf communication,test & measurement and industrial applications.

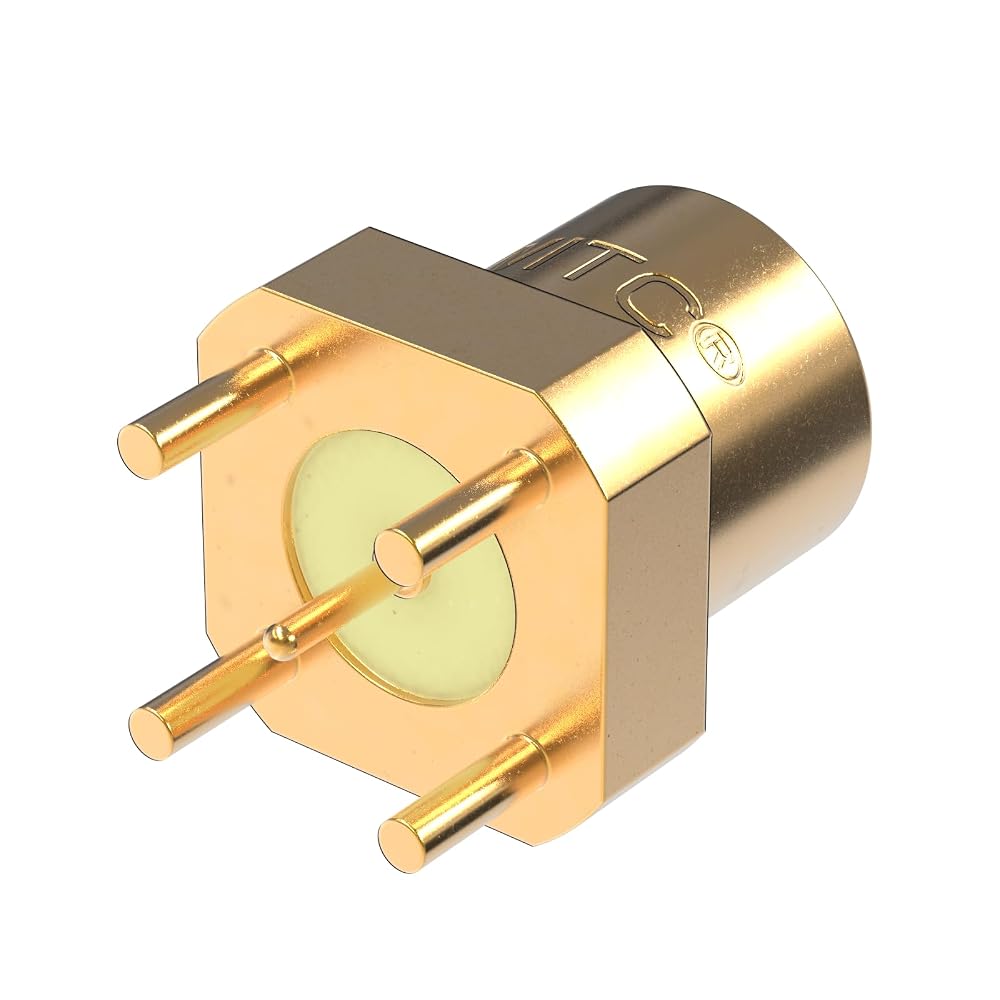

  • Mechanical & Structure Design:4-Pin Through-Hole Solder connector.Compact Mini-SMP structure design,excellent mechanical durability,secure connection,and long service life for harsh working environments.GPPO/SSMP male rf coaxial connector,operating frequency range DC to 65GHz,professional interconnect solution for high-frequency rf systems.

Description

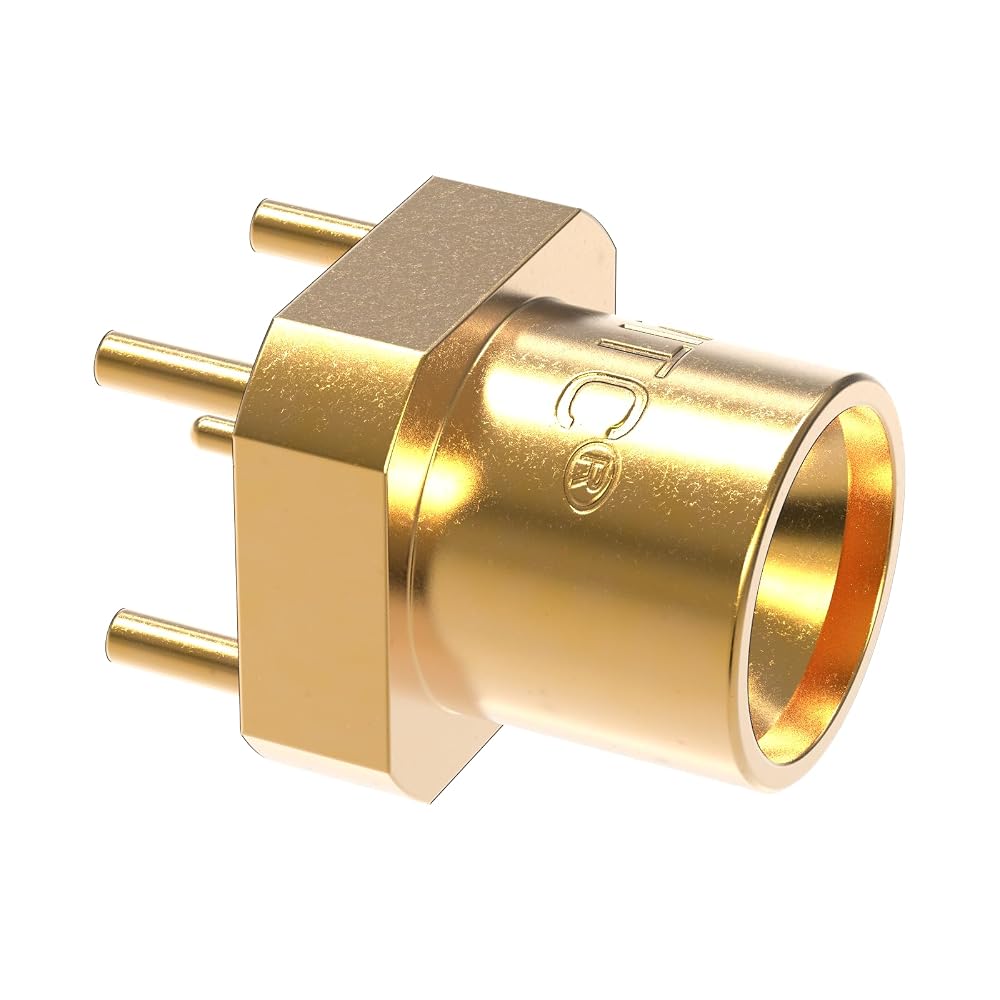

SSMP-JHD1A-W is a GPPO (Mini-SMP) male non latching connector PCB mount soldering coaxial connector that covers the frequency range from DC-65GHz.This coaxial connector has a beryllium bronze body and ensures an excellent microwave performance with low insertion loss and vswr/return loss.This millimeter-wave connector is precisely manufactured to RF industries like military & space,RF communication,test & measurement and industrial applications.
