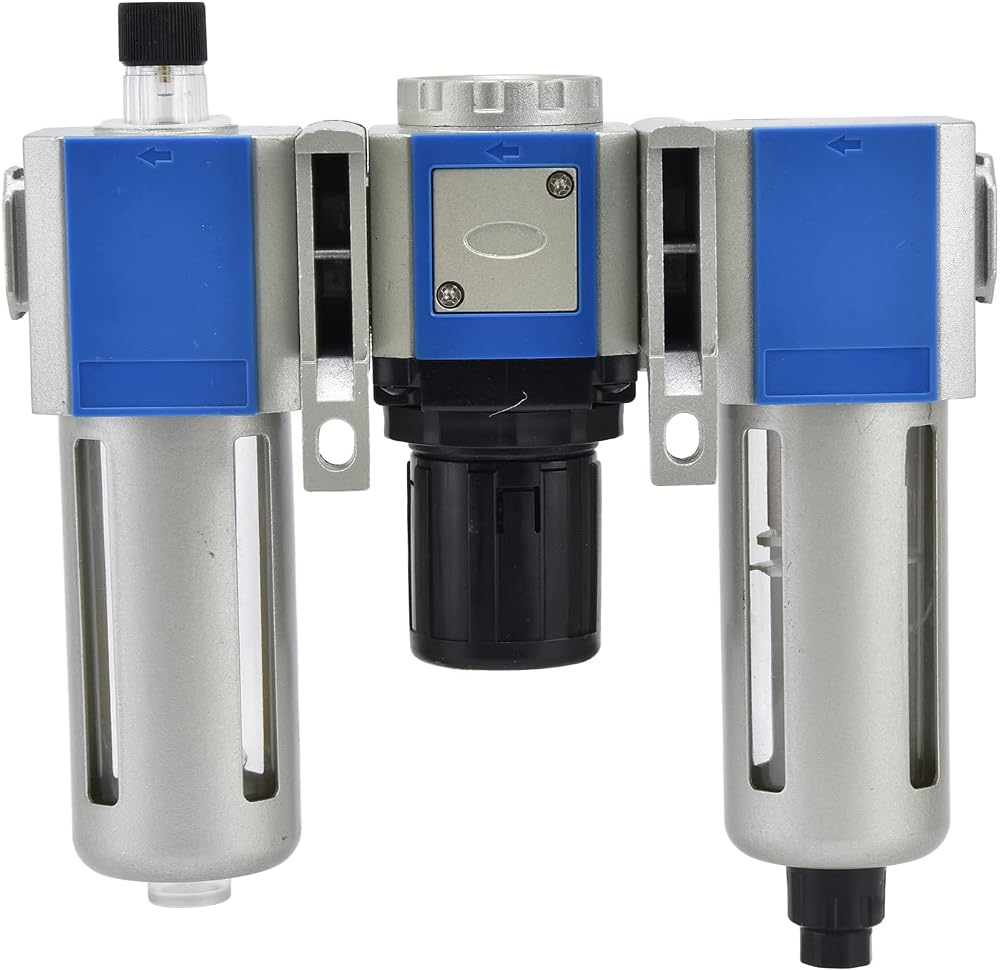

WALFRONT Air Compressor Filter Regulator Lubricator Compressed Lubricator Combo Air Compressor Oil Water Separator 40m 20-130 PSI for Pneumatic Systems (GC300-08/) in Kuwait

GC300-15/

KWD 20
Brand
Walfront
Weight
1.3 kg
SizeGC300-15/
– 1 +

Special Features

  • [EFFICIENT FILTRATION] Built to improve air quality in pneumatic systems this unit removes water droplets and fine particles with high efficiency helping protect downstream tools and equipment. Its precise filtering action supports cleaner airflow steadier performance and more dependable daily operation.
  • [STABLE OIL DELIVERY] The special drip nozzle and clearance seal design create negative pressure with low fogging flows so lubrication stays smooth and controlled. This helps maintain stable oil feed adjustment while reducing waste making the air system easier to tune for consistent performance.
  • [EASY OIL MONITORING] Designed with a clear scale position the lubricator allows you to estimate oil supply at a glance and make accurate adjustments when needed. It also supports refuelling without interrupting operation which helps save time during continuous work and maintenance routines.
  • [FLEXIBLE DRAIN OPTIONS] To match different working needs this combination unit offers three drainage modes including manual differential pressure and automatic drainage. This practical design makes removal more convenient and helps keep the filter cup cleaner for reliable long term use.
  • [QUICK INSTALLATION] Firm and fast connections make setup simple and efficient allowing installation to be completed within minutes. Made of durable aluminium alloy and designed for air compressor systems in workshops and pneumatic applications this unit combines strength convenience and dependable regulation in one compact assembly.

Description

Spec:
Item Type: Air Compressor flows Filter
Material: Aluminium Alloy
Working Medium Air
Tube Calibre PT1/4 PT3/8 PT1/2
Filter Elements Accuracy 40μm or 5μm
Operating Pressure Range Automatic and Differential Pressure Drainage Type: 0.15-0.9Mpa (20-130Ps)
Proof Pressure 1.5Mpa(215Psi)
Operating Temperature Range -20℃-70℃
Filter Cup Capacity 40CC
Oil Supply Cup Capacity 75CC
Recommended Lubricating Oil ISO VG32 or Equivalent Oil
Components Pressure Regulating Valve GR300-08 GR300-10 GR300-15
Atomized Lubricator GL300-08 GL300-10 GL300-15
Filter GF300-08 GF300-10 GF300-15

Package List:
1 x Air Compressor flows Filter

Note:
1. Keep the pipeline clean to prolong the service life;
2. The bowl body is made of polycarbonate resin, do not use solvents, such as diluent, etc. Use dish soap for cleaning.
