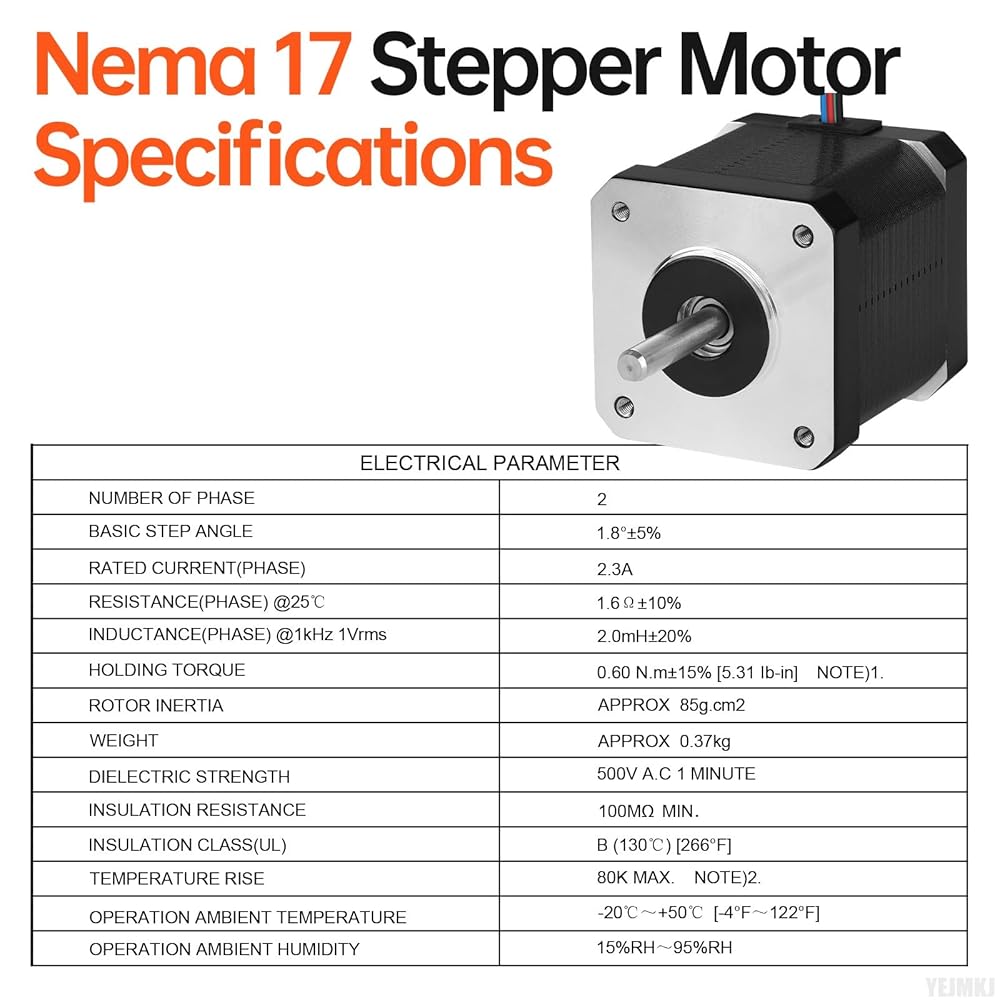

Parameters: Nema 17 Stepper Motor 2 Phase, Step angle 1.8dge (200 steps/rev), Holding torque 0.6Nm (84.97oz·in), Resistance 1.6Ω, Rated current 2.3A, Inductance 2.0mH±20%, Rotor inertia approx 85g.cm².

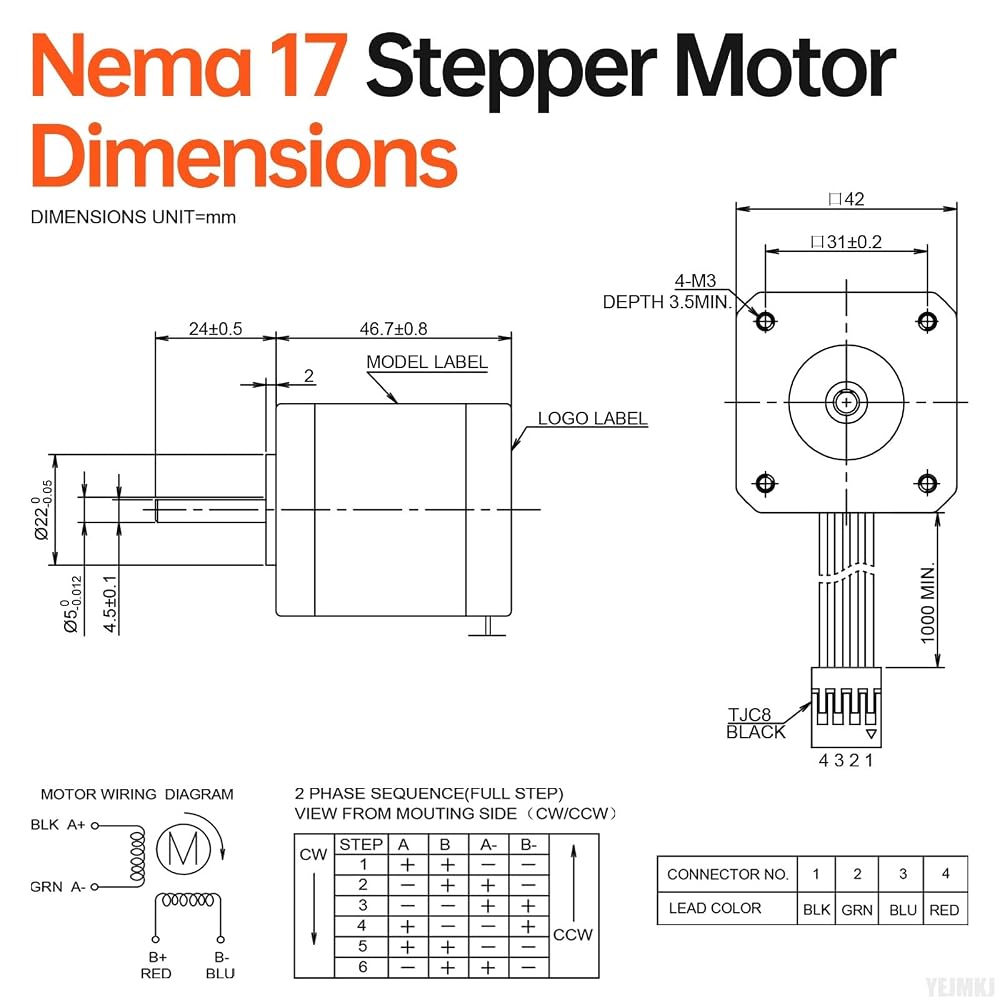

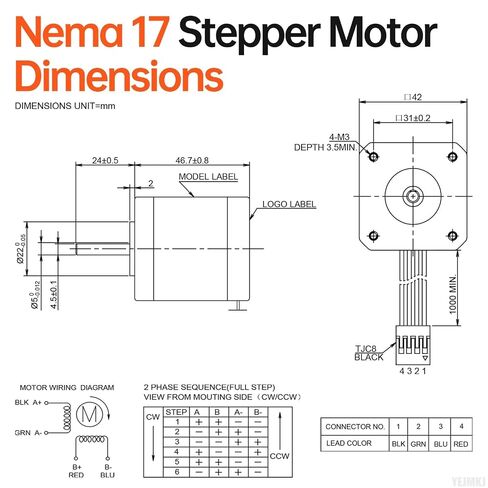

Dimensional data: Key dimensions for Nema 17 Stepper Motor include the following. Body size 42x42x46.7mm, (1.66x1.66x1.84in), Installation hole distance 31mm, Shaft length 24±0.5mm, Shaft diameter φ5mm, D-cut length 24mm, with Cable 1m, 4-Wire Black (A+) Green (A-) Red (B+) Blue (B-), Weight 368g.
Operational Safety: Operating safely and reliably, this Nema 17 Stepper motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient humidity 15%RH～95%RH; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Temperature rise 80K MAX.
Operational Safety: Operating safely and reliably, this Nema 17 Stepper motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient humidity 15%RH～95%RH; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Temperature rise 81K MAX.
Key Points to Remember: Increasing speed lowers torque, with the recommended range of 0–600 RPM. Lower current results in lower torque and temperature rise, while reduced voltage decreases torque (range: 12–24V DC). The 42mm Stepper Motor is widely used in 3D printers, DIY robots, CNC machines, and more. Its compact design and high torque make it ideal for tough applications.
