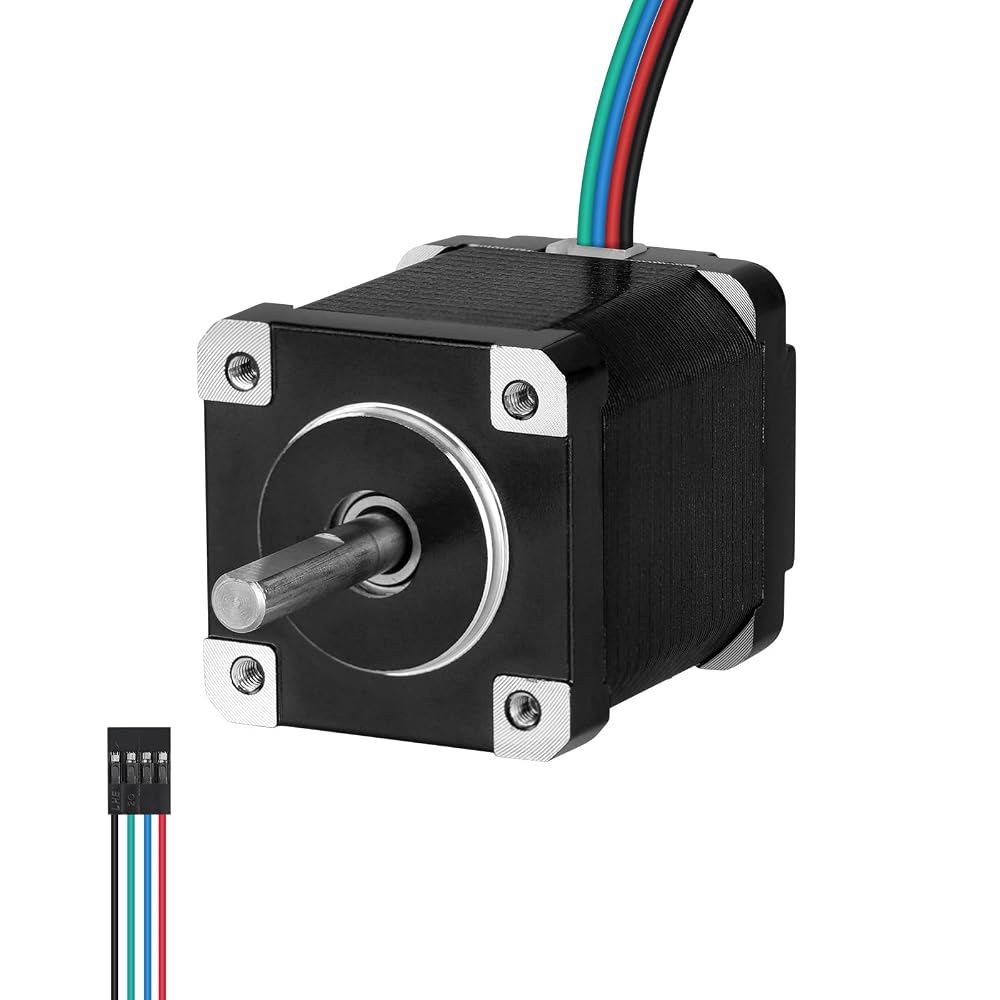

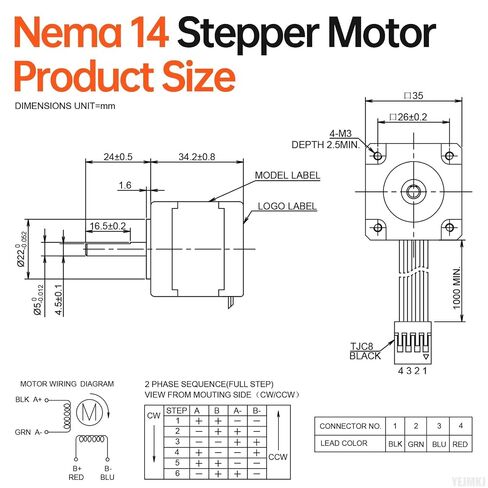

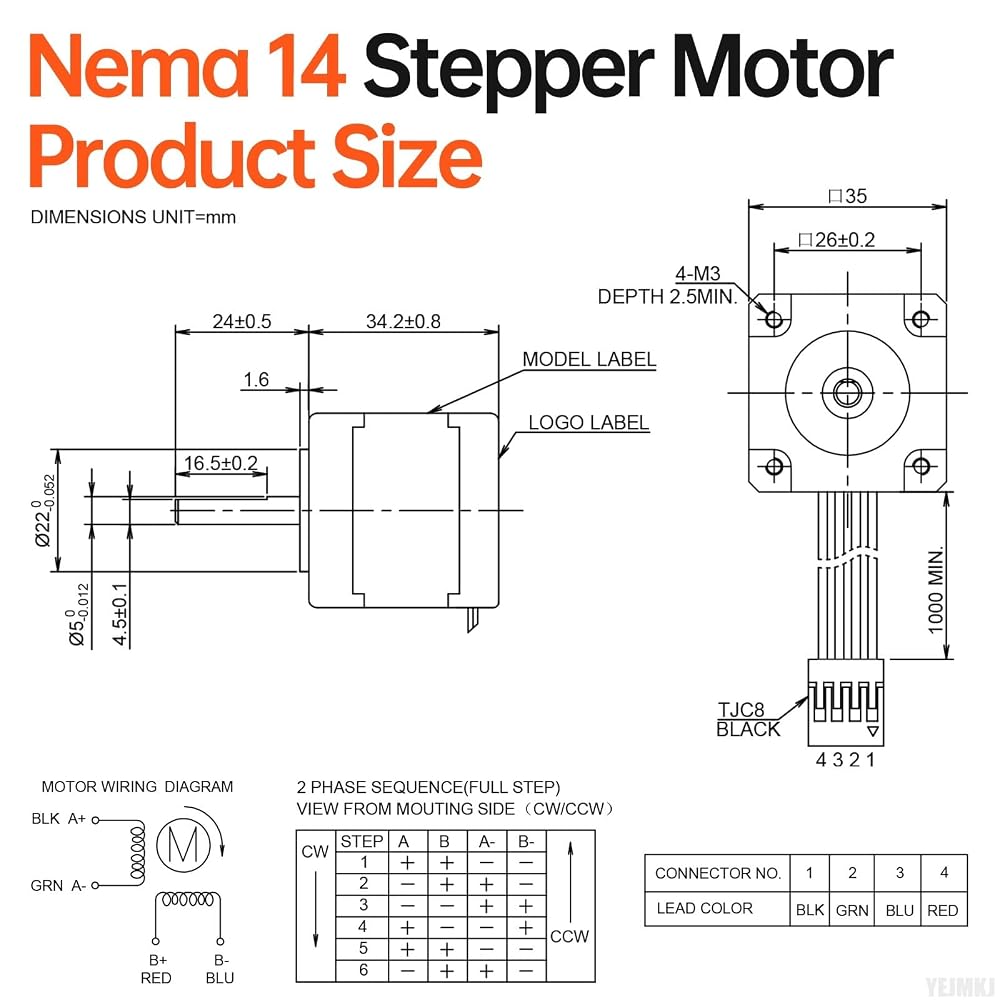

Dimensional data: Key dimensions for Nema 14 Stepper Motor include the following. Body size 35x35x34.2mm, (1.38x1.38x1.35in), Installation hole distance 26mm, Shaft length 24±0.5mm, Shaft diameter φ5mm, D-cut length 16.5mm, Cable 1m, 4-Wire Black (A+) Green (A-) Red (B+) Blue (B-), Weight 194g.

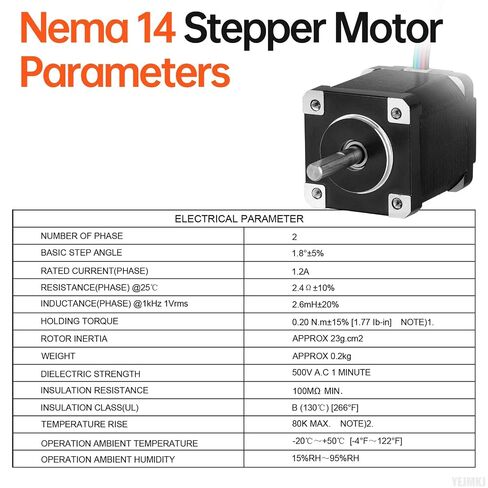

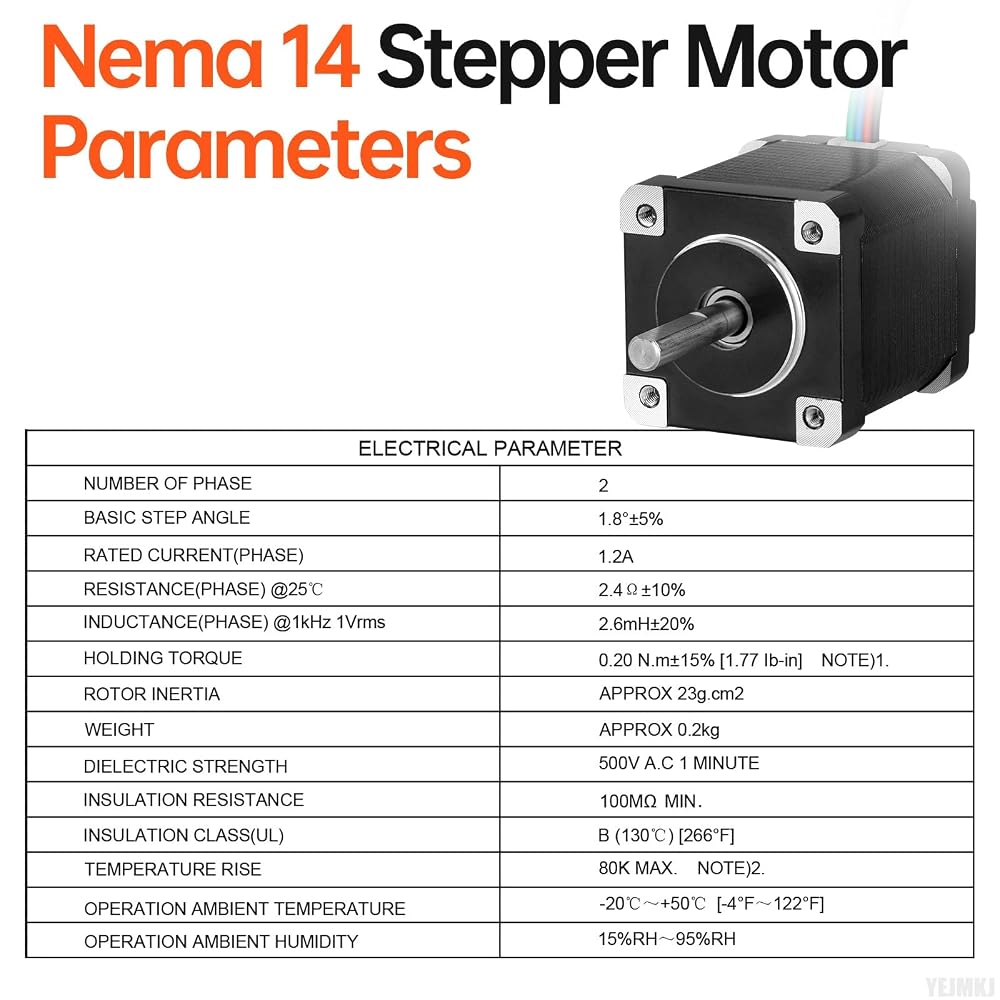

Characteristics: Nema 14 mini stepper motor 2 Phase, Step angle 1.8dge (200 steps/rev), Holding torque 20Ncm (28.32oz·in), Rated current 1.2A, Resistance 2.4Ω, Inductance 2.6mH±20%, Rotor inertia approx 23g.cm².
Operational Safety: The safe and reliable operation of this Nema14 Stepper Motor is supported by these key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH.
Operational Safety: The safe and reliable operation of this Nema14 Stepper Motor is supported by these key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～96%RH.

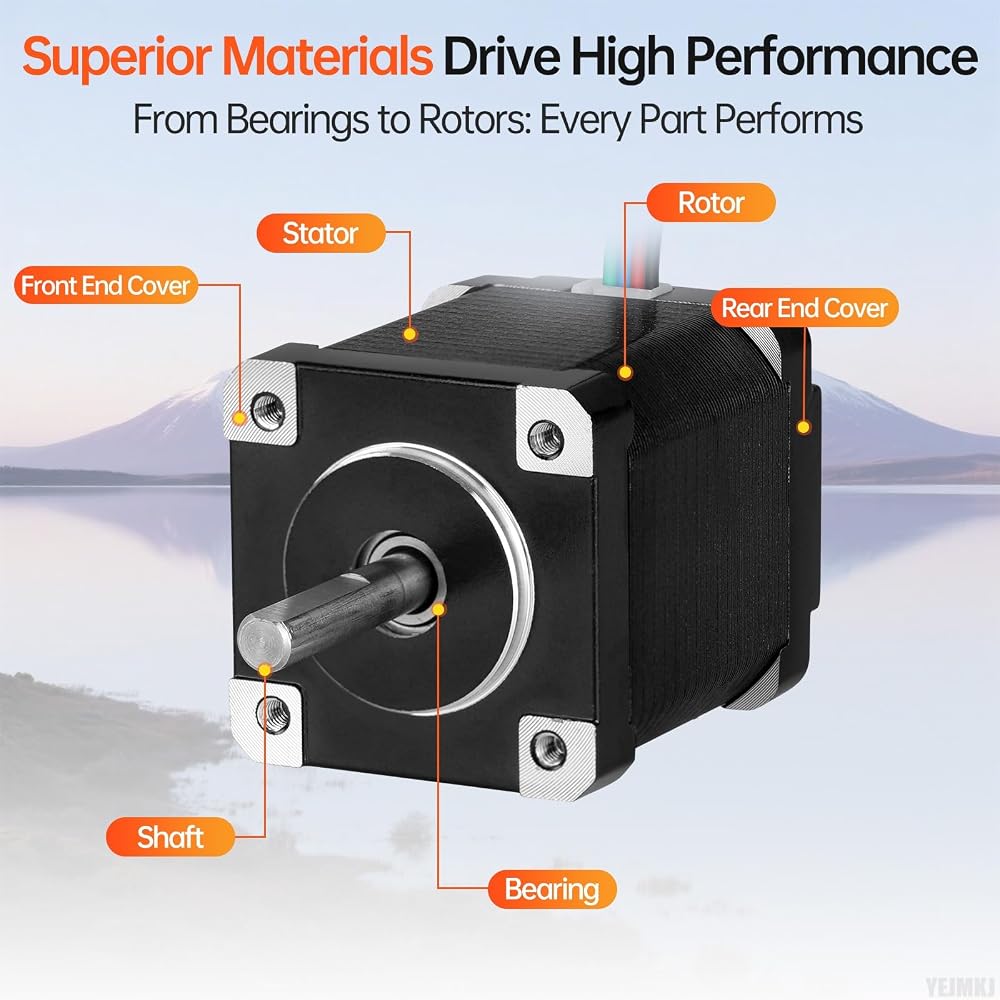

Precision-Built for Higher Output: Our upgraded Nema 14 Step Motor delivers up to 20% greater holding torque than typical models. Featuring enhanced steel cores and refined windings, it operates with noticeably reduced noise for smoother, less disruptive machine performance.
