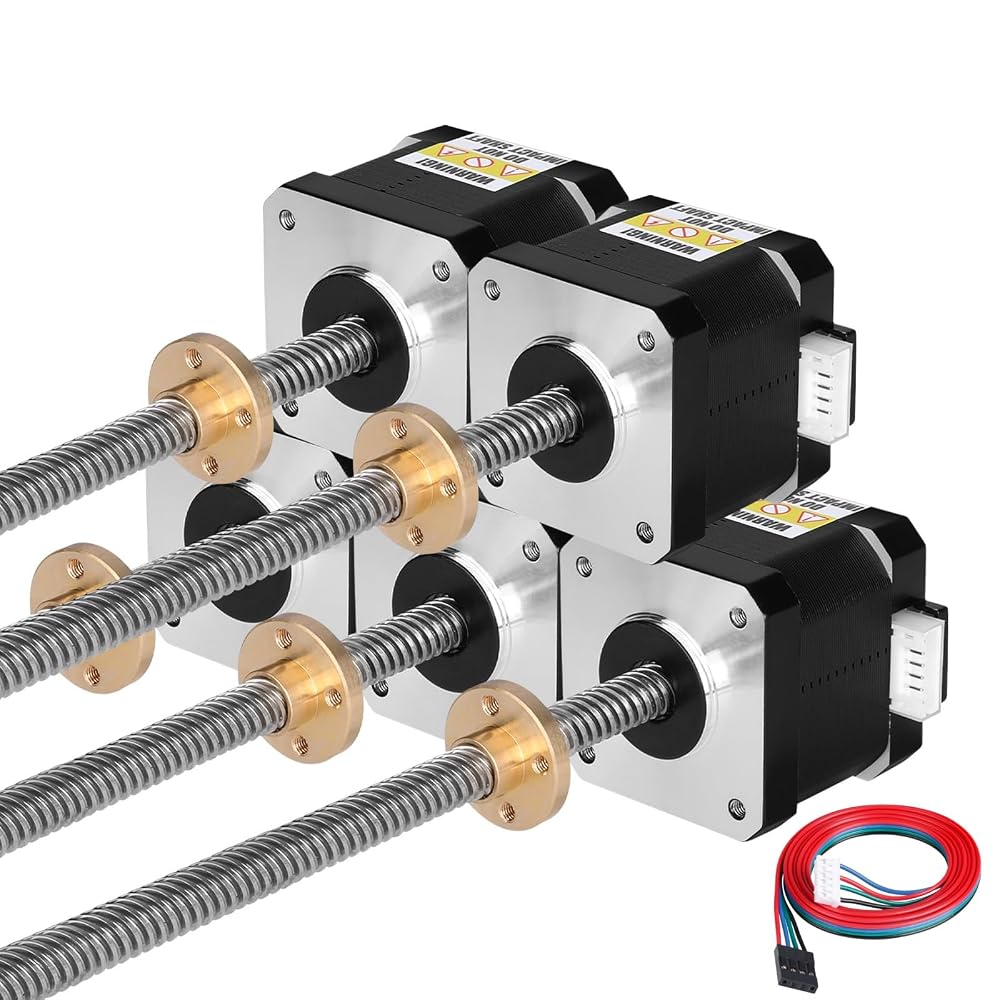

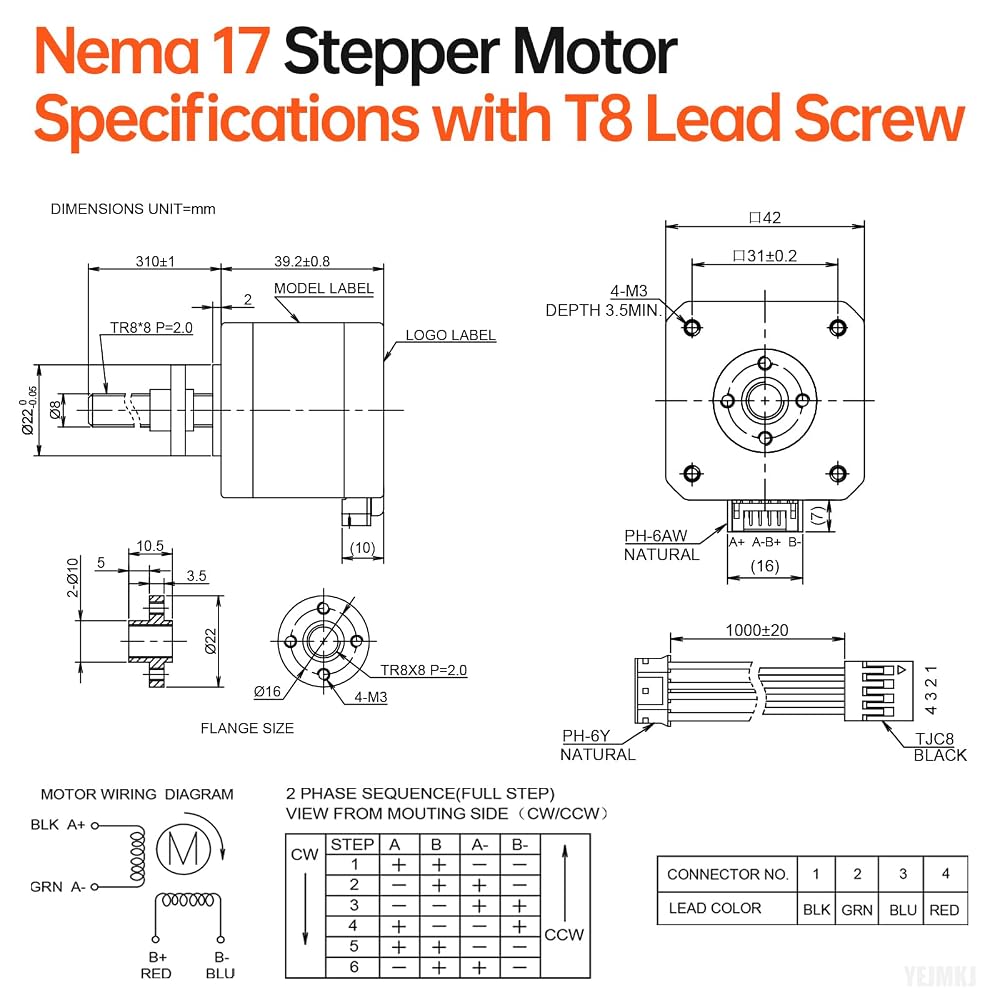

Dimensional data: Key dimensions for 5 Pack Nema 17 lead screw stepper motor include the following. Body size 42x42x39.2mm (1.66x1.66x1.55in), Lead screw TR8x8 310mm, Installation hole distance 31mm, 4-Lead, Black (A+) Green (A-) Red (B+) Blue (B-) , with Cable 1M, Weight 391g.

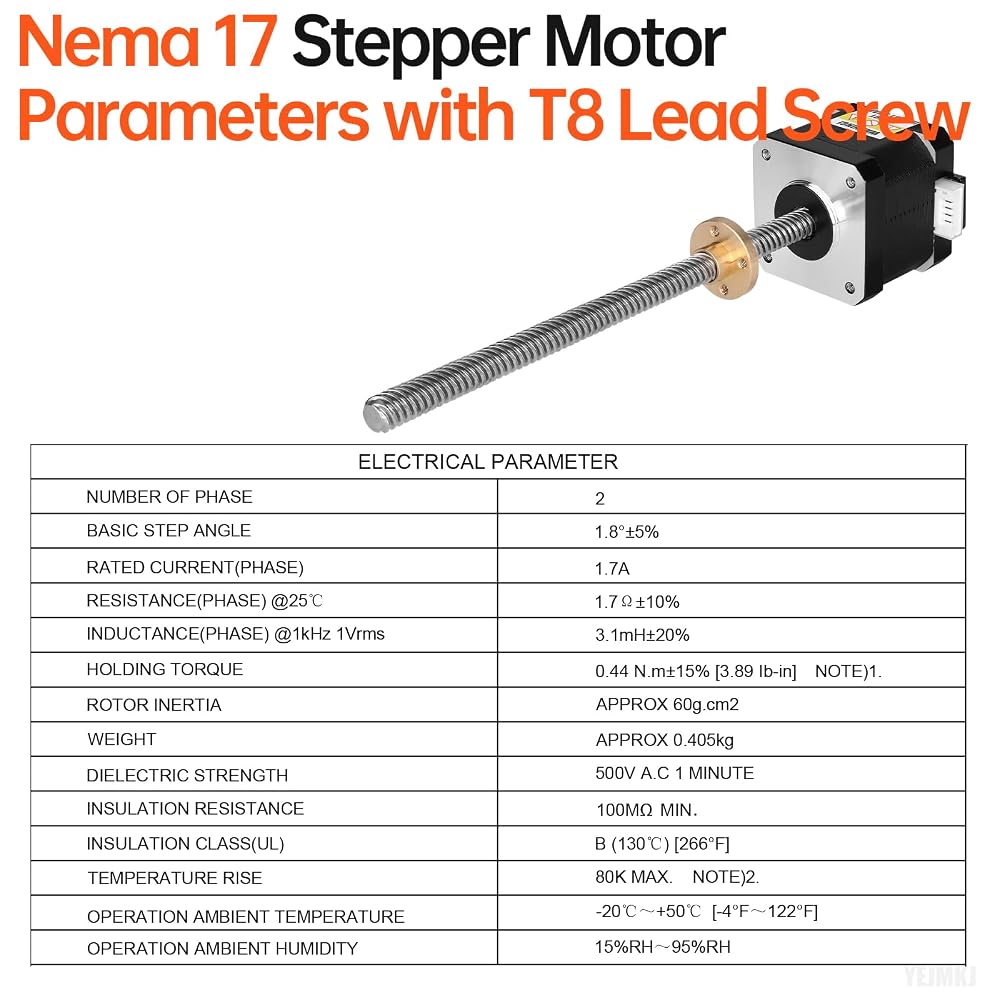

Specifications: Nema 17 linear actuator stepper motor with 310mm T8x8 lead screw, Step angle 1.8 Degree(200 steps/rev), 2 Phase Holding torque 0.44Nm (62.31oz·in), Resistance 1.7Ω, Rated current 1.7A, Inductance 3.1mH±20%, Rotor inertia approx 60g.cm².
Safety Specifications: This Nema17 lead screw linear Step motor with flange nut ensures safe and reliable performance, and here are its key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Temperature rise 80K MAX; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH.
Safety Specifications: This Nema17 lead screw linear Step motor with flange nut ensures safe and reliable performance, and here are its key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Temperature rise 80K MAX; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～96%RH.

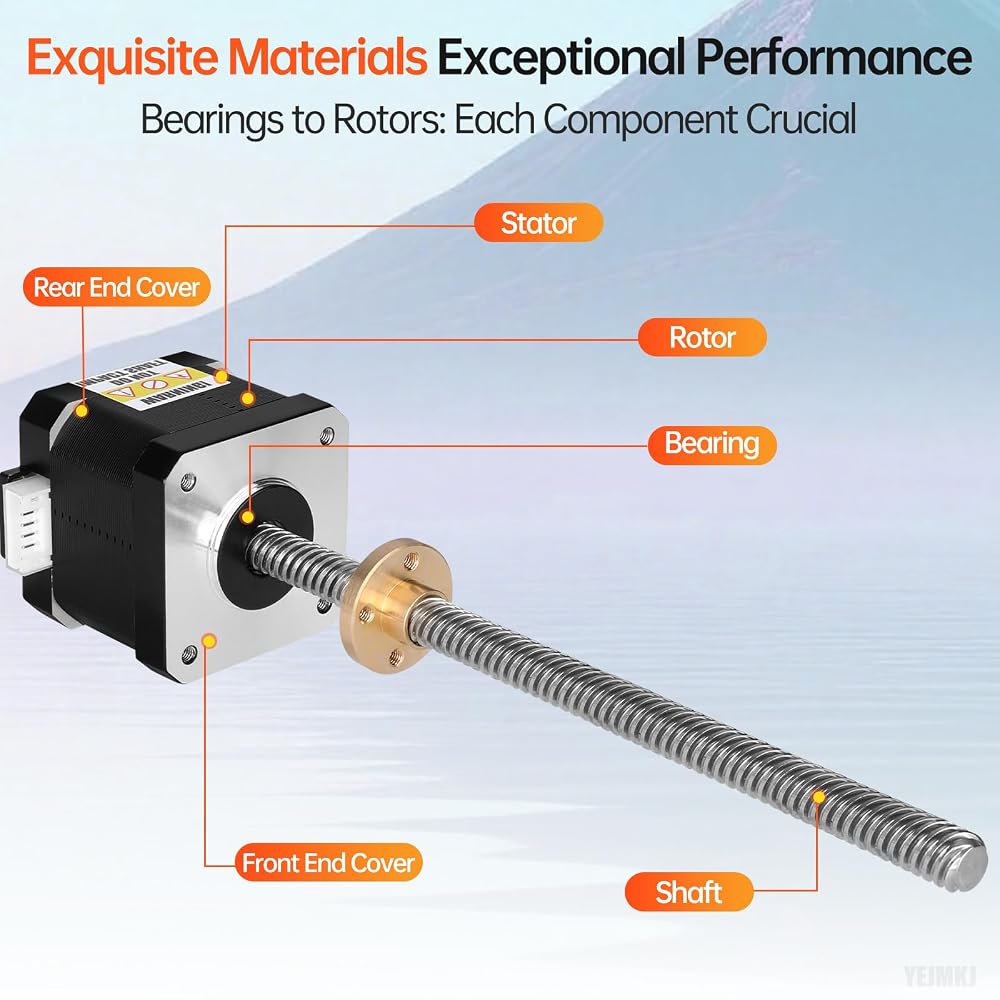

Advanced Steel Construction: Generate up to 20% stronger holding torque compared to standard units with this Nema 17 Stepper Motor with T8 Lead Screw. Its robust steel core construction and specialized winding design minimize operational noise, enabling quieter and more efficient machinery.
