Application:
Harmonic rejection
transmitters/receivers
Anti-aliasing for A/D converter
30M Low pass filter:
Module parameters:
Operating frequency: DC-30MHz;
Insertion loss: 2.0dB@30MHz;
Input-output standing wave: 1.5;
Input and output impedance: 50 ohms;
Power capacity: 2W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 54.5*13.5*8mm;
Note: Modules have no input or output;
100M low pass filter:
Module parameters:
Operating frequency: DC-100MHz;
Insertion loss: 1.3dB@30MHz;
Input-output standing wave: 1.5;
Input and output impedance: 50 ohms;
Power capacity: 2W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 54.5*13.5*8mm;
Note: Modules have no input or output;
200M low-pass filter:
Module parameters:
Operating frequency: DC-200MHz;
Insertion loss: 1.0dB@30MHz;
Input-output standing wave: 1.5;
Input and output impedance: 50 ohms;
Power capacity: 2W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 54.5*13.5*8mm;
Note: Modules have no input or output;

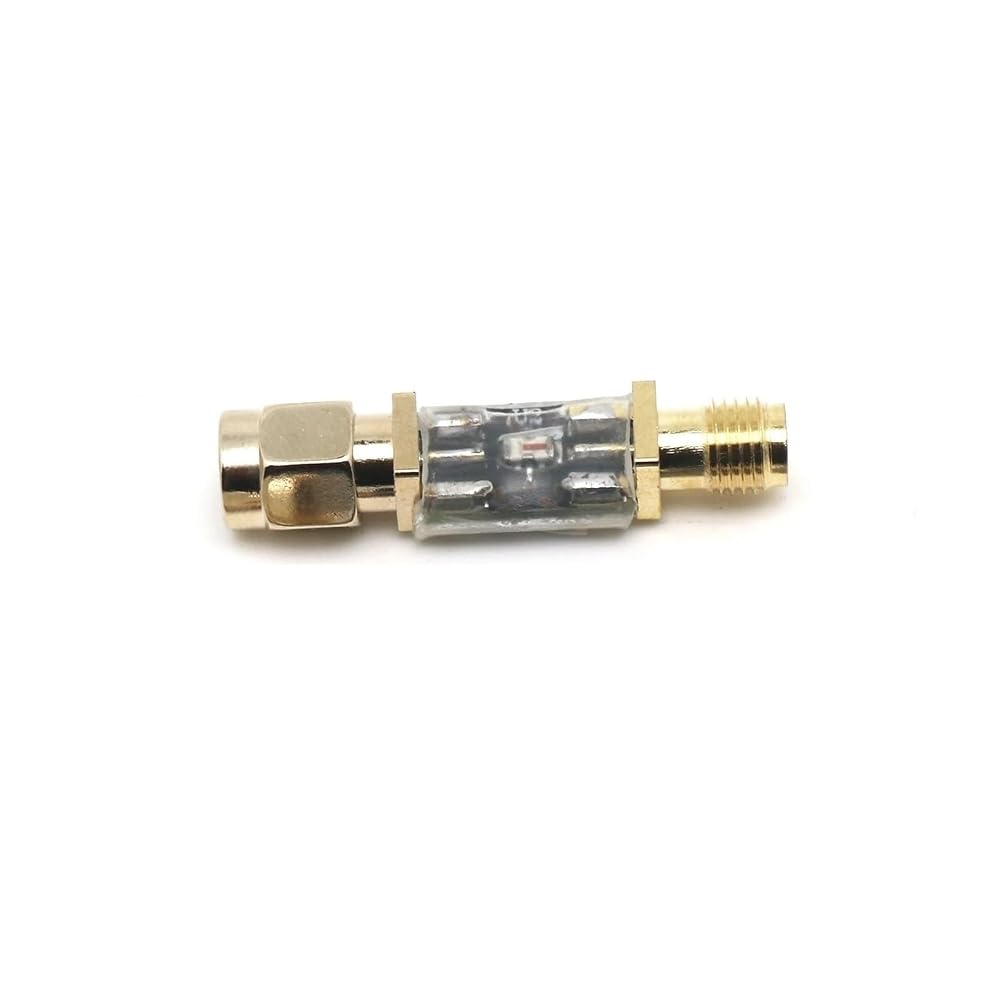

500M low pass filter:
Module parameters:
Operating frequency: DC-500MHz;
Insertion loss: 1.0dB@500MHz;
Input-output standing wave: 1.2;
Input and output impedance: 50 ohms;
Power capacity: 8W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
800M low-pass filter:
Module parameters:
Operating frequency: DC-800MHz;
Insertion loss: 1.0dB@800MHz;
Input-output standing wave: 1.2;
Input and output impedance: 50 ohms;
Power capacity: 8W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
1000M low-pass filter:
Module parameters:
Operating frequency: DC-1000MHz;
Insertion loss: 1.0dB@1000MHz;
Input-output standing wave: 1.3;
Input and output impedance: 50 ohms;
Power capacity: 10W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
1200M low-pass filter:
Module parameters:
Operating frequency: DC-1200MHz;
Insertion loss: 1.0dB@1200MHz;
Input-output standing wave: 1.2;
Input and output impedance: 50 ohms;
Power capacity: 10W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
1500M Low pass filter:
Module parameters:
Operating frequency: DC-1500MHz;
Insertion loss: 1.0dB@1500MHz;
Input-output standing wave: 1.2;
Input and output impedance: 50 ohms;
Power capacity: 10W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
2000M low-pass filter:
Module parameters:
Operating frequency: DC-2000MHz;
Insertion loss: 1.5dB@2000MHz;
Input-output standing wave: 1.3;
Input and output impedance: 50 ohms;
Power capacity: 10W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
2.4G low-pass filter:
Module parameters:
Operating frequency: DC-2400MHz;
Insertion loss: 1.7dB@2400MHz;
Input-output standing wave: 1.3;
Input and output impedance: 50 ohms;
Power capacity: 10W;
Out-of-band suppression: See test curve;
Input/output interface: SMA-M,SMA-F;
Module size: 35*8.5*8mm;
Note: The module has no input and output, and can be used in two cascades to improve out-of-band signal suppression;
