433M bandpass filter
Center frequency: 433 MHz
1dB bandwidth: 20 MHz
Out-of-band suppression: > 60dB@120 MHz
> 45dB@700 MHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
868M bandpass filter
Center frequency: 868 MHz
1dB bandwidth: 10 MHz
Out-of-band suppression: > 42dB@700MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
915M bandpass filter
Center frequency: 915 MHz
1dB bandwidth: 30 MHz
Out-of-band suppression: > 58dB@600MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
1090M bandpass filter
Center frequency: 1090 MHz
1dB bandwidth: 10 MHz
Out-of-band suppression: > 65dB@915MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)

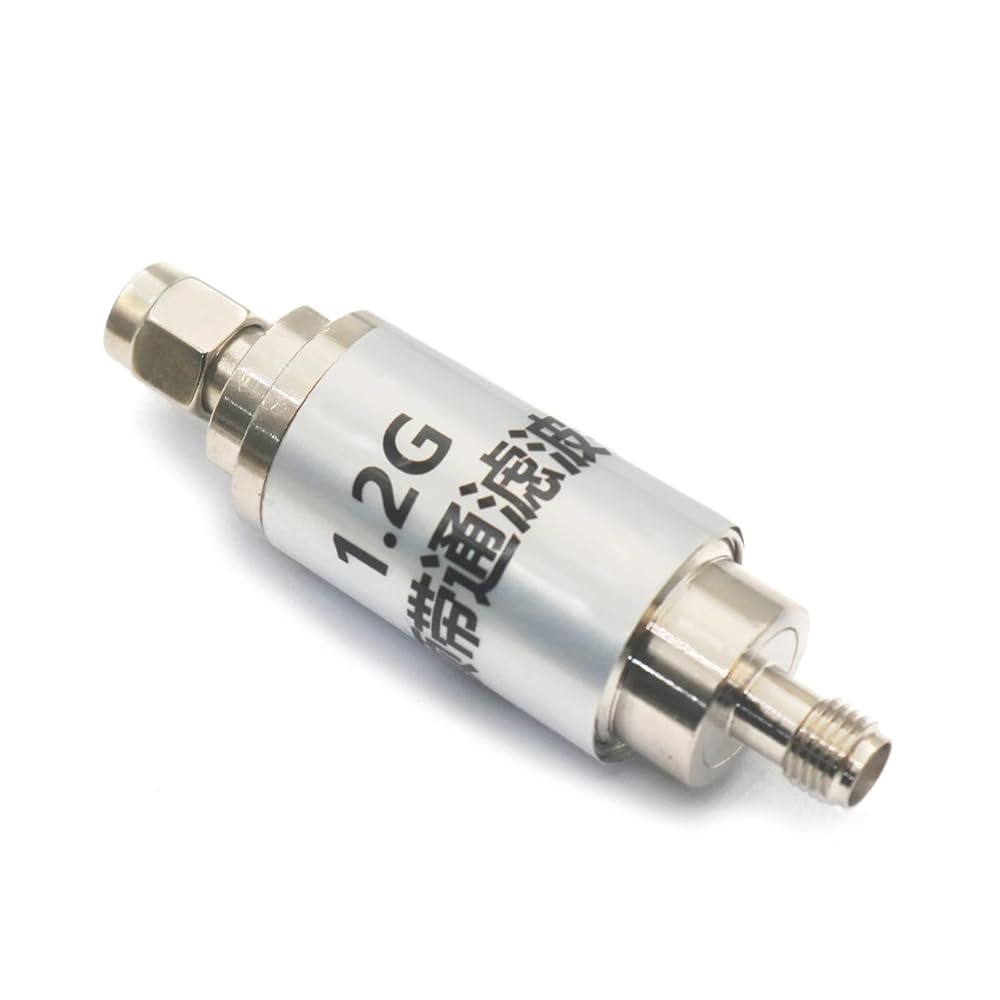

1.2G bandpass filter
Center frequency: 1200 MHz
1dB bandwidth: 40 MHz
Out-of-band suppression: > 45dB@900MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
1575M bandpass filter
Center frequency: 1575 MHz
1dB bandwidth: 20 MHz
Out-of-band suppression: > [email protected]
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
2.4G bandpass filter
Center frequency: 2450 MHz
1dB bandwidth: 100 MHz
Out-of-band suppression: > [email protected]
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
5.8G bandpass filter
Center frequency: 5800 MHz
1dB pass band: 600 MHz
Out-of-band suppression: > [email protected]
> 45dB@8GHz
Impedance: 50 Ohms
Maximum load power: 10 W (40 dBm)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
